Description

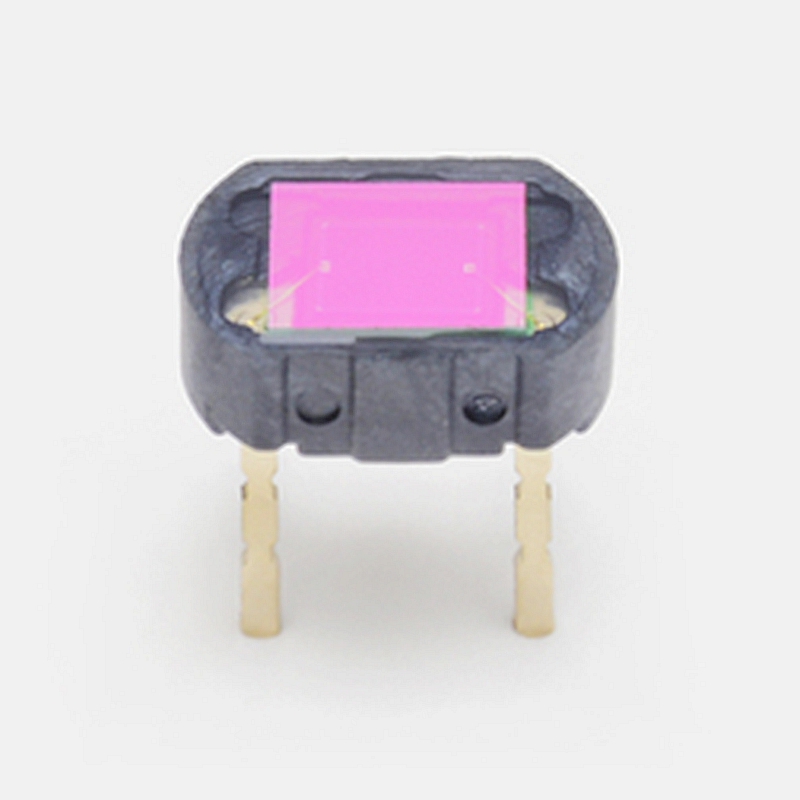

Hamamatsu S16839-01MS Photodiode with sensitivity close to spectral luminous efficiency
The S16839-01MS is a Si photodiode having a spectral response characteristic that is more similar to the human eye sensitivity (spectral luminous efficiency) than our visible-compensated sensors (S16838-01MS, etc.).
Features
– Spectral response analogous to CIE spectral luminous efficiency
Spectral response range: 480 to 660 nm
Peak sensitivity wavelength: 550 nm
– Premolded package for reliability
– Photosensitive area: 2.4 × 2.8 mm
– High-speed response: 0.5 µs (VR=0 V, RL=1 kΩ)
Specifications
| Photosensitive area | 2.8 × 2.4 mm |
|---|---|
| Package | Plastic |
| Package category | With filter |
| Cooling | Non-cooled |
| Spectral response range | 480 to 660 nm |
| Peak sensitivity wavelength (typ.) | 550 nm |
| Photosensitivity (typ.) | 0.38 A/W |
| Dark current (max.) | 20 pA |
| Rise time (typ.) | 0.5 μs |
| Terminal capacitance (typ.) | 200 pF |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
