Description

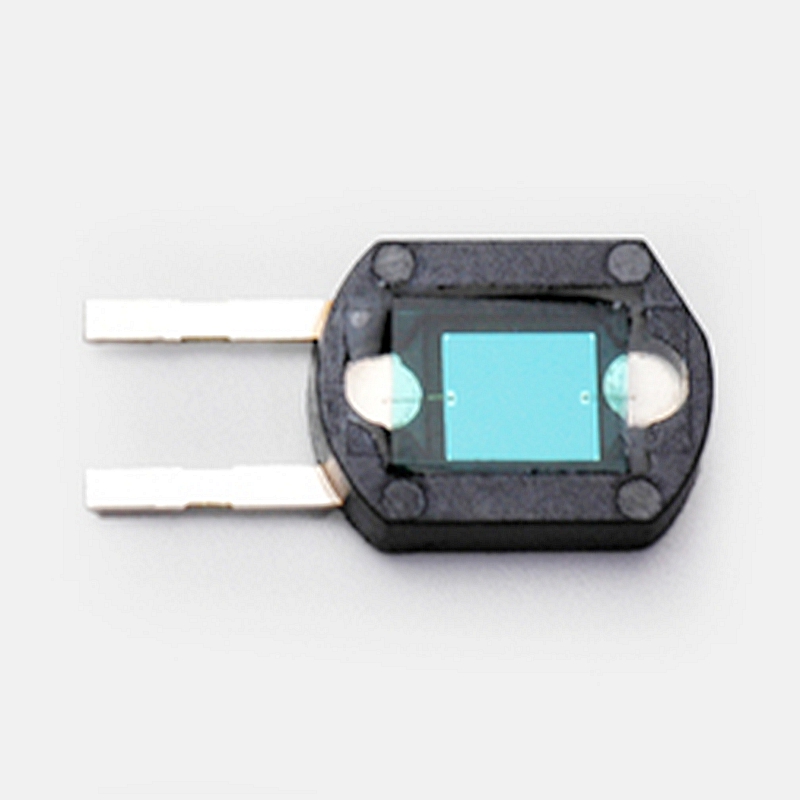

Hamamatsu S1787-04 Plastic package photodiode with low dark current
S1787-04 is a family of plastic package photodiodes that offer low dark current. Plastic package used is light-impervious, so no stray light can reach the photosensitive area from the side or backside. This allows reliable optical measurements in the visible to near infrared range, over a wide dynamic range from low light levels to high light levels.
Features
– For visible range
Specifications
| Photosensitive area | 2.8 × 2.4 mm |
|---|---|
| Package | Plastic |
| Package category | With filter |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 10 V |
| Spectral response range | 320 to 730 nm |
| Peak sensitivity wavelength (typ.) | 560 nm |
| Photosensitivity (typ.) | 0.3 A/W |
| Dark current (max.) | 10 pA |
| Rise time (typ.) | 2.5 μs |
| Terminal capacitance (typ.) | 700 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=1V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
