Description

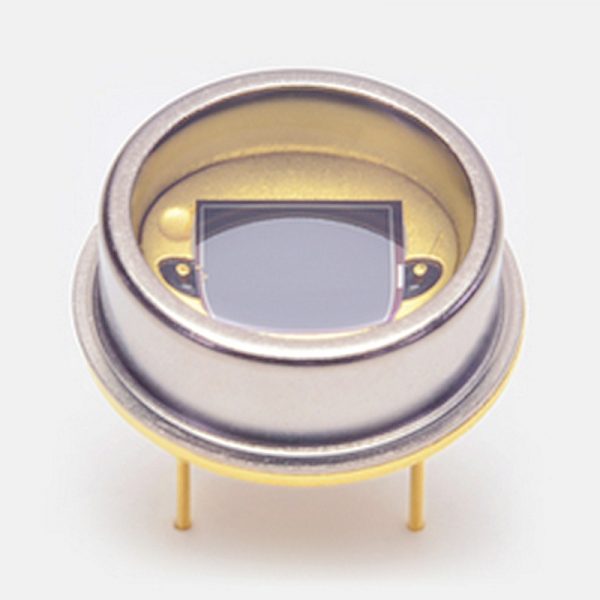

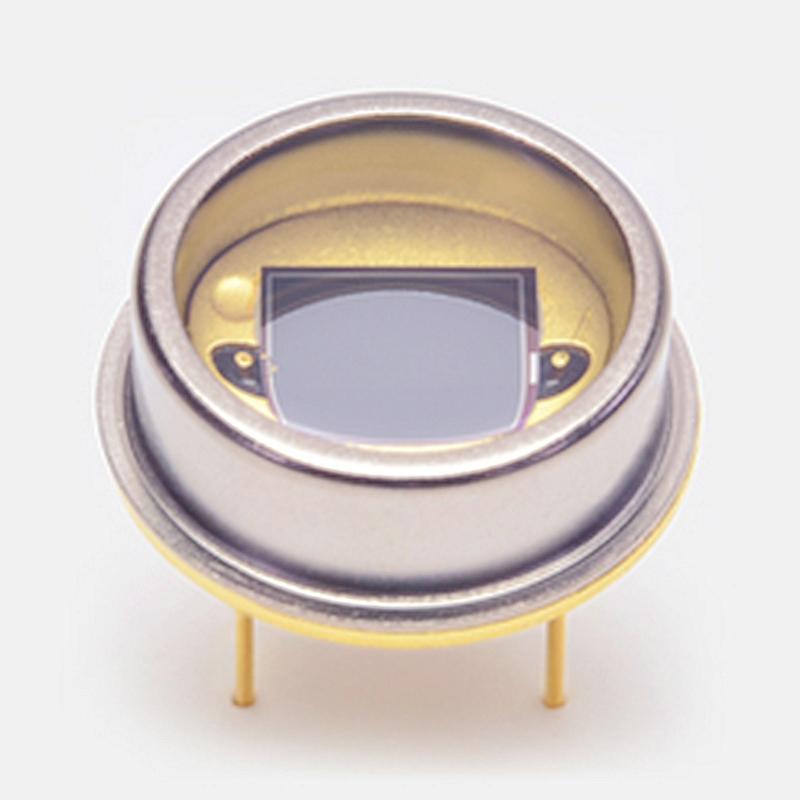

Hamamatsu S2386-8K For visible to near IR, general-purpose photometry
Features
– High sensitivity in visible to near infrared range
– Low dark current
– High reliability
– Superior linearity
Specifications
| Photosensitive area | 5.8 × 5.8 mm |
|---|---|
| Package | Metal |
| Package category | TO-8 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.6 A/W |
| Dark current (max.) | 50 pA |
| Rise time (typ.) | 10 μs |
| Terminal capacitance (typ.) | 4300 pF |
| Noise equivalent power (typ.) | 2.1×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted |
