Description

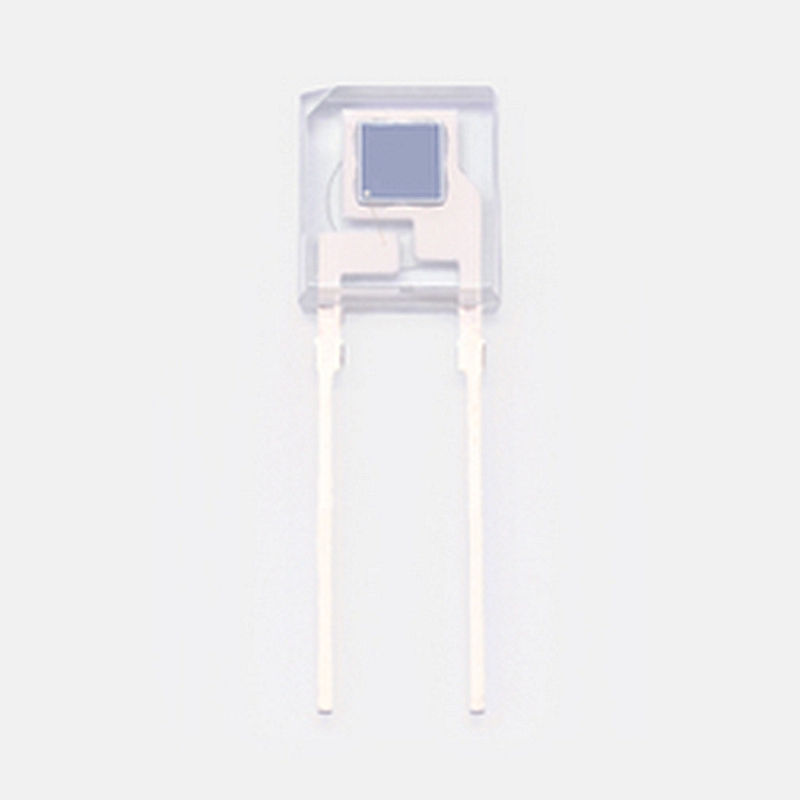

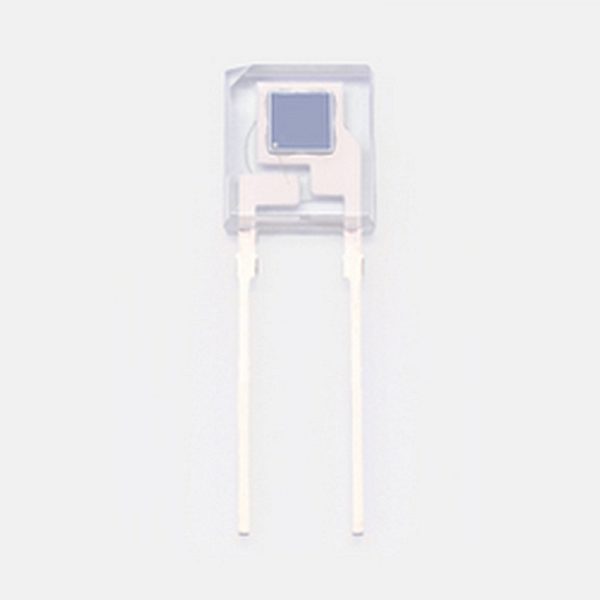

Hamamatsu S2506-02 Plastic SIP (single in-line package)
S2506-02 is a Si PIN photodiode with large active areas, molded into a clear plastic SIP for detecting visible to near infrared range.
Features
– Visible to near infrared range
– Plastic package: 7 × 7.8 mm
– Photosensitive area size: 2.77 × 2.77 mm
Specifications
| Photosensitive area | 2.77 × 2.77 mm |
|---|---|
| Package | Plastic |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.48 A/W |
| Dark current (max.) | 10000 pA |
| Cutoff frequency (typ.) | 25 MHz |
| Terminal capacitance (typ.) | 15 pF |
| Noise equivalent power (typ.) | 1.0×10-14 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, Noise equivalent power: VR=12 V, unless otherwise noted |
