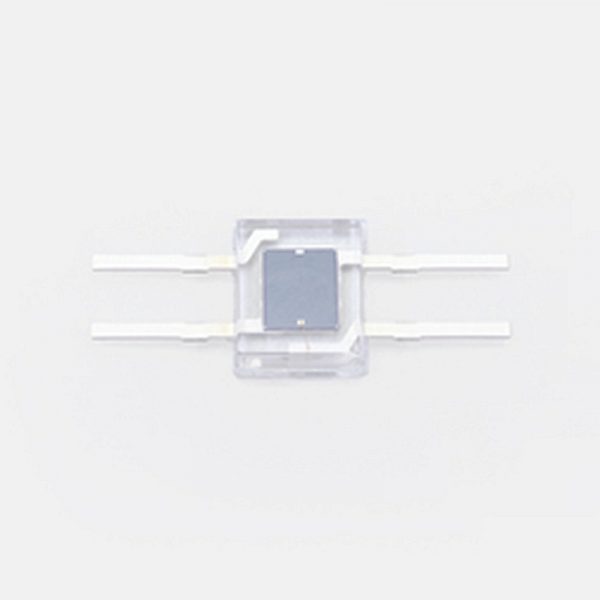

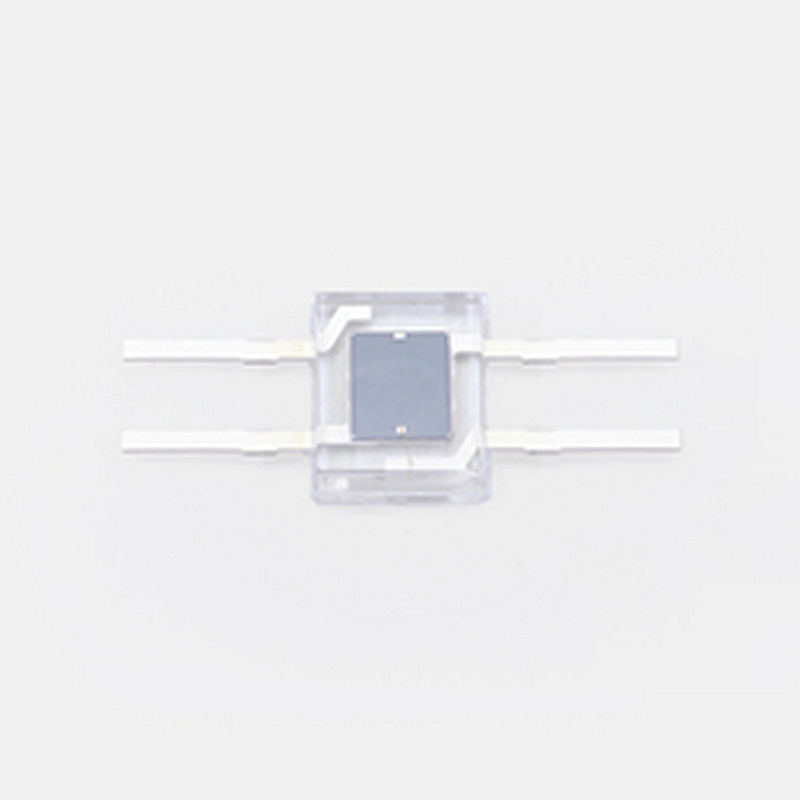

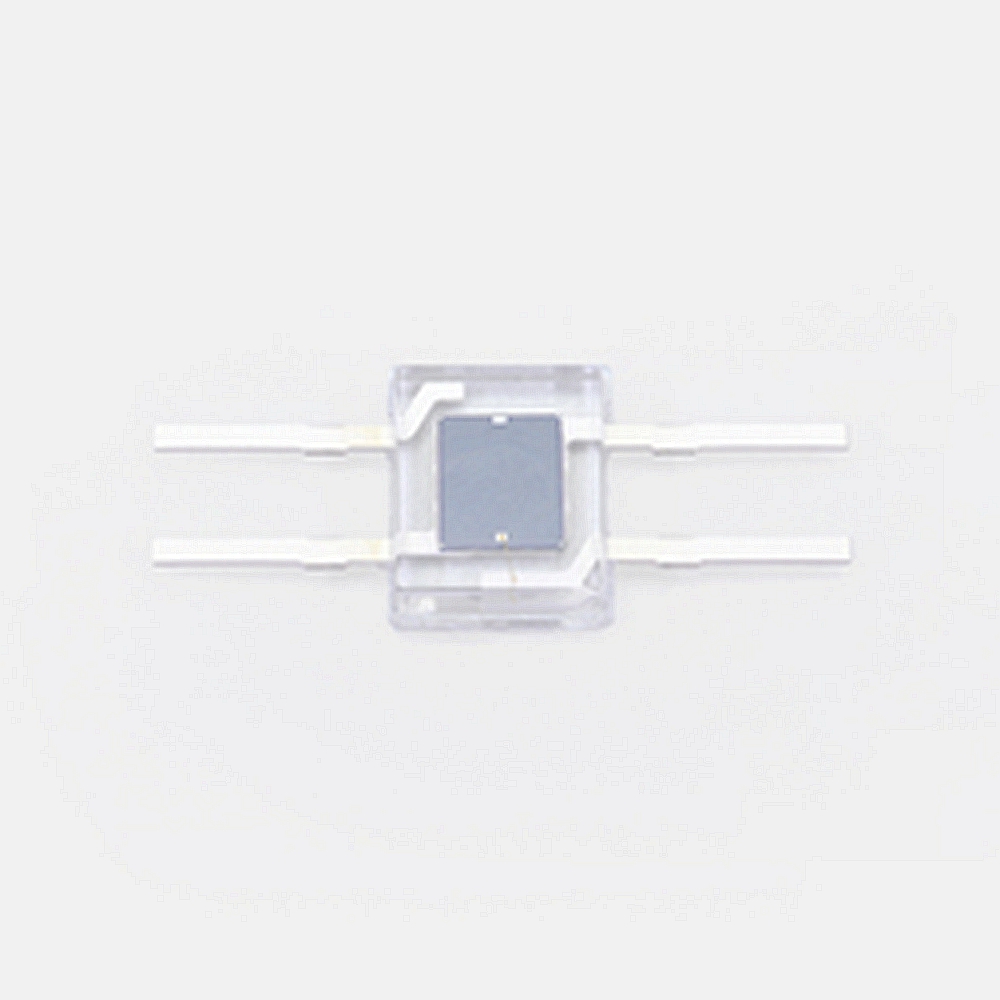

Hamamatsu S2833-01 Si Photodiode molded into clear plastic package

$199.00

Hamamatsu S2833-01 Si Photodiode molded into clear plastic package Datasheet

Hamamatsu S2833-01 Si Photodiode molded into clear plastic package

Description

Hamamatsu S2833-01 Si Photodiode molded into clear plastic package



Features
– Visible to near IR range



Specifications

Photosensitive area 2.4 × 2.8 mm
Package Plastic
Package category
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.58 A/W
Dark current (max.) 10 pA
Rise time (typ.) 2.5 μs
Terminal capacitance (typ.) 700 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
