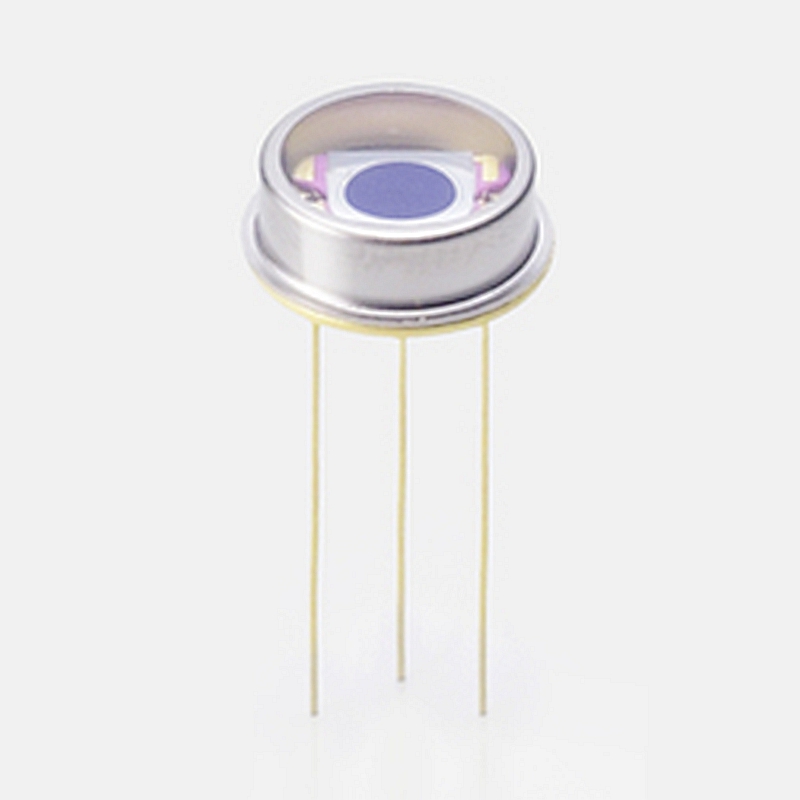

Hamamatsu S3071 Large area, high-speed Si PIN photodiode
The S3071 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 40 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.
Features
– Photosensitive area size: φ5.0 mm
– Cutoff frequency: 40 MHz (VR=24 V)
– High reliability: TO-8 metal package
Specifications
Photosensitive area | φ5.0 mm |
---|---|
Package | Metal |
Package category | TO-8 |
Cooling | Non-cooled |
Reverse voltage (max.) | 50 V |
Spectral response range | 320 to 1060 nm |
Peak sensitivity wavelength (typ.) | 920 nm |
Photosensitivity (typ.) | 0.54 A/W |
Dark current (max.) | 10000 pA |
Cutoff frequency (typ.) | 40 MHz |
Terminal capacitance (typ.) | 18 pF |
Noise equivalent power (typ.) | 2.1×10-14 W/Hz1/2 |
Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=24 V, Cutoff frequency: VR=24 V, Terminal capacitance: VR=24 V, f=1 MHz, λ=λp, Noise equivalent power: VR=24 V, λ=λp, unless otherwise noted |
