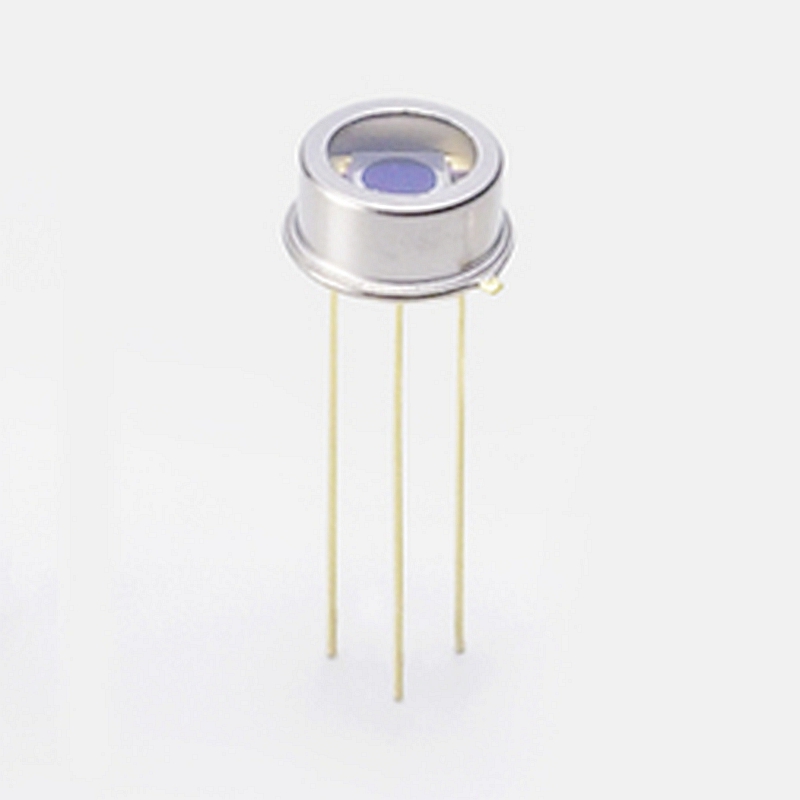

Hamamatsu S3072 Large area, high-speed Si PIN photodiode
The S3072 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 45 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.
Features
– Photosensitive area size: φ3.0 mm
– Cutoff frequency: 45 MHz (VR=24 V)
– High reliability: TO-5 metal package
Specifications
| Photosensitive area | φ3.0 mm |
|---|---|
| Package | Metal |
| Package category | TO-5 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 50 V |
| Spectral response range | 320 to 1060 nm |
| Peak sensitivity wavelength (typ.) | 920 nm |
| Photosensitivity (typ.) | 0.54 A/W |
| Dark current (max.) | 10000 pA |
| Cutoff frequency (typ.) | 45 MHz |
| Terminal capacitance (typ.) | 7 pF |
| Noise equivalent power (typ.) | 1.6×10-14 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=24 V, Cutoff frequency: VR=24 V, Terminal capacitance: VR=24 V, f=1 MHz, λ=λp, Noise equivalent power: VR=24 V, λ=λp, unless otherwise noted |
