Description

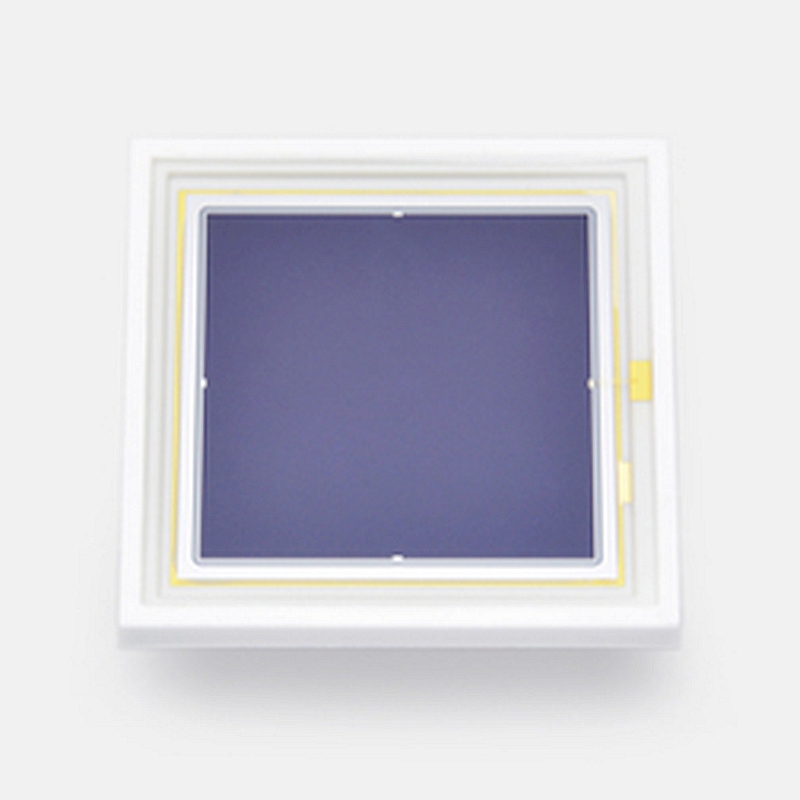

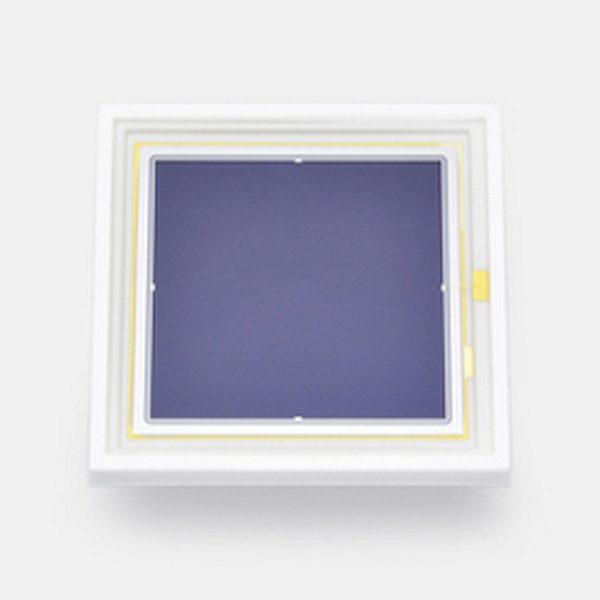

Hamamatsu S3204-08 Large photosensitive area Si PIN photodiodes
Features
– Sensitivity matching with BGO and CsI(TI) scintillators
– Low capacitance
– High-speed response
– High stability
– Good energy resolution
Specifications
| Photosensitive area | 18 × 18 mm |
|---|---|
| Package | Ceramic |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 100 V |
| Spectral response range | 340 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.66 A/W |
| Dark current (max.) | 20000 pA |
| Cutoff frequency (typ.) | 20 MHz |
| Terminal capacitance (typ.) | 130 pF |
| Noise equivalent power (typ.) | 6.6×10-14 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=70 V, Cutoff frequency: VR=70 V, Terminal capacitance: VR=70 V, f=1 MHz, Noise equivalent power: VR=70 V |
