Description

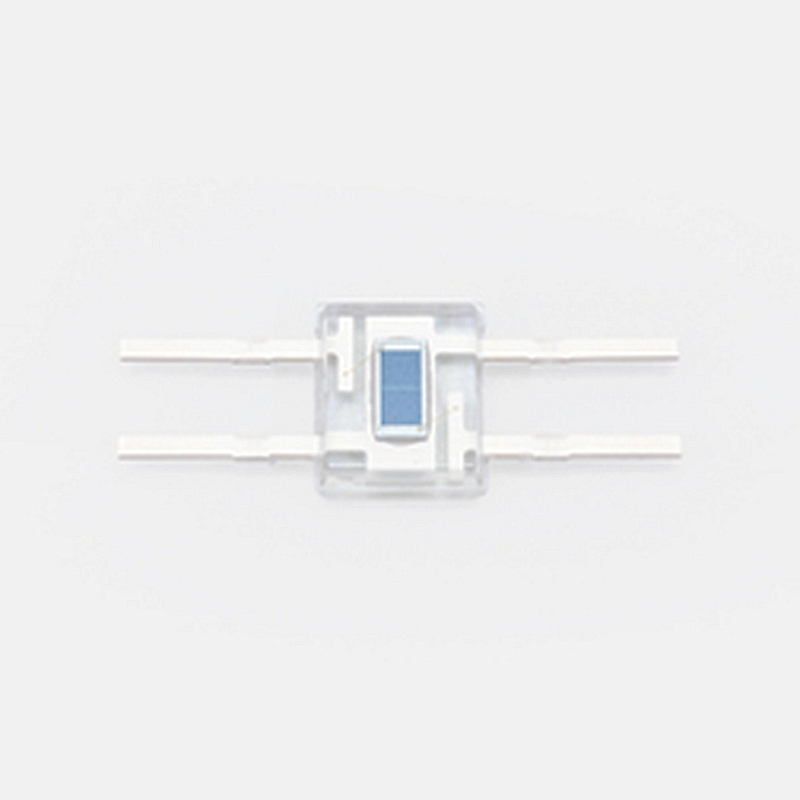

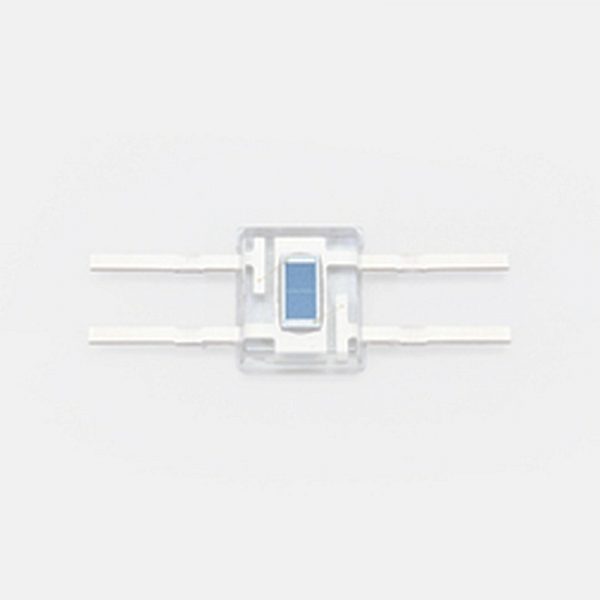

Hamamatsu S4204 Dual-element, plastic package photodiode
The S4204 is a dual-element Si PIN photodiode molded into plastic packages. Having high sensitivity and low noise, this photodiode has low crosstalk between the elements. Custom devices (with different element shapes, number of elements, characteristics and packages) are also available to meet you specific needs. Please feel free to contact our sales office.
Features
-High sensitivity
-Uniform element sensitivity
-Low crosstalk
-Low noise
Specifications
| Number of elements | 2-segment |
|---|---|
| Package | Plastic |
| Cooling | Non-cooled |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.65 A/W |
| Dark current (max.) | 1000 pA |
| Cutoff frequency (typ.) | 30 MHz |
| Terminal capacitance (typ.) | 3 pF |
| Measurement condition | Typ. Ta=25 ℃, per one element (except for photosensitive area), unless otherwise noted, Photosensitivity: λ=960 nm |
