Description

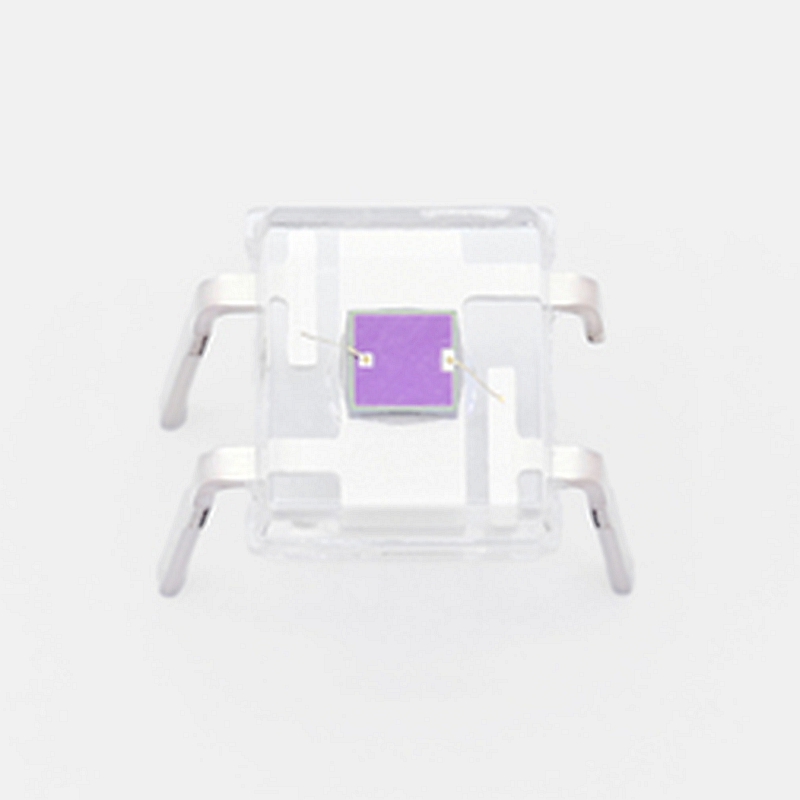

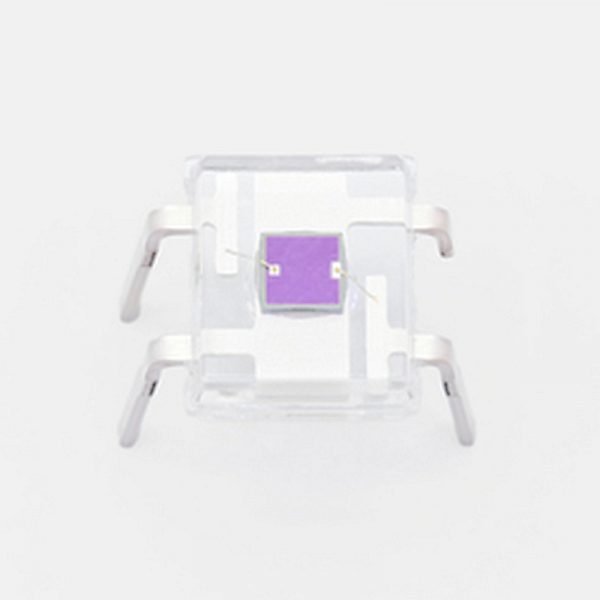

Hamamatsu S5627-01 Photodiode molded into clear plastic package
Features
– Visible range (Filterless type)
Specifications
| Photosensitive area | 1.3 × 1.3 mm |
|---|---|
| Package | Plastic |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 10 V |
| Spectral response range | 320 to 840 nm |
| Peak sensitivity wavelength (typ.) | 540 nm |
| Photosensitivity (typ.) | 0.3 A/W |
| Dark current (max.) | 50 pA |
| Rise time (typ.) | 2 μs |
| Terminal capacitance (typ.) | 700 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
