Description

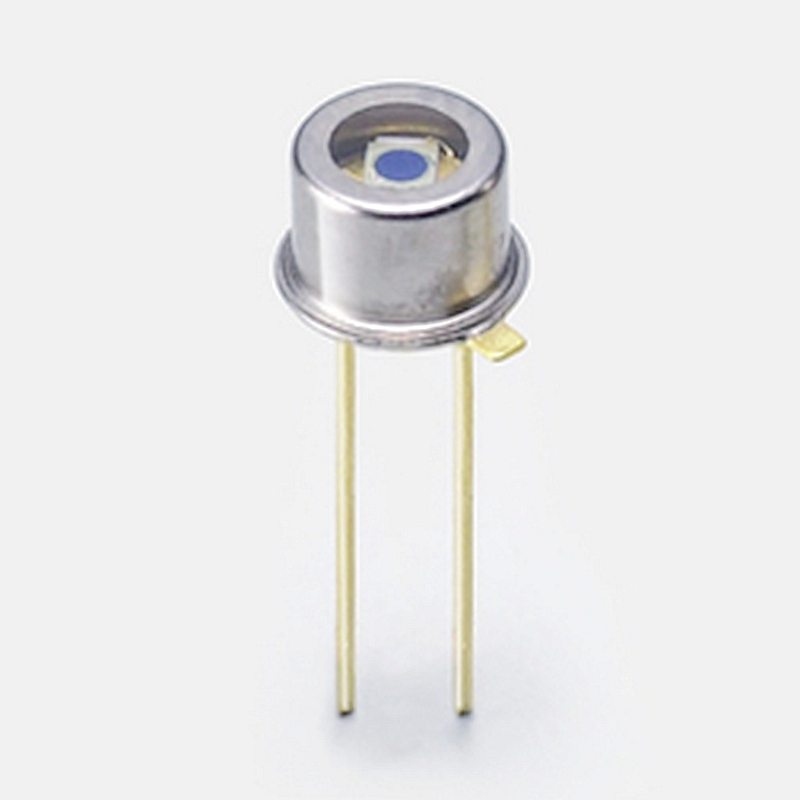

Hamamatsu S5821 High performance, high reliability Si PIN photodiode
The S5821 is a high-speed Si PIN photodiode having high sensitivity over a wide spectral range from visible to near infrared light. The S5821 provides high performance and reliability at a low cost.
Features
– High-speed response
– Wide spectral response
– Low dark current
– Low terminal capacitance
Specifications
| Photosensitive area | φ1.2 mm |
|---|---|
| Package | Metal |
| Package category | TO-18 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.52 A/W |
| Dark current (max.) | 2000 pA |
| Cutoff frequency (typ.) | 25 MHz |
| Terminal capacitance (typ.) | 3 pF |
| Noise equivalent power (typ.) | 6.7×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted |
