Description

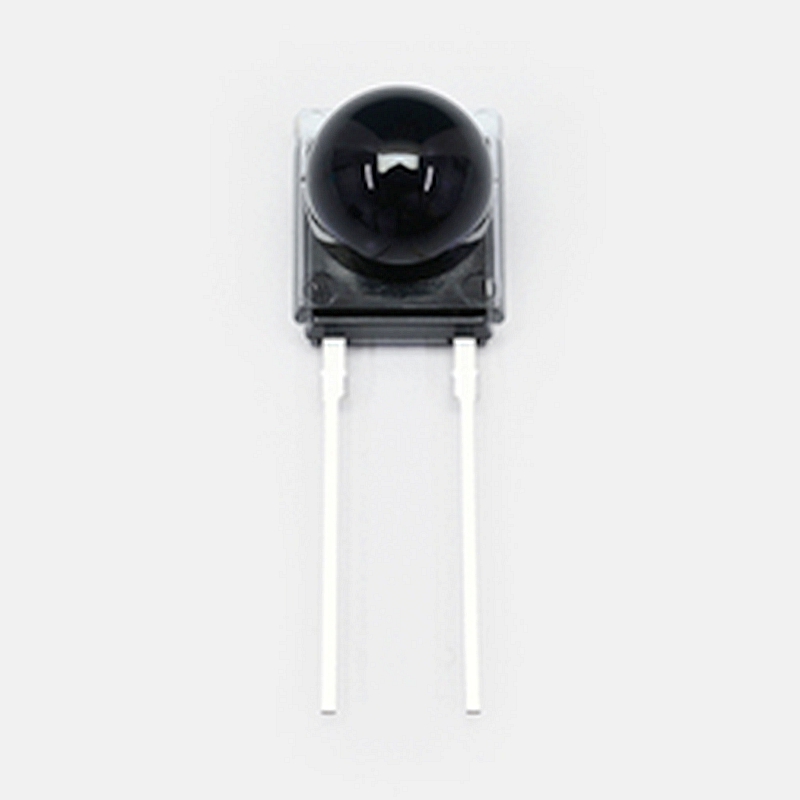

Hamamatsu S6036-01 φ7 mm lens plastic package
The S6036-01 is a Si PIN photodiode molded into a plastic package with a Φ7 mm lens.
Features
– Plastic package with φ7 mm lens
– High-speed response: 25 MHz typ. (VR=12 V, λ=850 nm)
– High sensitivity: 0.56 A/W (λ=λp)
– Directivity: ±25° (half angle)
– Visible-cut type
Specifications
| Photosensitive area | φ7.0 mm |
|---|---|
| Package | Plastic |
| Package category | With lens |
| Cooling | Non-cooled |
| Spectral response range | 760 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.56 A/W |
| Dark current (max.) | 10000 pA |
| Cutoff frequency (typ.) | 25 MHz |
| Terminal capacitance (typ.) | 15 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, unless otherwise noted |
