Description

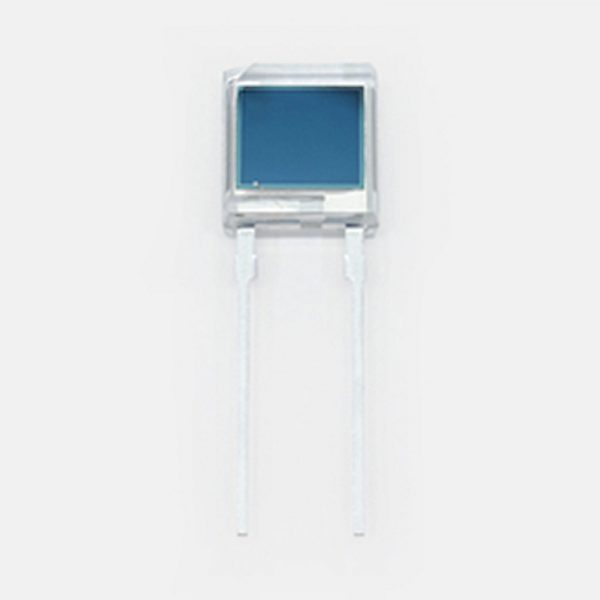

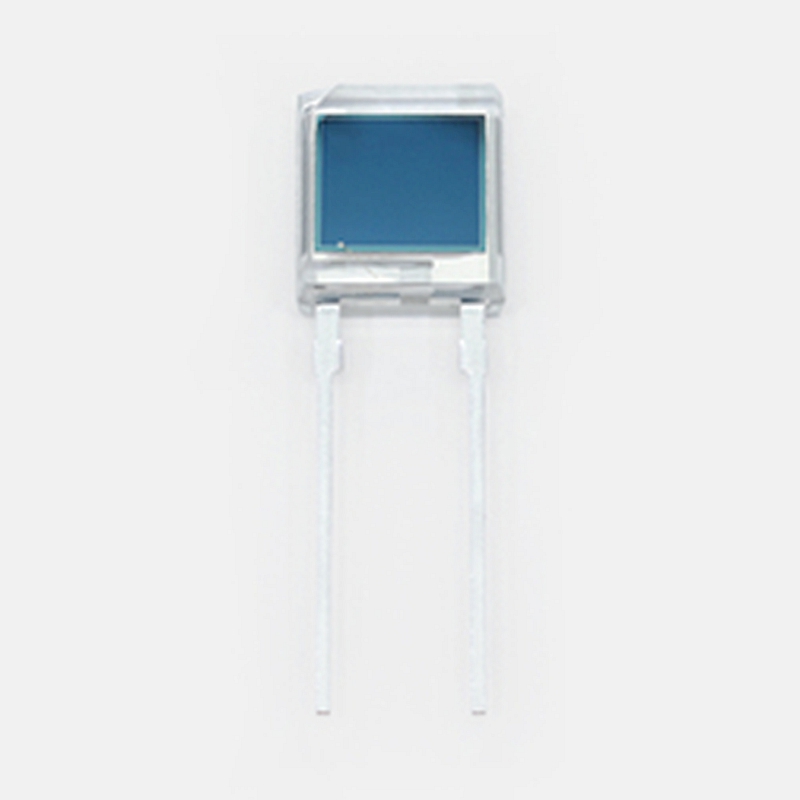

Hamamatsu S6775 Plastic SIP (single in-line package)
The S6775 is a Si PIN photodiode with large photosensitive area, molded into a clear plastic SIP for detecting near infrared range. This Si PIN photodiode features high sensitivity, high-speed response and large photosensitive area.
Features
– Visible to near infrared range
– High sensitivity
– High-speed response
– Large photosensitive area
– Plastic package: 7 × 7.8 mm
– Photosensitive area size: 5.5 × 4.8 mm
Specifications
| Photosensitive area | 5.5 × 4.8 mm |
|---|---|
| Package | Plastic |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.55 A/W |
| Dark current (max.) | 10000 pA |
| Cutoff frequency (typ.) | 15 MHz |
| Terminal capacitance (typ.) | 40 pF |
| Noise equivalent power (typ.) | 1.8×10-14 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, unless otherwise noted |
