Description

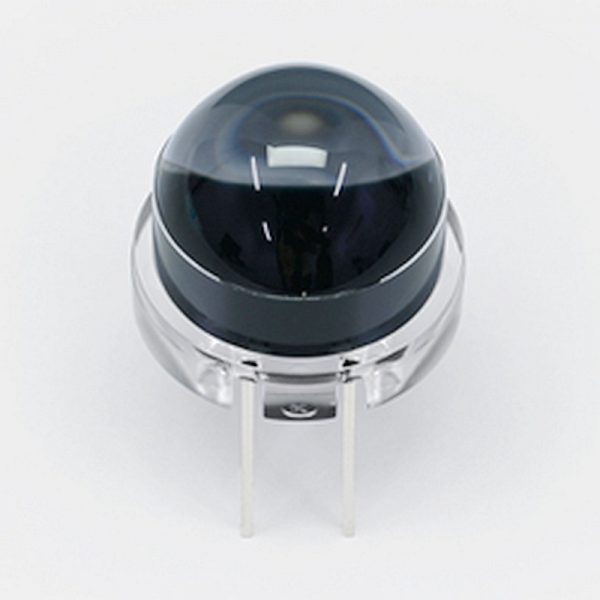

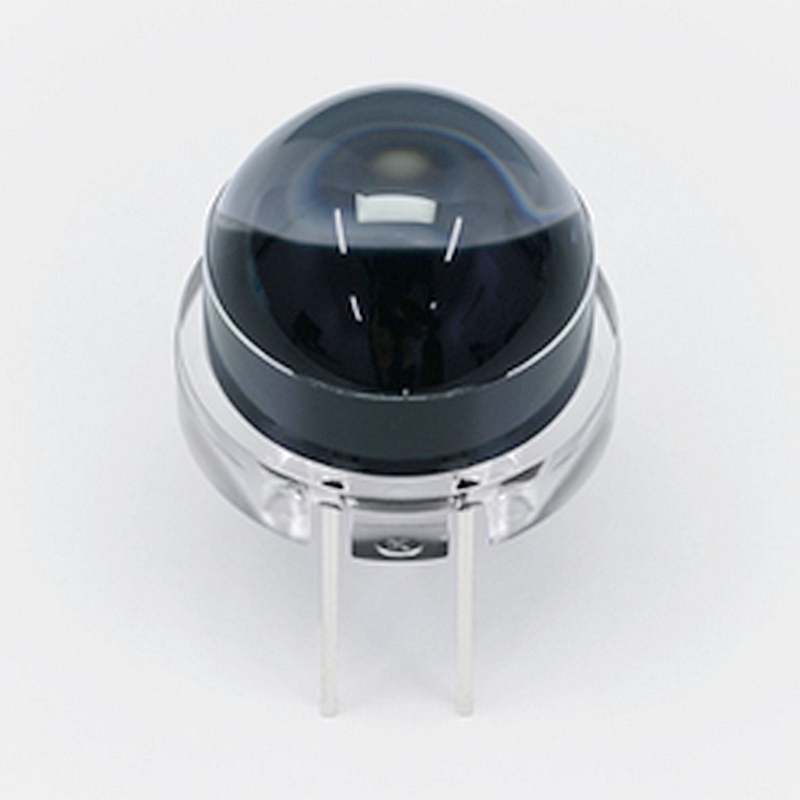

Hamamatsu S6968-01 φ14 mm lens plastic package
This is a Si PIN photodiode molded into a plastic package with a φ14 mm lens.
Features
– High-speed response
– Visible-cut type
– Plastic packages with φ14 mm lens
– Directivity: 35° (half angle)
– Photosensitive area size: φ14 mm (lens diameter)
– Effective photosensitive area: 150 mm2
Specifications
| Photosensitive area | φ14 mm |
|---|---|
| Package | Plastic |
| Package category | With lens |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 700 to 1060 nm |
| Peak sensitivity wavelength (typ.) | 920 nm |
| Photosensitivity (typ.) | 0.55 A/W |
| Dark current (max.) | 5000 pA |
| Cutoff frequency (typ.) | 50 MHz |
| Terminal capacitance (typ.) | 50 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, unless otherwise noted |
