Description

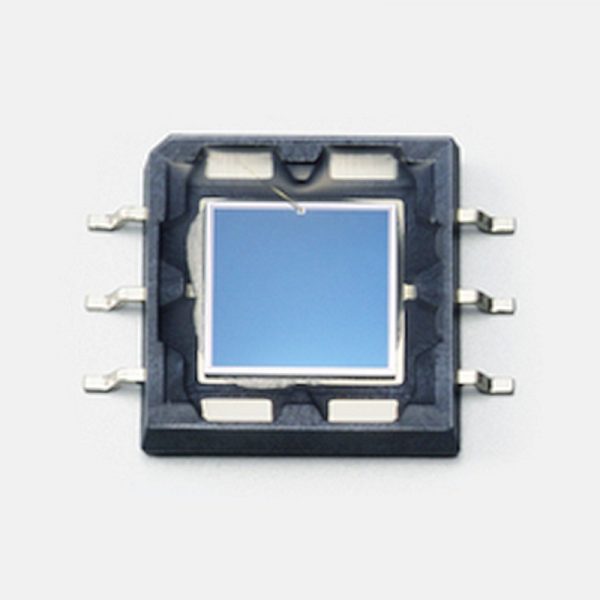

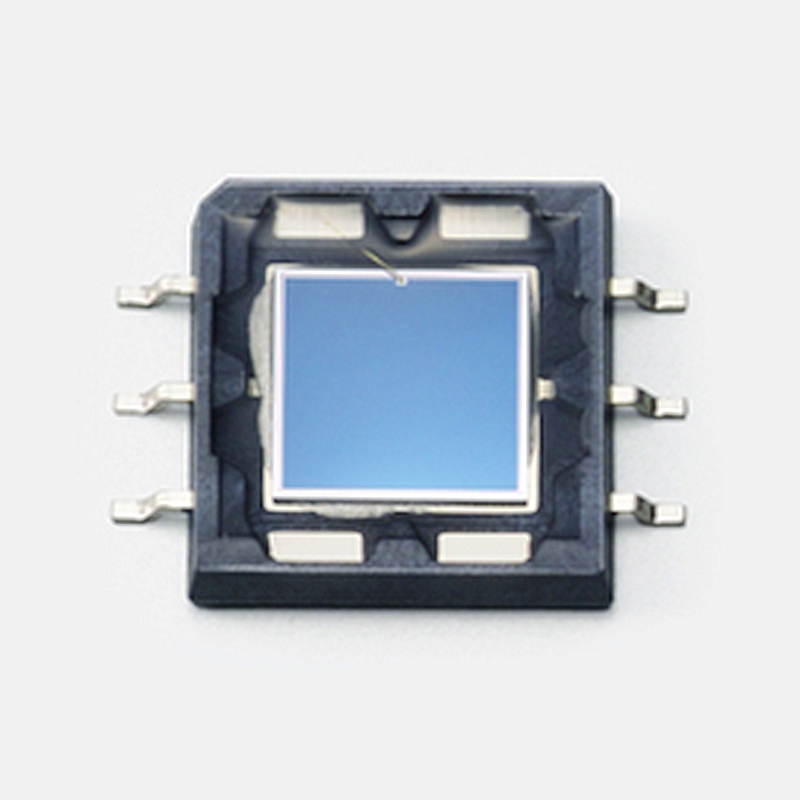

Hamamatsu S7478-02DS High reliability, Large photosensitive area (5 × 5 mm), Stick packing
The S7478 series are PIN photodiodes having a large photosensitive area (5 × 5 mm) and surface mount flat package with leads. There are two same products in different packing types; the S7478 is reel packing and the S7478-02DS is stick packing.
Features
– Small plastic package: 9 × 9.6 × 1.5t mm
– Large photosensitive area: 5 × 5 mm
– Operating temperature range: -25 to +85 °C
Storage temperature range: -40 to +100 °C
– High sensitivity: 0.72 A/W (λ=960 nm)
Specifications
| Photosensitive area | 5.0 × 5.0 mm |
|---|---|
| Package | Plastic |
| Package category | Surface mount type |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.72 A/W |
| Dark current (max.) | 5000 pA |
| Cutoff frequency (typ.) | 20 MHz |
| Terminal capacitance (typ.) | 40 pF |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, unless otherwise noted |
