Description

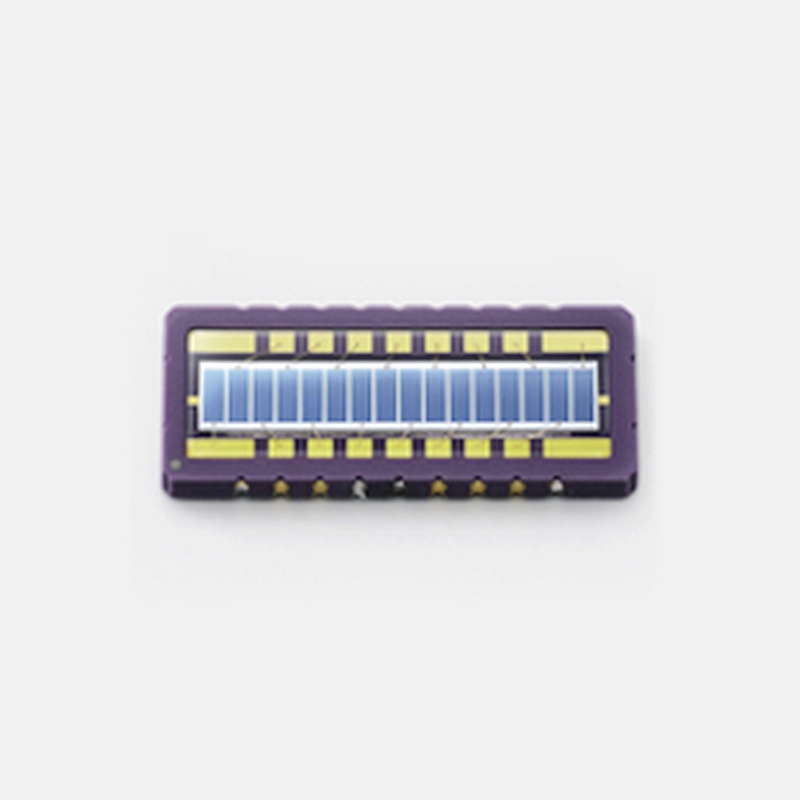

Hamamatsu S8558 Surface mountable 16-element photodiode array
The S8558 is a 16-element Si PIN photodiode array in a ceramic chip carrier package suitable for surface mount using solder reflow techniques. The S8558 can be used in a wide range of applications including spectrophotometer and distance measurement.
Features
-Active area: 0.7 × 2.0 mm (× 16 elements)
-Ceramic chip carrier package for surface mount
-Suitable for solder reflow
-High sensitivity
Specifications
| Element size (per 1 element) | 0.7 × 2.0 mm |
|---|---|
| Number of elements | 16 |
| Package | Ceramic |
| Package category | Surface mount |
| Scintillator type | None |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.72 A/W |
| Dark current (max.) | 1000 pA |
| Terminal capacitance (typ.) | 5 pF |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted per one element, Photosensitivity: λ=λp, Dark current: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz |
