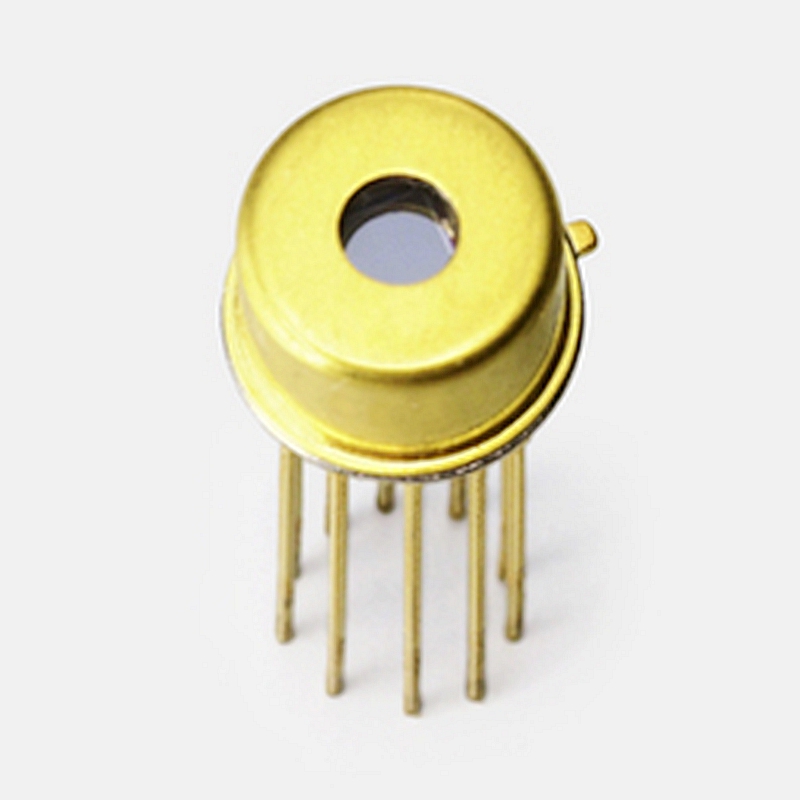

Hamamatsu S8745-01 Photodiode and preamp integrated with feedback resistance and capacitance
This is a low-noise sensor consisting of Si photodiode, op amp, feedback resistance and capacitance, all integrated into a small package. By simply connecting to a power supply, it can be used in low-light-level measurement such as analytical equipment and measurement equipment. The photosensitive area of the photodiode is internally connected to the GND terminal making it highly resistant to EMC noise.
Features
– Use low power consumption FET input operational amplifier
– Built-in Rf=1 GΩ and Cf=5 pF
– Variable gain with an externally connected resistor
– Low noise, low NEP
– Package with shielding effect
– Highly resistance to EMC noise
Specifications
| Photosensitive area | 2.4 × 2.4 mm |
|---|---|
| Package | Metal |
| Package category | TO-5 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 190 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Noise equivalent power (typ.) | 11.0×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, VCC=±15 V, RL=1 MΩ, Photosensitivity: λ=λp, Noise equivalent power: λ=λp, f=10 Hz, unless otherwise noted |
