Description

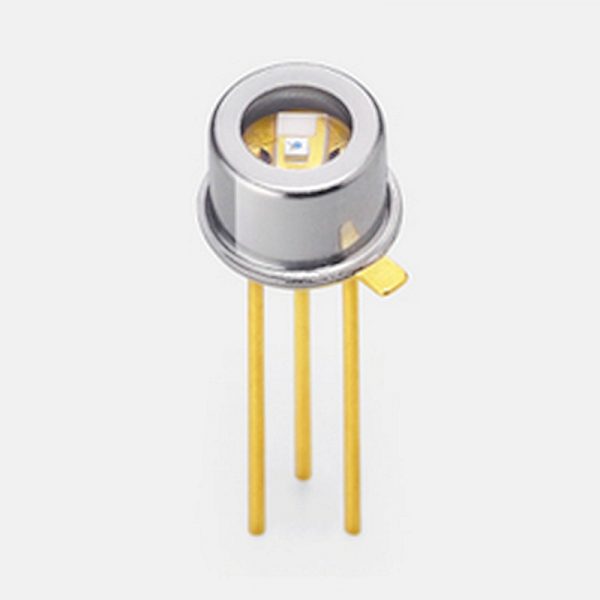

Hamamatsu S9055 Flat response characteristics up to high frequency bands
The S9055 Si PIN photodiode delivers a high-speed response exceeding 1 GHz at low bias voltage (VR=2 V). The low capacitance (less than 1 pF) makes the S9055 ideal for combination with high-speed trans-impedance amplifiers.
Features
– Flat response characteristics up to high frequency bands
– High-speed response: 1.5 GHz (VR=2 V, -3 dB)
– Low capacitance: 0.8 pF (VR=2 V)
– Highly reliable package: 3-pin TO-18 package
Specifications
| Photosensitive area | φ0.2 mm |
|---|---|
| Package | Metal |
| Package category | TO-18 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 20 V |
| Spectral response range | 320 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 700 nm |
| Photosensitivity (typ.) | 0.25 A/W |
| Dark current (max.) | 100 pA |
| Cutoff frequency (typ.) | 1500 MHz |
| Terminal capacitance (typ.) | 0.8 pF |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=850 nm, Dark current: VR=2 V, Cutoff frequency: VR=2 V, Terminal capacitance: VR=2 V, f=1 MHz, unless otherwise noted |
