Description

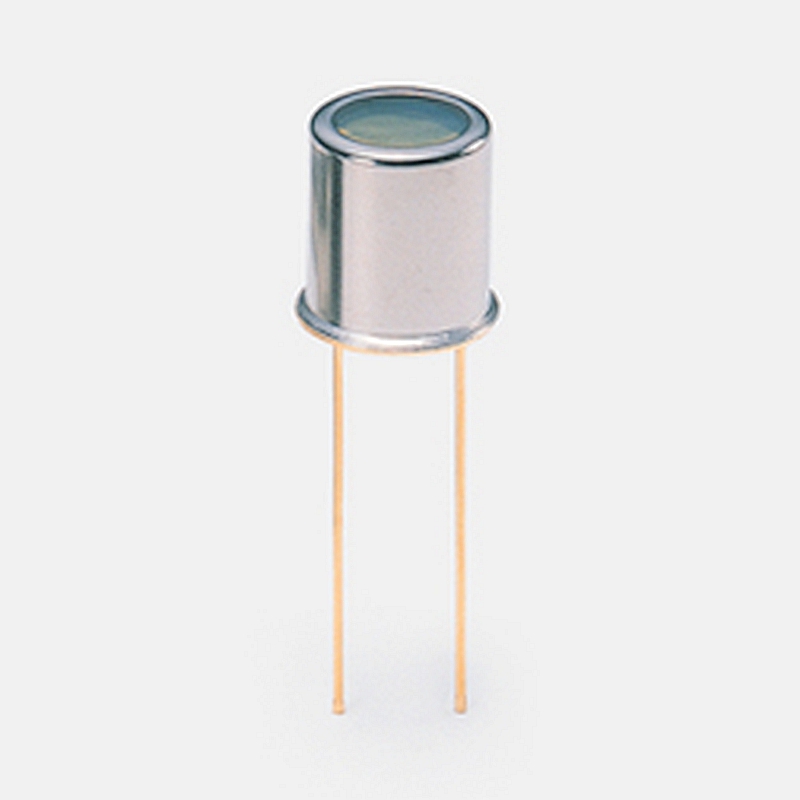

Hamamatsu S9219-01 Spectral response like human eye



Features
– Accurate visible-compensated filter is used
– High reliable metal package
– TO-5 (active area: 3.6 × 3.6 mm)



Notice

This product is not recommended for new designs (Date of discontinuation: Feb. 2026). Please contact our sales department for a recommended replacement product.



Specifications

Photosensitive area	3.6 × 3.6 mm
Package	Metal
Package category	TO-5 with filter
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	380 to 780 nm
Peak sensitivity wavelength (typ.)	550 nm
Photosensitivity (typ.)	0.22 A/W
Dark current (max.)	50 pA
Rise time (typ.)	0.5 μs
Terminal capacitance (typ.)	150 pF
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=10 mV, Rise time: VR=0 V, Terminal capacitance: VR=0 V, f=1 kHz, unless otherwise noted
