Description

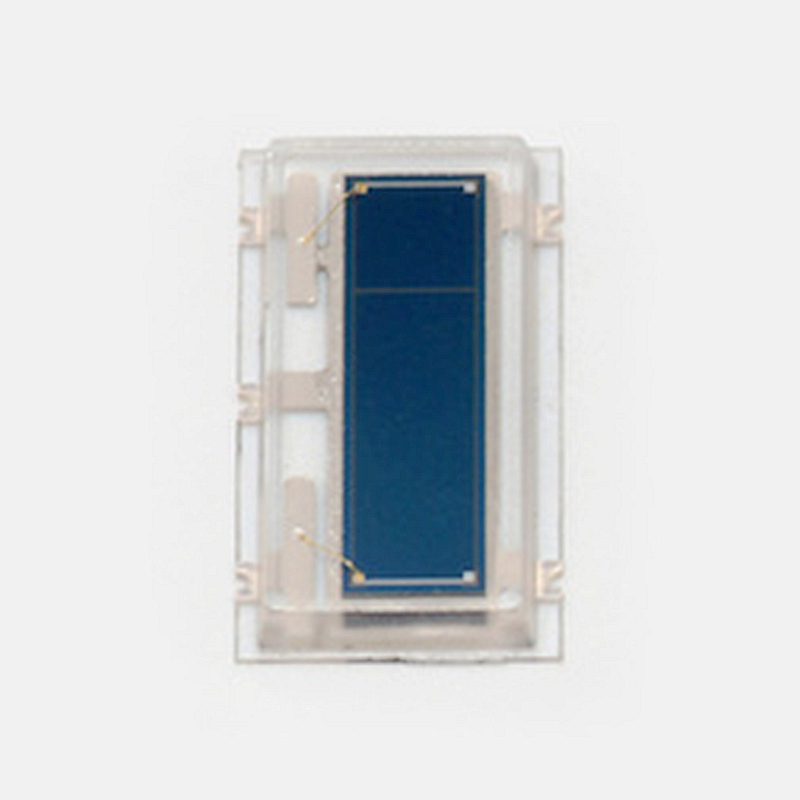

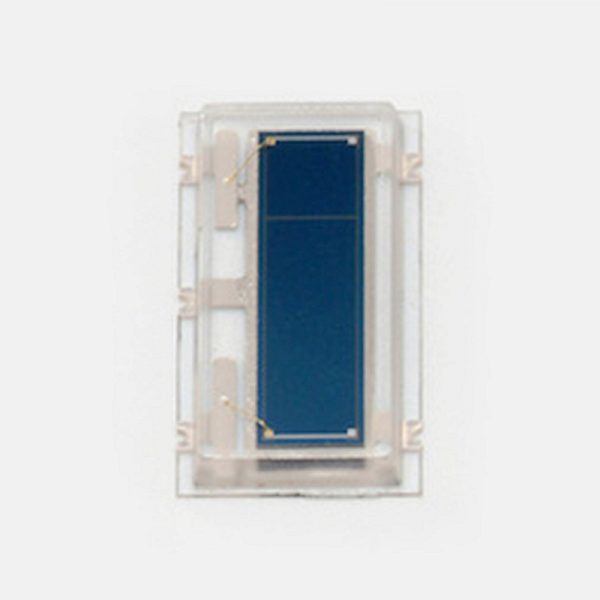

Hamamatsu S9345 Dual-element photodiode using newly developed small, thin package

The S9345 is a dual-element Si PIN photodiode employing a newly developed small, thin plastic package. The cubic volume reduced to onefifth that of similar type photodiodes using conventional package. In order to extend the detection area when used as a reflection-mode optical switch, the entire photodiode active area of 1.5 mm wide and 5.6 mm long is asymmetrically segmented into 2 longitudinal sections of 1.5 mm and 4.1 mm.

Features
– Miniature and thin plastic package: 3.4 × 7.0 × 0.95 ^t mm
– Surface mounting type
– Asymmetrical dual-element PIN photodiode
– High sensitivity
– Photosensitive area
Photodiode A: 1.5 x 1.5 mm, Photodiode B: 1.5 x 4.1 mm

Specifications
