Description

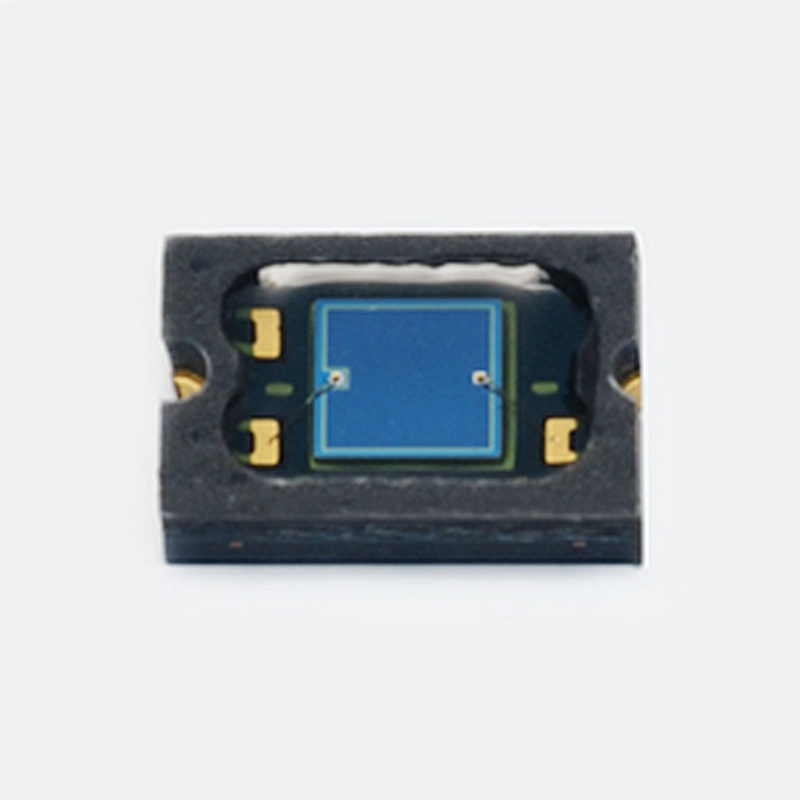

Hamamatsu S9674 Applicable to lead-free solder reflow and wide temperature range
The S9674 is a photodiode that is applicable to lead-free solder reflow and has an extremely wide operating and storage temperature range (-40 to +125 °C). The small and thin leadless package allows reducing the mount area on a printed circuit board.
Features
– Suitable for lead-free solder reflow
– Surface mount type, small and thin leadless package
– Operating/storage temperature: -40 to +125 °C
– Photosensitive area: 2 × 2 mm
– High sensitivity: 0.7 A/W (λ=960 nm)
Specifications
| Photosensitive area | 2.0 × 2.0 mm |
|---|---|
| Package | Glass epoxy |
| Package category | Surface mount type |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 10 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.7 A/W |
| Dark current (max.) | 1000 pA |
| Rise time (typ.) | 2 μs |
| Terminal capacitance (typ.) | 500 pF |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==5 V, Terminal capacitance: VR=0 V, f=1 MHz, unless otherwise noted |
