hot sale 3V 3.7V DC 60mm 8mm LED COB Strip 1.5W 3W Warm Cold White Blue Red COB LED light source for DIY Bicycle work lamp

$7.30$10.29

Clear
SKU: 1000008700528 Category:

Description

  • Brand Name: Mr.white
  • Item Type: LED Bulbs
  • Beam Angle(°): 120°
  • LED Chip Brand: Epistar
  • Base Type: 60*8mm 3V cob led strip
  • Voltage: DC 2-2.5V(Red),3-3.7V(Others)
  • Color Temperature: Cool White(5500-7000K)
  • Average Life (hrs): 15000
  • Shape: Bar
  • Certification: CCC,ROHS,ce,FCC
  • Led Bulb Type: Car Bulb
  • Length: 60x8mm
  • LED Chip Model: 1W High Power
  • Luminous Flux: 250 – 499 Lumens
  • Occasion: Bedroom
  • Power Tolerance: 3%
  • Type: Mr.white-6008 1.5W 3W
  • Board size: 60x8mm
  • Lighting area: 50x7mm
  • Power: 1.5W 3W
  • Forward Voltage(Red): 2-2.5V DC
  • Forward Voltage(Warm White/White/Blue): 3-3.7V DC
  • Max Forward Current(1W): 300mA DC
  • Max Forward Current(3W): 1000mA DC
  • Warm White: 2800-3200K
  • Cold White: 6200-6800K
  • Red(wavelength): 620-630nm
  • Blue(wavelength): 450-460nm
  • Main Material: Aluminum-board silicon rubber
  • Notice: Please use a necessary heatsink when used
  • application: Bicycle light / Work light / flash light / table lamp

dianxiaobao_1






hot sale 3V 3.7V DC 60mm 8mm LED COB Strip 1.5W 3W Warm Cold White Blue Red COB LED light source for DIY Bicycle work lamp

hot sale 3V 3.7V DC 60mm 8mm LED COB Strip 1.5W 3W Warm Cold White Blue Red COB LED light source for DIY Bicycle work lamp



Mr.white Factary store 60*8mm COB LED bar strip light source.

  _ Type : Mr.white-6008-1.5W / Mr.white-6008-3W.

  _ Product Size : 60*8mm.

  _ Light area : 50*7mm.

  _ Power : 1.5W / 3W.

  _ Forward Voltage(DC) : 3-3.7V(Warm white, Cold white, Blue), 2-2.5V(Red).

  _ Max Forward Current : 500mA(1.5W), 1000mA(3W).

  _ Emitting color : Cold White(C.W 6200-6800K), Warm white(w.w 2800-3200k),  Blue(450-460nm), Red(620-630nm).

  _ Luminous Flux :>100lm/w

  _ Viewing Angle : 120 degrees

  _ OEM/ODM : We are manufacturers. If you have any need, please contact us. We accept customization.

  _ Notice:Please add a necessary heatsink when used.

  _ Tips: please use this product as required below.


Caution:Due to the limit of photographing equipment,the color of the products in the photo is for reference only,please subject to our actual products in case of any difference.

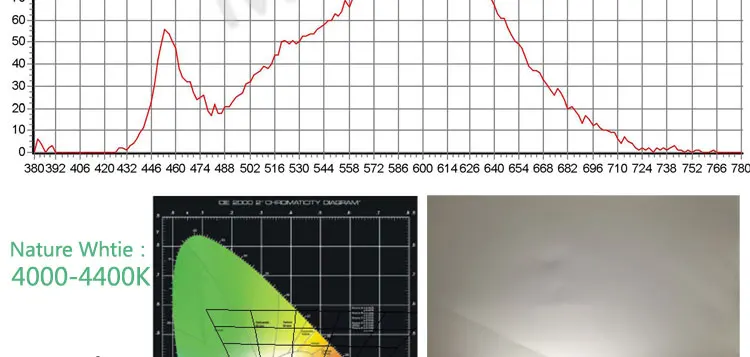

01测试参数合_0101测试参数合_0201测试参数合_0301测试参数合_0401测试参数合_05

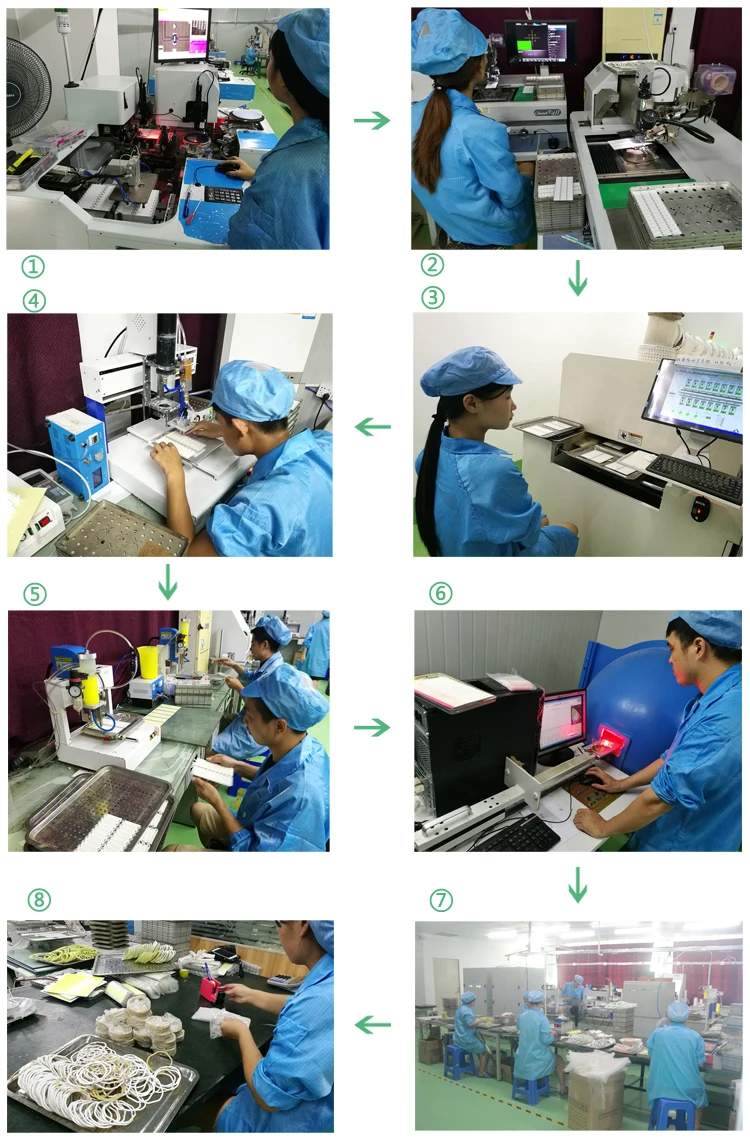

04工艺流程 - 英文版副本

005
 We give priority to safe and concise package. If you have specific requirements, please communicate with our customer service staff when ordering. Thank you for your cooperation.
