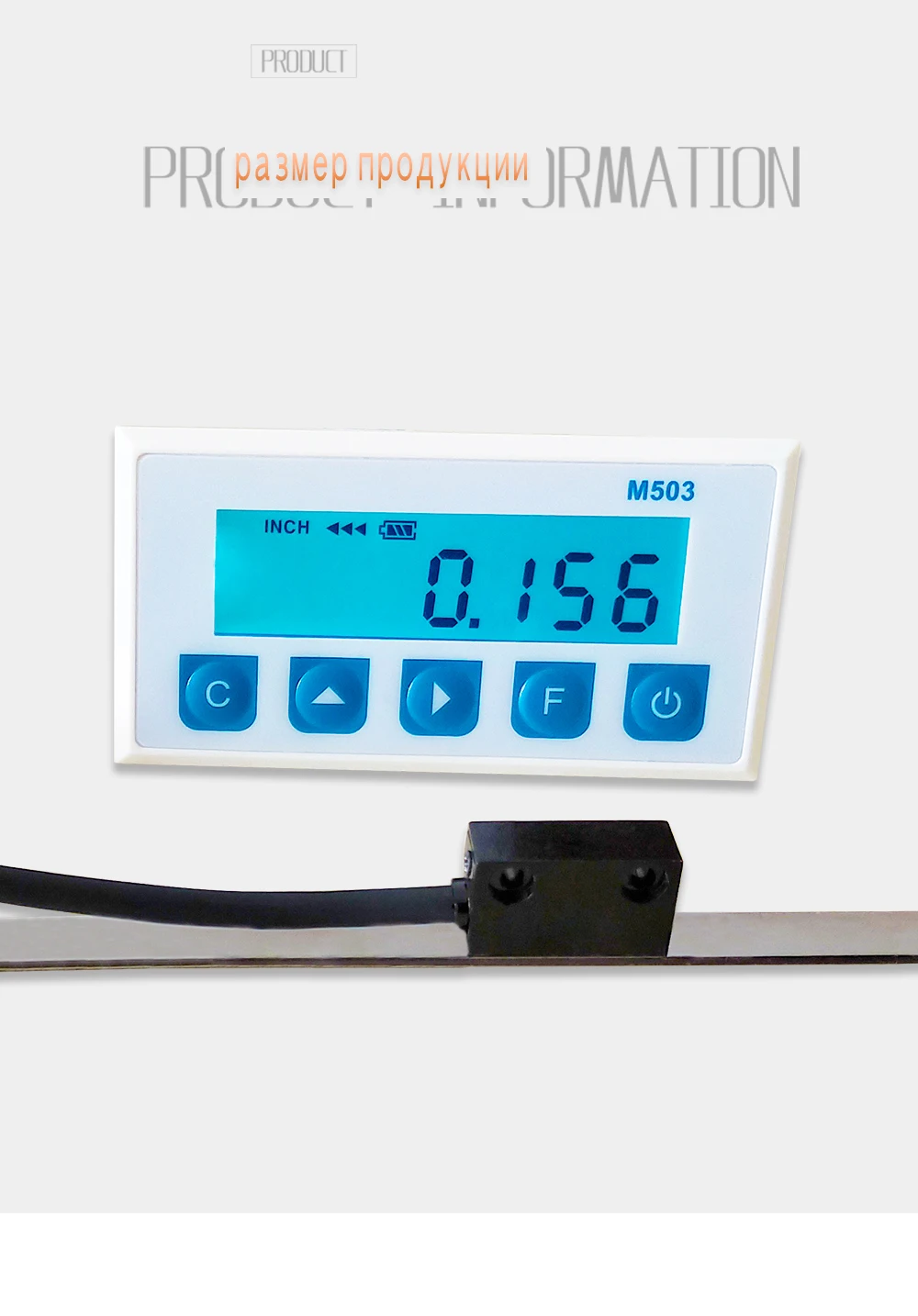

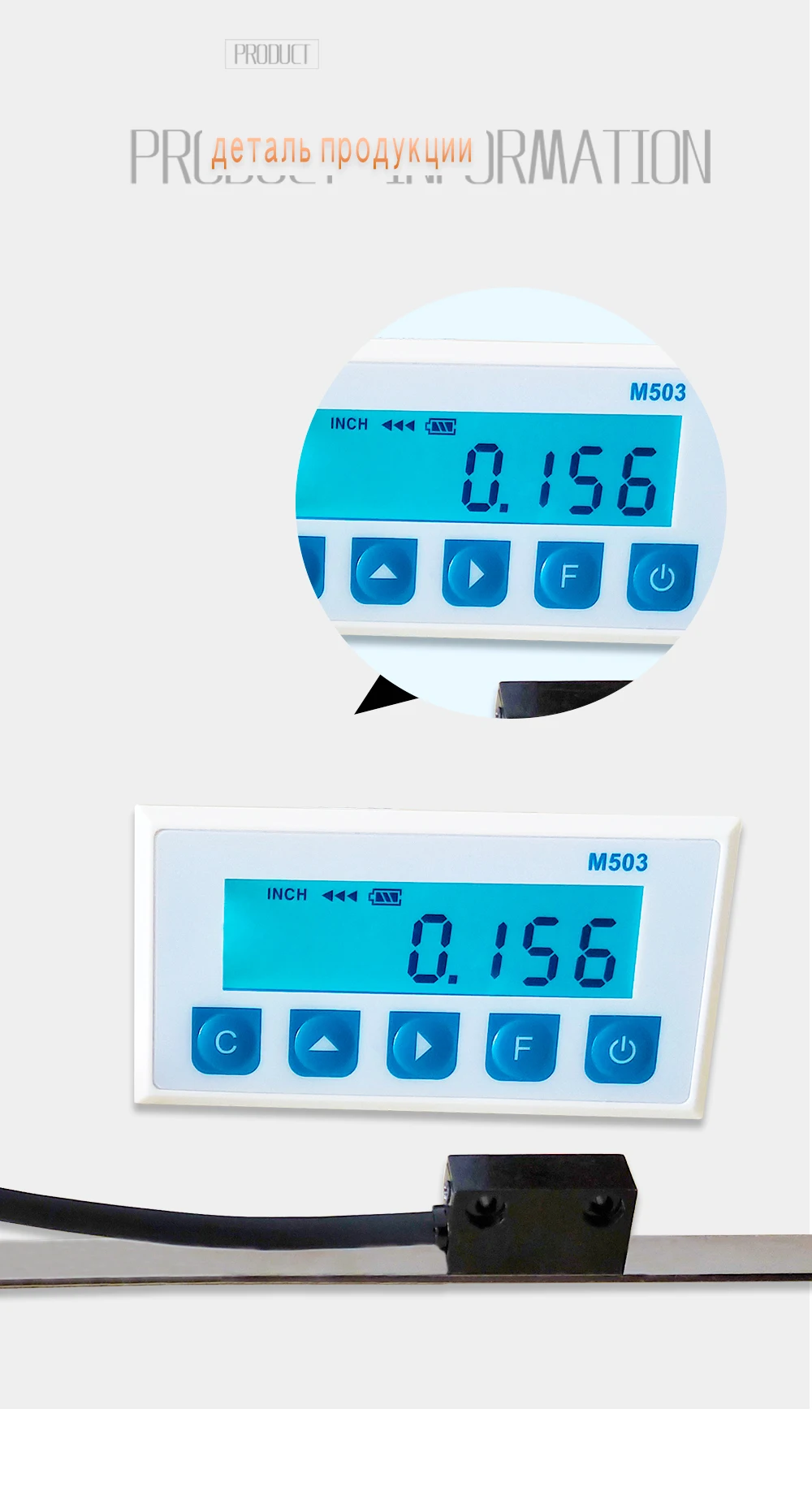

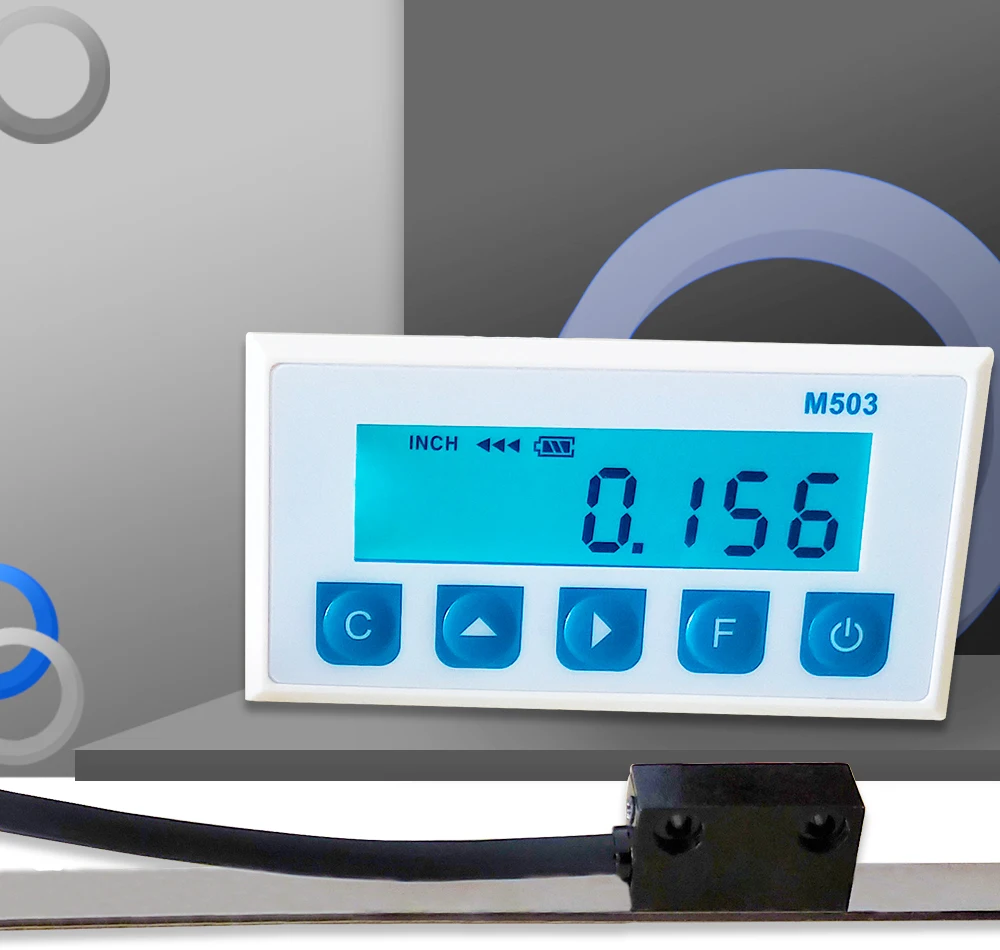

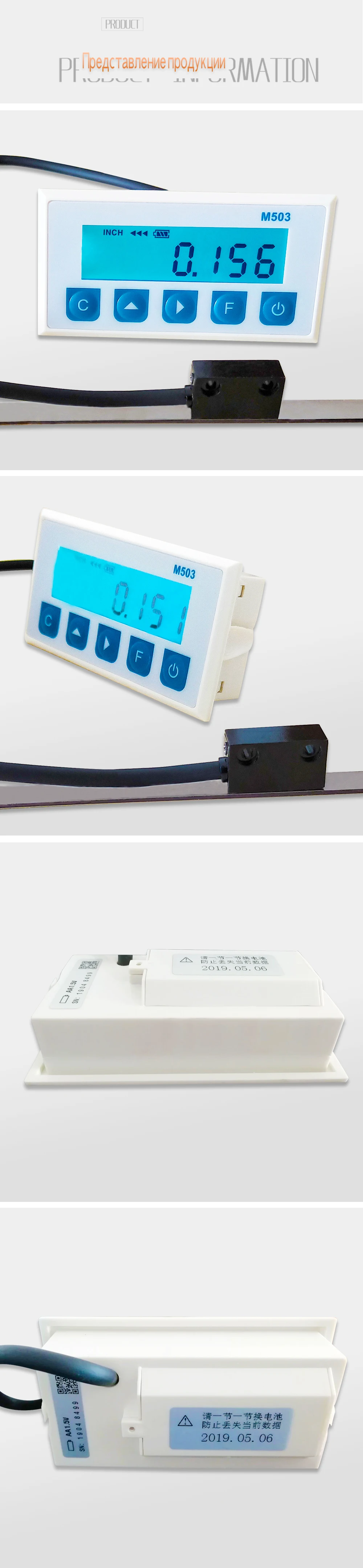

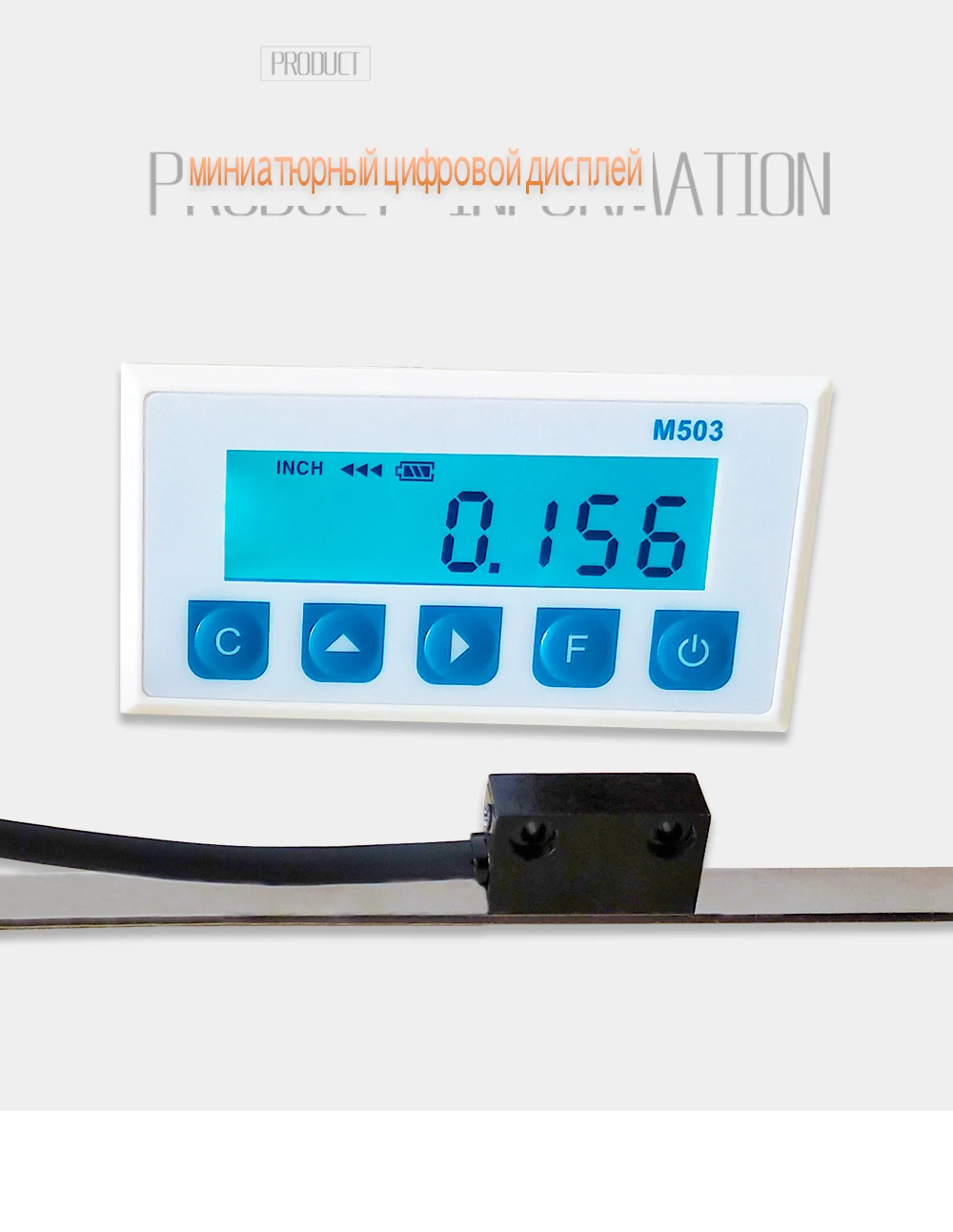

M503 Miniatur Magnetic Grid Scale Integrated Embedded Measurement System Linear Encoder Digital Display DRO

$41.80$407.00

Clear
SKU: 32923995345 Category:

Description

  • Brand Name: MSTBODEN
  • Certification: CE
  • Origin: Mainland China
  • Model Number: M503
  • Product Name:: Magnetic measurement system
  • Model:: M503
  • Measuring distance:: -1999999 – 9999999
  • Resolution:: 0.01 0.05 0.1 1
  • Voltage:: Two batteries No. 5 (AA)
  • Moving speed:: Max.5m/s
  • Operating temperature:: 0-60

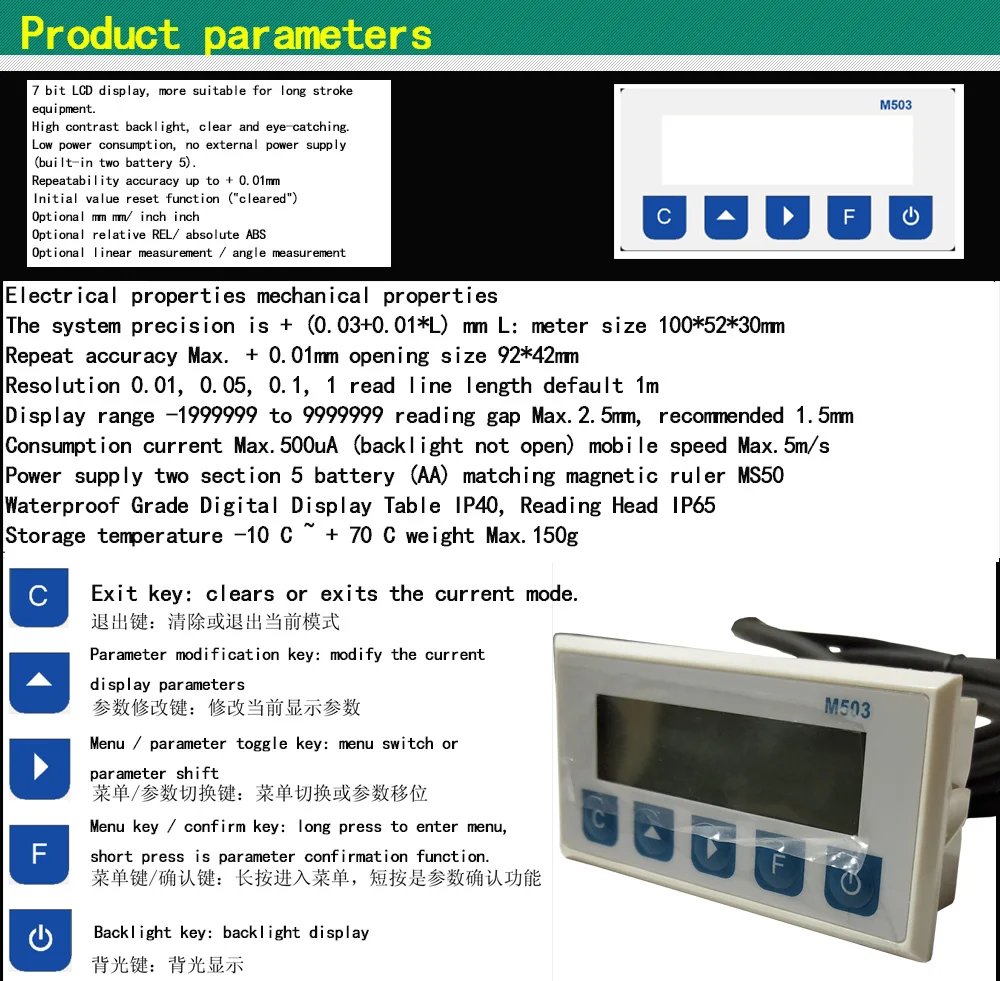

System accuracy: + (0.03+0.01*L) mm

Repeatability: Max. + 0.01mm

Resolution: 0.01 0.05 0.11

Display range: -1999999-9999999

Consumption current: Max.500UA (backlight not opened)

Power supply: two batteries No. 5 (AA)

Operating temperature: 0 degrees Celsius -60 degrees Celsius

Storage temperature: -10 degrees Celsius -70 degrees Celsius

Outline size: 100*52*30mm

Opening size: 92*42mm

Read line length: 1m customizable (2M 3M 5M 6M).

Mobile speed: Max.5m/s

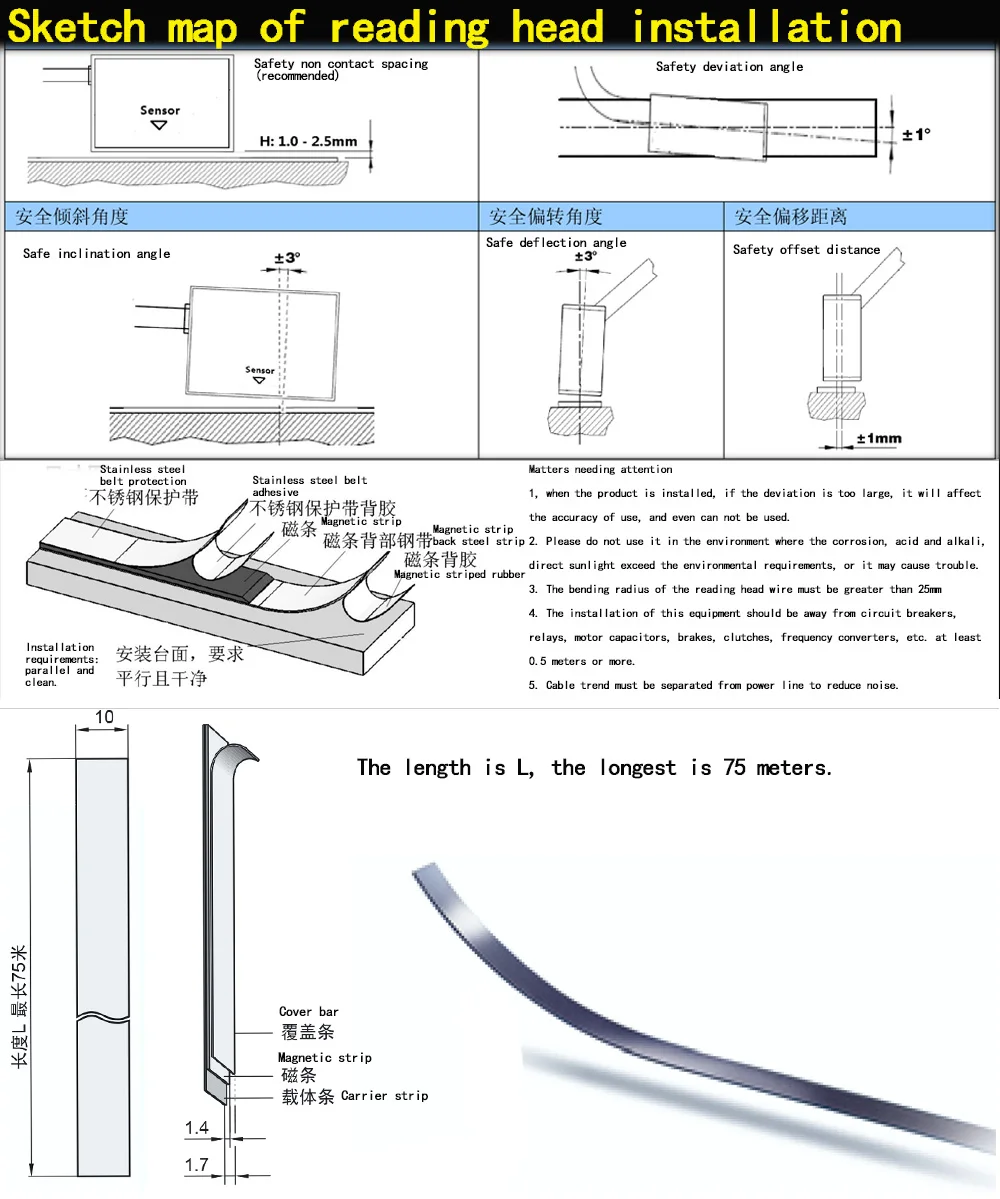

Read gap: Max.2.5mm, recommended 1.5mm

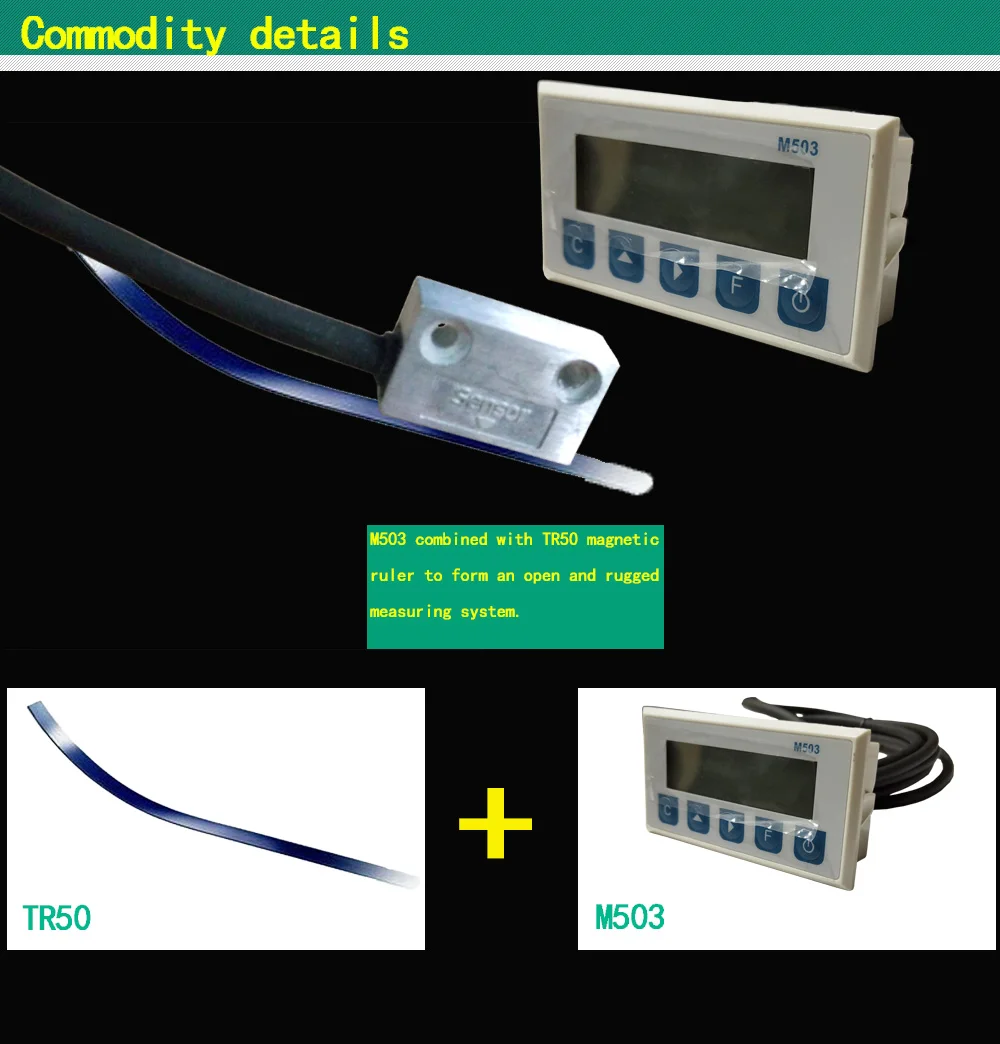

Matching magnetic stripe: TR50

Waterproof grade: digital display IP40, read head IP60

Weight: Max.150g
