MT6825 Magnetic Encoder Module PWM/SPI Brushless Motor Encoder Can Replace AS5048

Tips:

Due to the limitation of logistics channels, radial magnets are not included in the shipment.

MT6825GT high-speed zero-delay magnetic encoder chip

(1) Mode selection

Optional output: 1~4096 lines ABZ, 1~16 pairs of UVW, 18-bit SPI, 12-bit PWM;

Default delivery: The output is SPI/ABZ (the number of ABZ lines is random).

If you need to specify the output, please contact customer service in advance, otherwise it will be shipped by default.

The 25000RPM delay is less than 2 microseconds, which is very suitable for replacing optical encoders.

Pin compatible replacement for AK7452

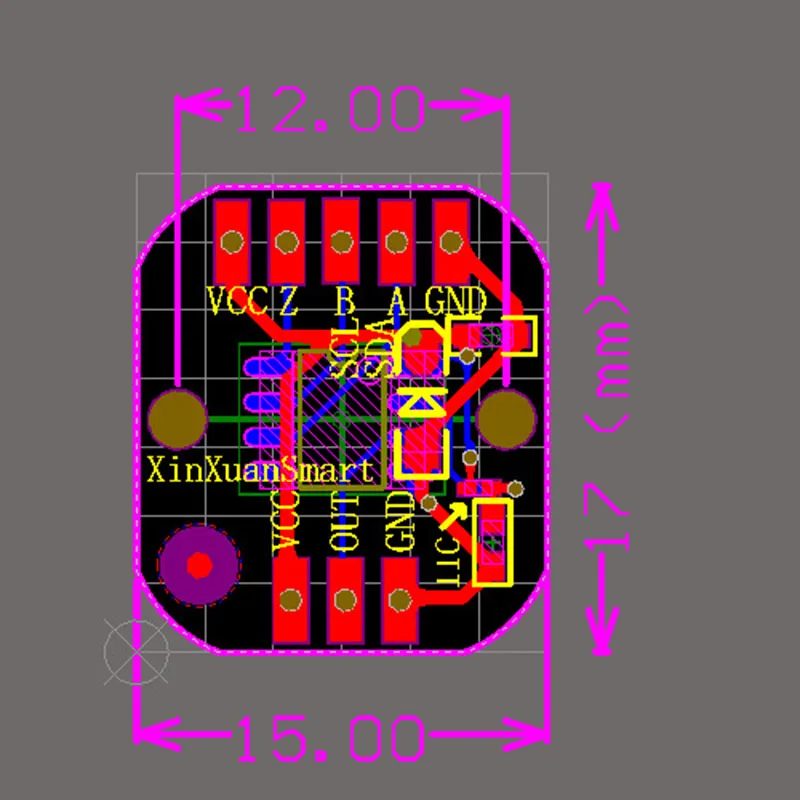

(2) Dimensions
