Description
- Origin: CN(Origin)
- Condition: New
- Type: Laser Diode
Features
1. Absolute maximum ratings：10mW (CW)
2. TO-56 (Φ5.6mm) packaged
Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:793nm Typ.
Optical Output:6mW
Threshold Current:10mA
Operating Current:20mA
Operating Voltage:1.8V
Monitor Current:1.15mA
Operating Temperature:-10 to +60℃
Beam Divergence(FWHM)
Parallel:9deg
Perpendicular:28deg

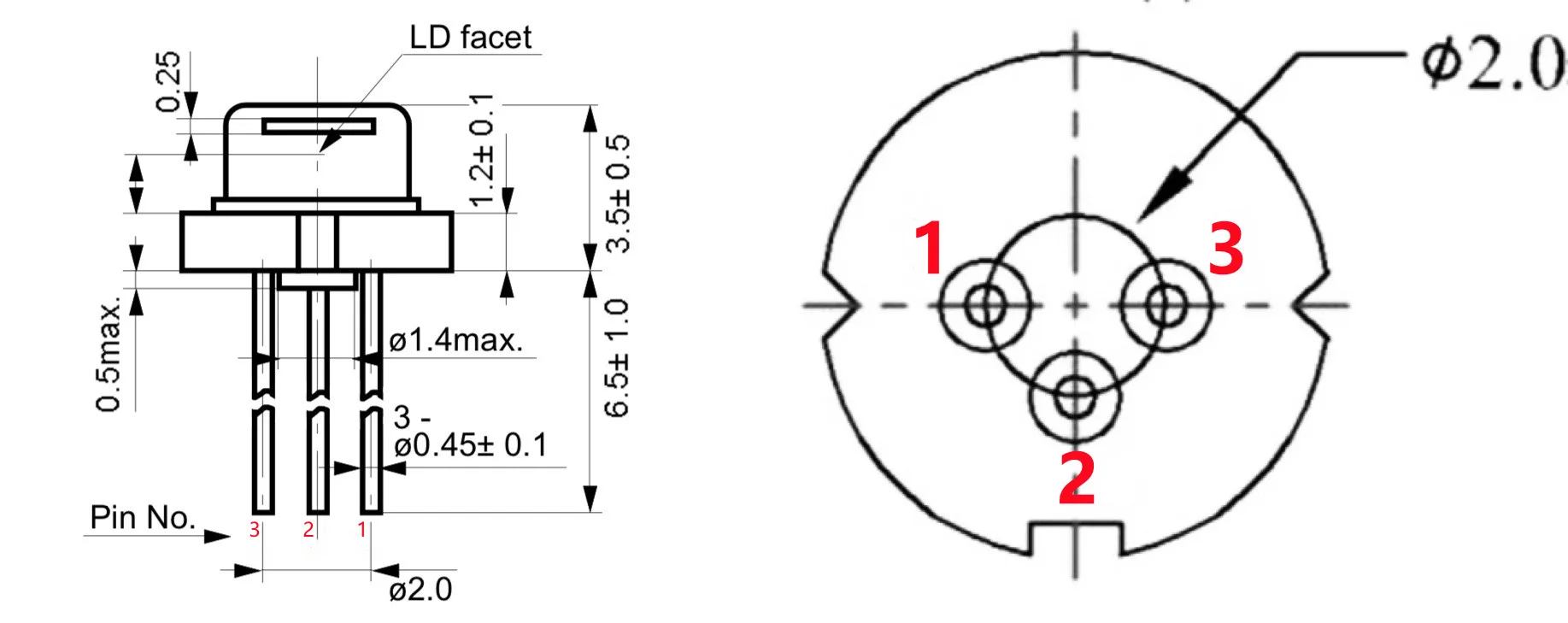

External dimensions(Unit : mm)

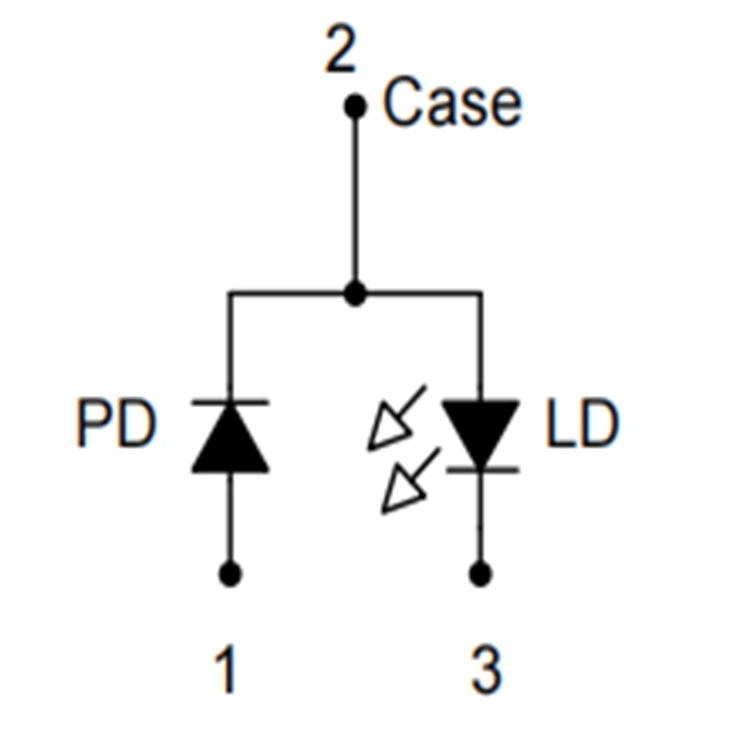

Pin Description
