Description

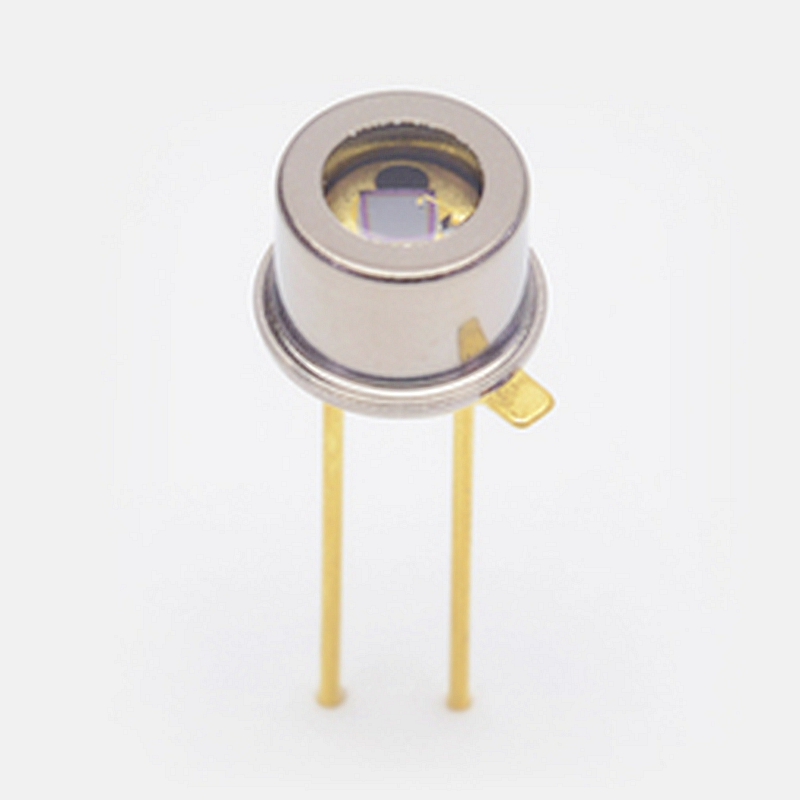

S1336-Hamamatsu S1336-18BK UV to near IR for precision photometry
Features
– High sensitivity in UV range
– Low capacitance
– High reliability
Specifications
| Photosensitive area | 1.1 × 1.1 mm |
|---|---|
| Package | Metal |
| Package category | TO-18 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 5 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.5 A/W |
| Dark current (max.) | 20 pA |
| Rise time (typ.) | 0.1 μs |
| Terminal capacitance (typ.) | 20 pF |
| Noise equivalent power (typ.) | 5.7×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz |
