Description
- Brand Name: YISITONG
- DIY Supplies: ELECTRICAL
- Rated Voltage: 230V

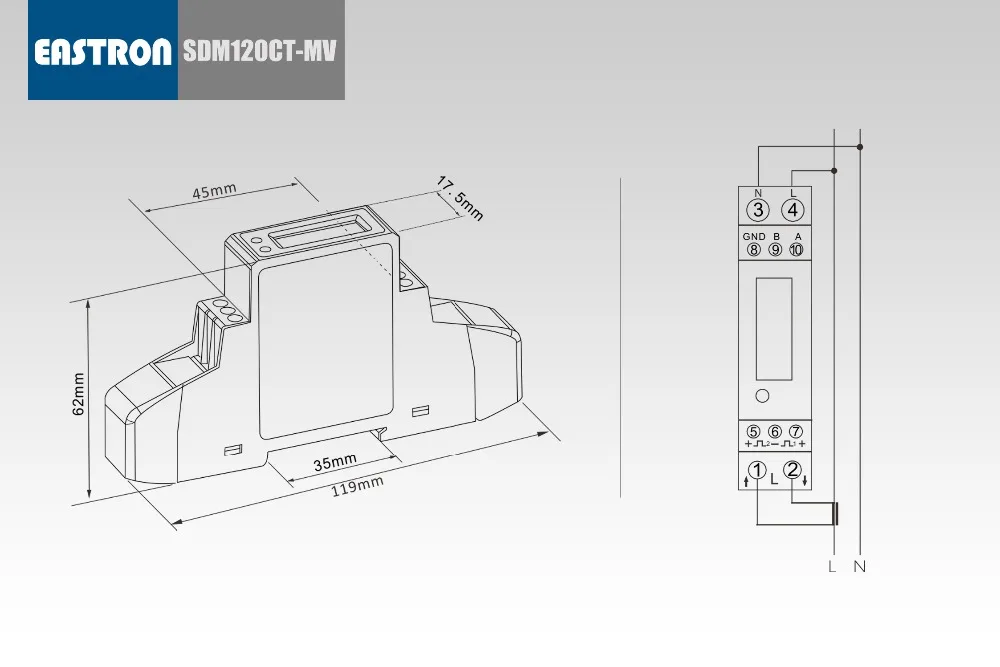

- Dimensions: 90*67.5*17.5mm
- Power Supply: AC
- Display Type: Digital Only
- Measuring Energy Range: 99999.9kwh
- Max Operating Current: 20A – 49A
- Model Number: SDM120CT-MV ESCT-TU10 50A/0.1V
- Output Voltage: 220V
- Phase: single phase
- Accuracy Class: Class 1 IEC62053-21
- Voltage Range: 176~276V AC
- Primary Current: 5-9999A
- Secondary Input: 0.1V
- Starting current: 0.4% of Ib
- Power consumption: <2W/10VA
- Frequency: 50/60Hz(±10%)
- AC voltage withstand: 4KV for 1 minute
- Overcurrent withstand: 30Imax for 0.01s
- Max. Primary Voltage: 500KV
- Use Only Insulating tools
- Do not connect while circuit is live
- Do not connect the SDM120CT-Modbus meter to a 3 phase network – 400V AC
- Place the SDM120CT-Modbus meter only in dry surroundings
- Don't mount the SDM120CT-Modbus meter in a explosive area
- Make sure the wires are suitable for the maximum current of the meter.
- Make sure the AC wires are connected correctly before activating the current/voltage to the meter.
- Don't touch the meter connecting clamps directly with metal, blank wire and your bare hands as you may get electrical shock.
- Make sure the protection cover is placed after installation.
- Never open the meter case , don't drop or allow strong physical impact on the meter.
CERTIFICATIONS:
