Description
Short band 488nm 5mw 20mw 50mw blue cyan dot laser module Medical equipment accessories head Customizable
- Certification: ce
- Spare Parts Type: Laser module
- Key Selling Points: Long Service Life
- Applicable Industries: Building Material Shops, Manufacturing Plant
- Weight (KG): 0.07 KG
- Product name: 488nm 5mw 20mw 50mw dot laser Module
- Laser wavelength: 488nm
- Output power: Different choice, different power output

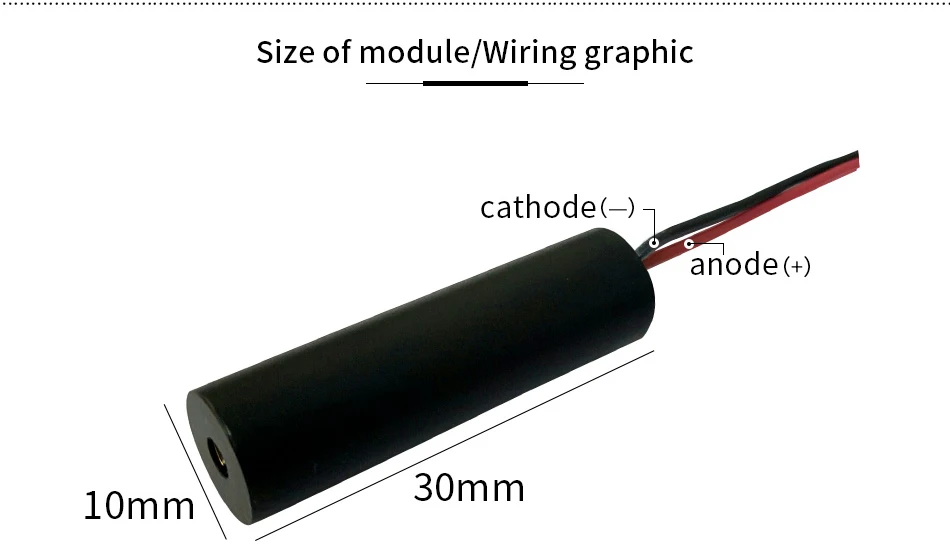

- Size: 10mm*30mm
- Input voltage: 6V
- Service life: >10000hrs
- Lens: Glass Lens
- Material: Aluminum
- Surface treatment: Black oxidation
- Focal length: 10 M
|
Category
|
Description & Parameters
|
Customizable type
(Each custom category may incur a certain cost )
|
|
Type
|
① 488nm 5mw ② 488nm 20mw
③488nm 50mw
|
Independent product code
|
|
Size(diameter*longer)
|
10*30 (mm)
|
6*18/7*21/8*17/9*21/10*23/12*33/20*60 etc
Or according to customer requirements
|
|
Material
|
Aluminum
|
Aluminum,Brass ,Steel….
|
|
Surface treatment
|
Black oxidation
|
Or according to customer requirements,
please contact customer service first
|
|
Service life
(Continuous use)
|
>10000 (hours)
|
Or according to customer requirements,
please contact customer service first
|
|
Laser wavelength
|
487±8 (nm)
|
Between 400 and 980nm can be selected, please contact customer service first
|
|
Output power
|
① < 5 ② <20
③ <50 (mw)
|
Or according to customer requirements,
please contact customer service first
|
|
Range(indoor)
|
① > 100 ②>200
③ >500 (M)
|
The greater the power, the farther the range,
Different use environment, different range.
|
|
The shape and size of the spot at 10M
|
<8*12 (mm),Oval spot
|
Different focus position, different spot size, can also be made according to customer requirements, please contact customer
|
|
Focal distance
|
Fixed(Lens fixed)
|
Or adjustable(The same price)
|
|
Focusing lens
|
Glass aspheric coating lens
|
Or Acrylic(PMMA) lens
|
|
Driver
|
ACC constant electric current control
|
APC or TTL (pwm) control
|
|
Operating voltage
|
DC 6V
|
Or 3~24V DC
|
|
Operating current
|
< 135 (mA)
|
The greater the power, the greater the current
|
|
Working mode
|
Continuous work
|
Or TTL(pwm) 2.8~5V High level voltage
|
|
Electric wire
|
UL1571 28#150mm Red/black wire
|
Or according to customer requirements,please contact customer service first
|
|
Operating temperature
|
-10℃~+60℃
|
Depends on the laser diode selected
|
|
Storage temperature
|
-40℃~+85℃
|
Depends on the laser diode selected
|

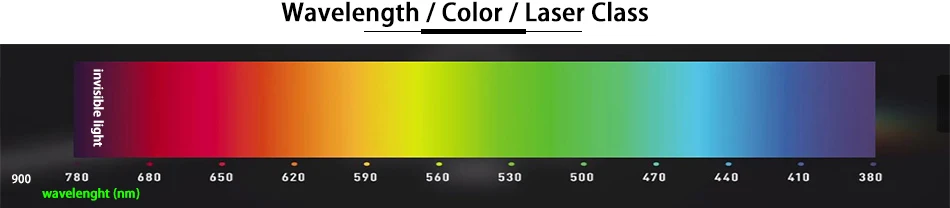

Color/Wavelength
Violet :(380~450 nm) ;Blue :(450~475 nm);Cyan :(476~495 nm);Green :(495~570 nm); Yellow:(570~590 nm) ;Orange: (590~620 nm) ;Red :(620~750 nm, More than 700nm has belonged to the infrared invisible light band, The color of light spot in close observation is red, because of the red storm phenomenon)
700~900nm:With red storm(weak red light can be seen by naked eye),Please choose the right wavelength according to your needs
More than 900nm: no light of any color can be seen by the naked eye,only through the infrared camera
Laser class:
Class I: output power <0.4 mw
Class II:0.4 mw < output power <1 mw
Class IIIA:1 mw < output power <5 mw
Class IIIB :5 mw < output power <500mw
Class IV:500 mw < output power
Laser application with the development of science and technology is more and more widely used, is the most common application in: intelligent robots, intelligent household products, PM2.5 detector, sweep robot, laser rangefinder, sight, gaming devices, installed equipment, marking equipment, laser sensor, night-vision units fill light, seam sanctions cutting machine, tire line positioning, mechanical sheet metal marking, cutting machine, textile Clothing, sewing positioning, golf correction positioning, SMT positioning, stop frame, steel plate printing positioning, stone cutting marking, sawing marking, woodworking machinery marking, stone bridge cutting machine positioning, shoe machine positioning, set knotting machine, printing machine and other applications. Effectively improve the work efficiency and economic benefits. It can also be used for friends who love to make small products by themselves or for experimental teaching and product development in school educational institutions and research institutions.

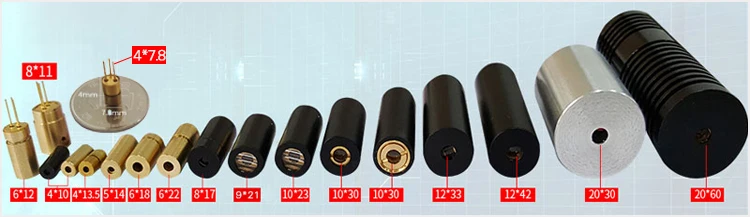

The above photos are only part of the display that can be customized size, if you need special size requirements, please contact customer service and technology!
———————————————————————

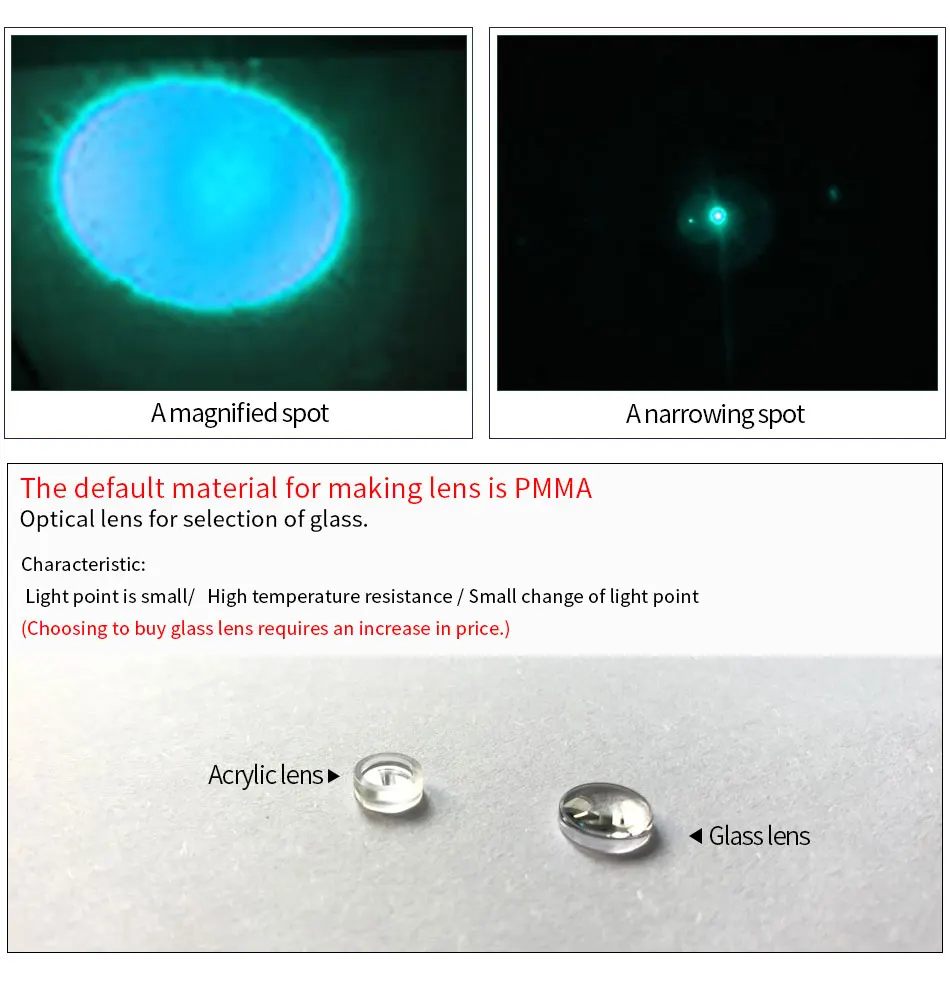

Adjustable lens style can enlarge or reduce the light spot, we default shipping style is fixed focus (lens fixed), please need adjustable lens, order notes or contact customer service!
