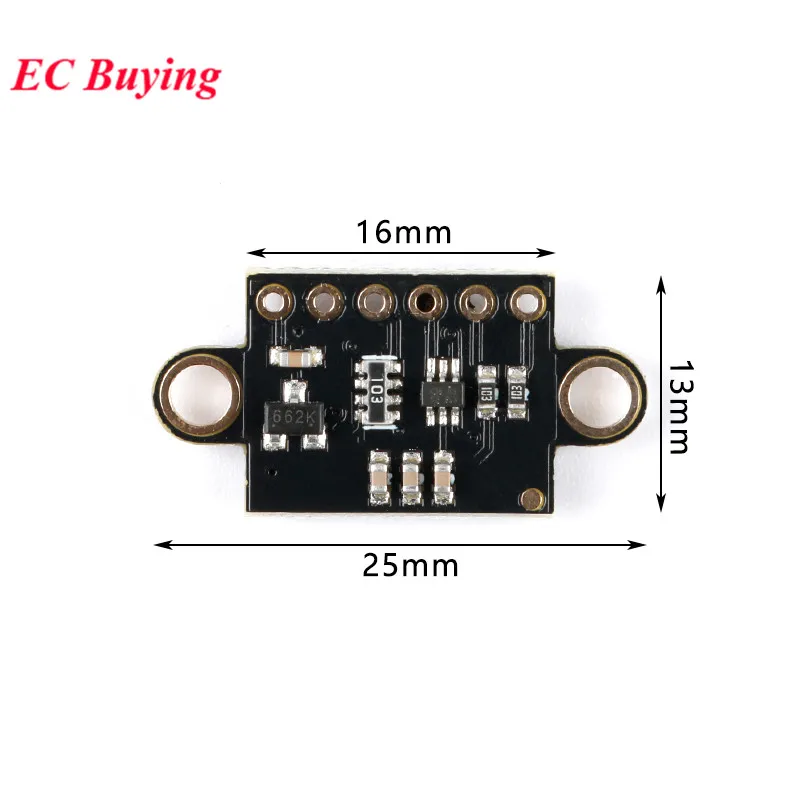

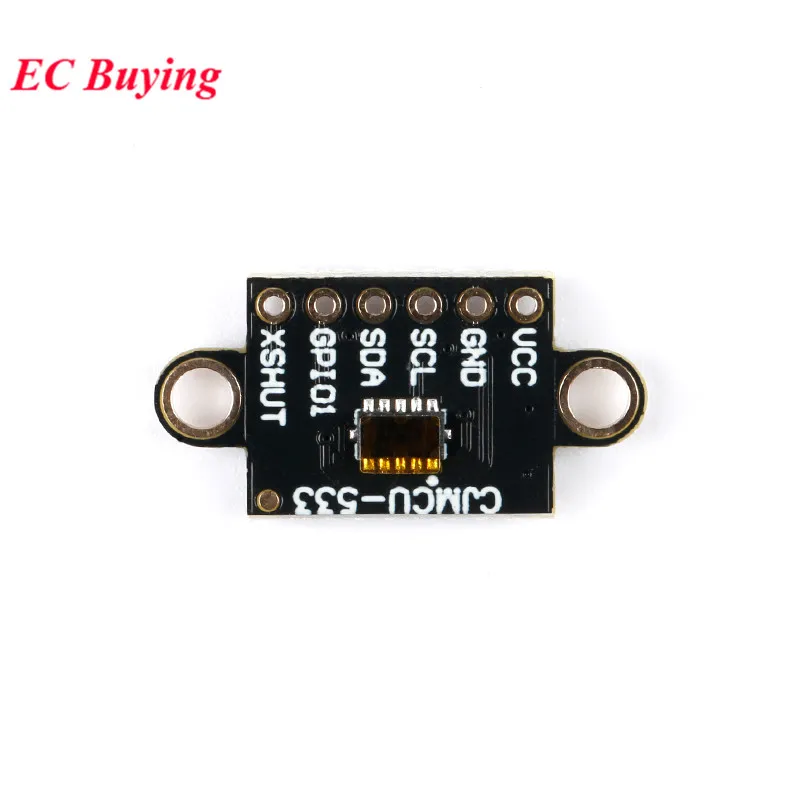

VL53L3CX Time-of-Flight ToF Laser Ranging Sensor Module Breakout 3M 940nm IR Laser Distance I2C IIC For Arduino CJMCU-533

$8.09

9850 in stock

SKU: 1005001519630278 Category:

Description

  • Brand Name: EC Buying
  • Origin: CN(Origin)
  • Condition: New
  • Type: Voltage Regulator
  • Model Number: CJMCU-533 VL53L3CX
  • Operating Temperature: –
  • Supply Voltage: –
  • Dissipation Power: –
  • is_customized: Yes
  • Application: –
  • Package: TQFP

VL53L3CX Time-of-Flight ToF Laser Ranging Sensor Module Breakout 3M 940nm IR Infrared Laser Distance I2C IIC For Arduino CJMCU-533

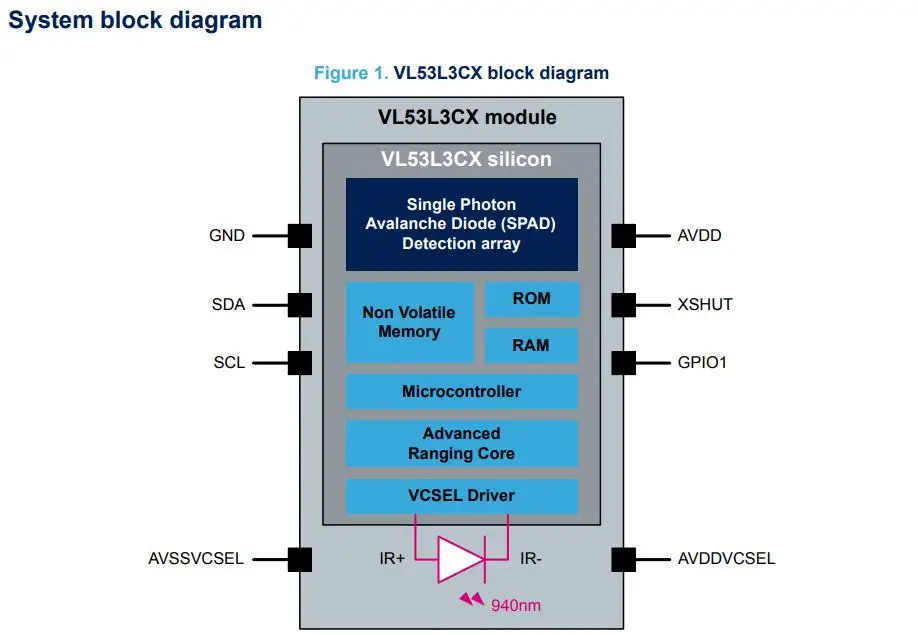

VL53L3CX combines high-performance proximity and ranging sensors with multi-target distance measurement and automatic smudge correction functions. The miniature reflowable package integrates a single photon avalanche diode (SPAD) array and physical infrared filter to achieve the best ranging performance under various ambient lighting conditions, and is equipped with various cover glass windows. The VL53L3CX combines the advantages of a high-performance proximity sensor, excellent short-distance linearity, and distance measurement capabilities up to 3 m. VL53L3CX can also detect different objects in the field of view (FoV) through deep understanding. Allows the crosstalk immunity of the cover glass to exceed 80 cm, and has a dynamic smudge compensation function.


Features:
Fully integrated miniaturized module
Transmitter: 940 nm invisible laser (VCSEL) and its analog driver
Low-power microcontroller running advanced digital firmware
Fast and accurate ranging
Based on histogram technology
Up to 300 cm + detection range at full field of view (FoV)
Can cover glass crosstalk and fingerprint smudges at a long distance
Dynamic fingerprint smudge compensation
Short distance, high precision linear
Multi-target detection and distance measurement
Typical full field of view: 25°
Easy to integrate
Reflowable components
Provides crosstalk calibration between parts or general shapes
Single power supply
Can be matched with various types of glass cover materials
I2C interface (up to 1 MHz)

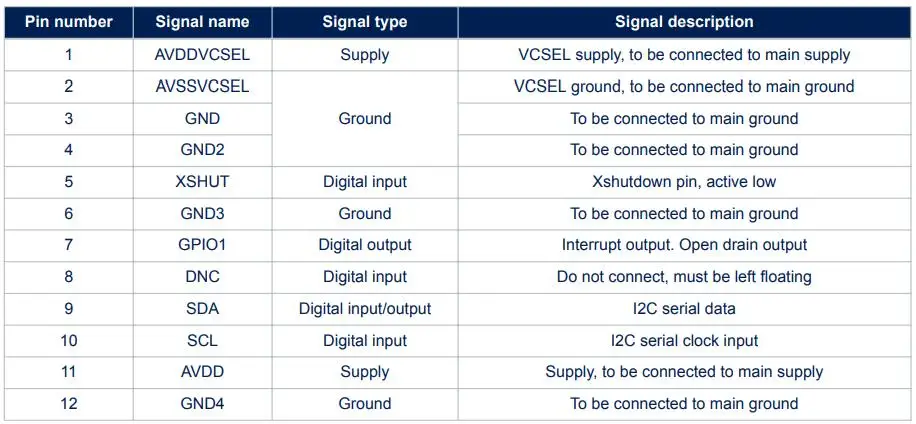

for Xshutdown (reset) and interrupt GPIO to optimize ranging operation
