Description
- Brand Name: YXO YUXINOU
- Origin: CN(Origin)
- Certification: ce
- Model Number: LF-LL
- Voltage: 3V
- Current: 1A
- Item Type: BALL
1 PCS CREE XML2 LED XM-L2 T6 U2 10W WHITE Neutral White Warm White High Power LED Emitter with 12mm 14mm 16mm 20mm PCB for DIY
XLamp XM-L2 Highest-Performing, Commercially Available, Single-Die LED
Delivering breakthrough lumen output and efficacy in the XM package, the XLamp XM-L2 LED is the highest-performing, commercially available, single-die LED. Built on the SC⊃3; Technology Platform, the XLamp XM-L2 LED delivers up to 20
Low thermal resistance: 2.5C/W
Maximum junction temperature: 150C
Viewing angle: 125'
ANSI-compatible chromaticity bins
Unlimited floor life at <30C/85% RH
Reflow solderable-JEDES J-STD-020C
Electrically neutral thermal path
Technical Parameters:
Quantity:1pcs
Model Type: Cree XML2-T6
Emitted Color :Cold White/Warm White/Blue
Color Temperature: 6500K/3000K/450-455nm
DC Forward Voltage (VF): 2.9-4Vdc
DC Forward Current (IF): 3.0A
Power: 10W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

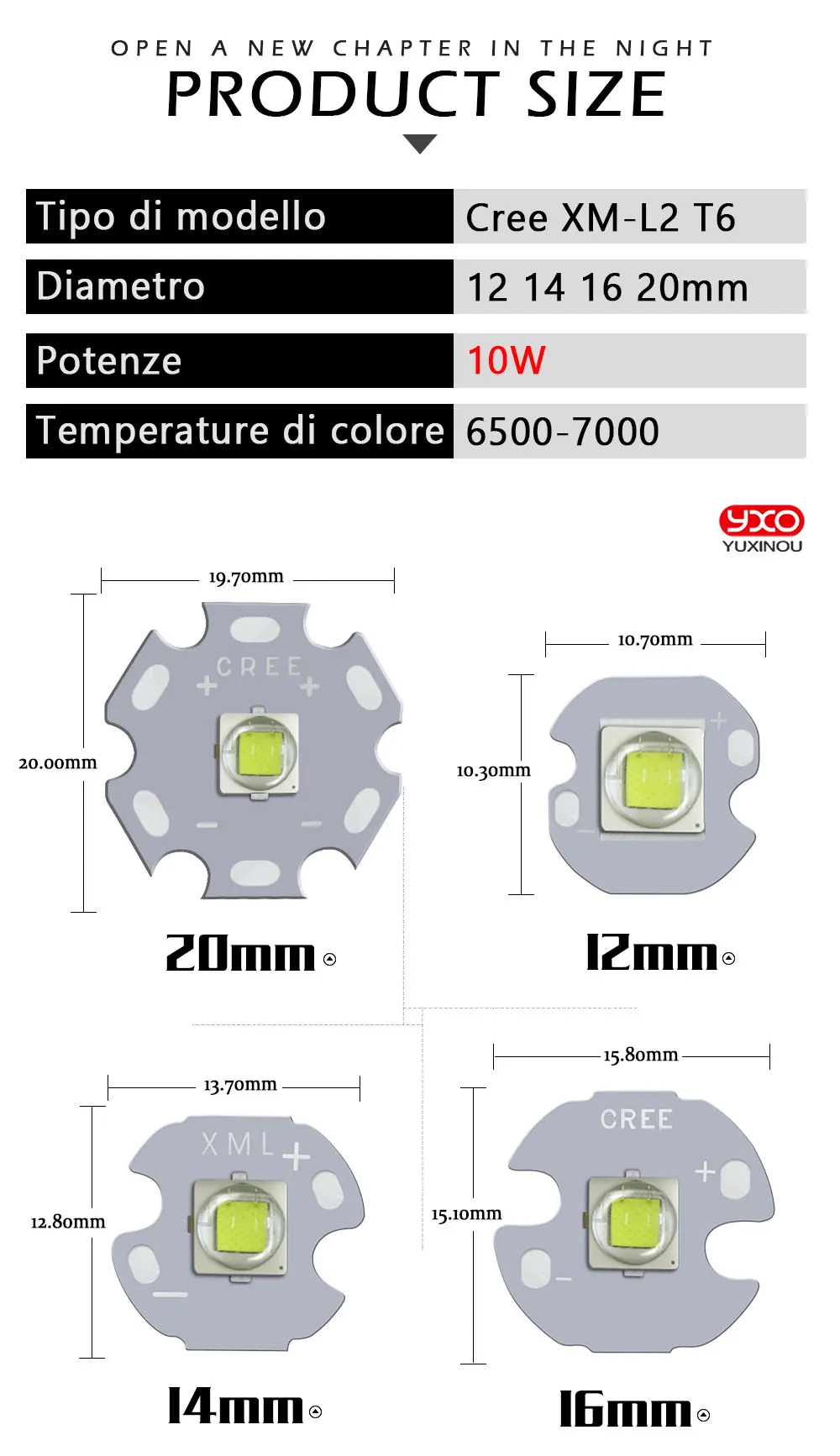

Diameter :12mm/14mm/16mm/20mm
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable – JEDEC J-STD-020C
Electrically neutral thermal path
10W 80mil
LED Bead Size：5*5mm
DC3.4V-3.8V 2500mA(MAX) 1200lm
Attention to the heat,working temperature maintained at 50 degrees Celsius or lower as possible
Features:
Very low heat generating, saving energy, environmentally friendly.
Long service life.
Low consumption, high brightness.
Comfortable light source, harmless for skin and eyes.
Great for making light sources for fish tank, decoration light, etc
Made of high quality material, durable for daily us
Package Included:
1PCS CREE XML2 Led Emitter
