Description
- Brand Name: Ziqqucu
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Model Number: Diode module
- Application: Computer
- Operating Temperature: standard
- Supply Voltage: 9-80V
- Dissipation Power: 50A
- Package: SOP
- is_customized: Yes
Product selling point
1: Widely used
2: High performance-price ratio
3: Simple and easy to operate

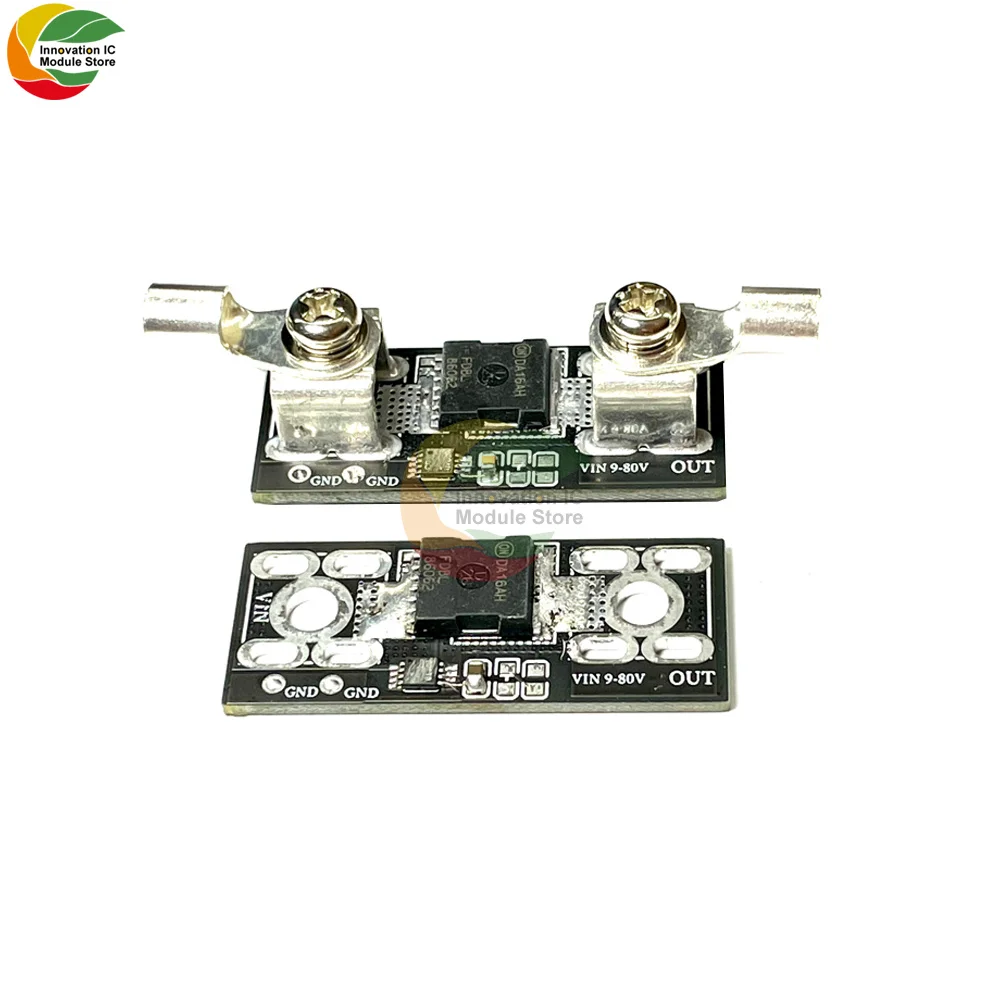

4: There are two options: terminal and without terminal
5: Small appearance
Parameter Description:
Working voltage: 9-80V
Working current: 50A (It is recommended to strengthen heat dissipation when using more than 25A)
Working internal resistance: 2 milliohms
Circuit board size: 44*18mm
Weight: 12g/15g
100V/300A high current 2 milliohm low internal resistance MOS
Special note: The voltage drop is 0.04V. If you want to measure the input and output voltage drop values, please connect to the 9V-80V power supply and measure again. The management IC will not work when there is no power input!
Note: must be grounded
Checklist
1*diode module
