Description
- Brand Name: SONGXIN LIGHT
- Type: LED
- Origin: CN(Origin)
- Condition: New
- Max. Forward Current: 350ma
- Max. Forward Voltage: 3.0-3.4v
- Max. Reverse Current: cool white

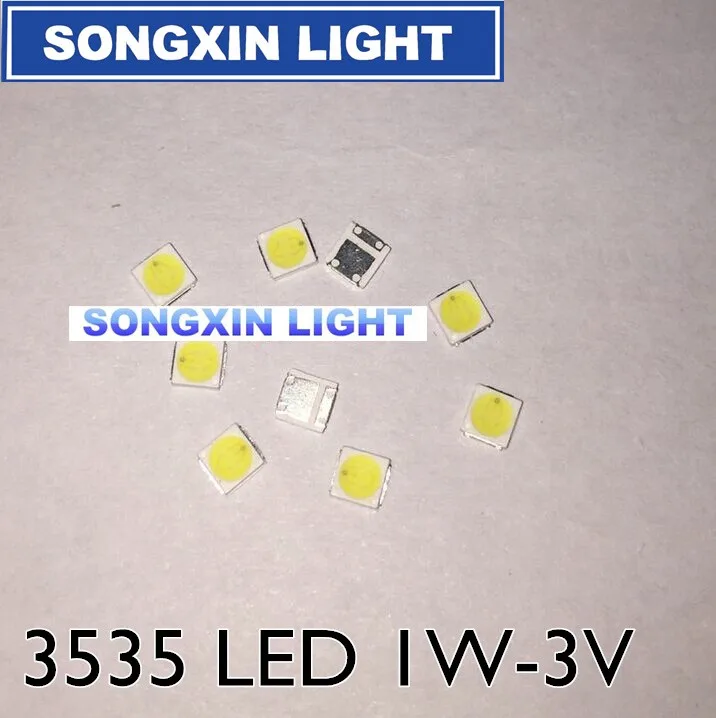

- Model Number: 3535 led
- Max. Reverse Voltage: 3.5*3.5*0.6mm
- Package Type: Surface Mount
MODEL NAME : MSL-638PZW-E43S LDLB
Manufacturer : UNI
Origin : China
Package Model:Loaded Quantity 1500PCS Per Reel
Forward Current (IF ): 350mA
Pulse Forward Curren t1 (IFp): 500mA
Reverse Current (IR): 25mA
Reverse Voltage (VR): 5V (5mA)
Power Dissipation (PD): 1.25W
Operatin Tgemperature (Topr): -30 – +85 ° C
Storage Temperature (Tstg): -40 – +85 ° C
Soldering Temperature (Tsld): Reflow Soldering:260 ° C
for 10secs
Hand Soldering:350 ° C
for 3secs
Junctio Tnemperature (Tj ): 125 ° C
Forward Voltage (VF): 3.0-3.6V (300mA)
Luminous Flux (LM): 87.5-90lm (300mA)
Luminous Intensity ( IV ) : cd (280mA)
Wavelength (nm) : -nm mA
CIE : x=0.270 y=0.240 (300mA)
Color Correlated Temperature (CCT):
CRI : °
Viewing angle : 120°

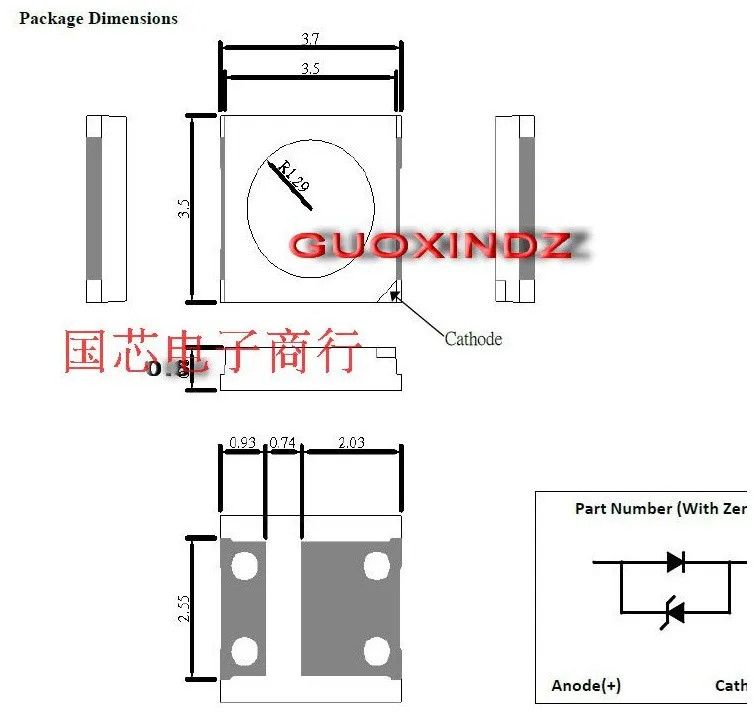

Lead Frame Type LED Package: 3.5×3.5×0.6mm L×W×H d=mm
