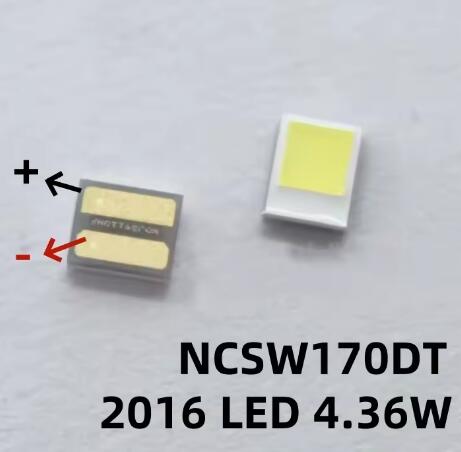

10PCS For Automotive LED Application High Power LED 4.36W 3V 1815 Cool White NICHIA NCSW170DT
Description
MODEL NAME : NCSW170DT
Manufacturer : NICHIA
Origin : Japan
Package Model:Loaded Quantity PCS Per Reel
Forward Current (IF ): 1200mA
Pulse Forward Curren t1 (IFp): 1500mA
Reverse Current (IR): 85mA
Reverse Voltage (VR): V (mA)
Power Dissipation (PD): 4.36W
Operatin Tgemperature (Topr): -40 – +125 °C
Storage Temperature (Tstg): -40 – +125 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
Manufacturer : NICHIA
Origin : Japan
Package Model:Loaded Quantity PCS Per Reel
Forward Current (IF ): 1200mA
Pulse Forward Curren t1 (IFp): 1500mA
Reverse Current (IR): 85mA
Reverse Voltage (VR): V (mA)
Power Dissipation (PD): 4.36W
Operatin Tgemperature (Topr): -40 – +125 °C
Storage Temperature (Tstg): -40 – +125 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C
for 10secs
Hand Soldering:350 °C
for 3secs
Junctio Tnemperature (Tj ): 150°C
Forward Voltage (VF): 2.75-3.55V (1000mA)
Luminous Flux (LM): 225-325lm (1000mA)
Luminous Intensity ( IV ) : cd (1000mA)
Wavelength (nm) : nm 1000mA
CIE : x=0.286 y=0.240 (1000mA)
Color Correlated Temperature (CCT): K
CRI : °
Viewing angle : 120°
Lead Frame Type LED Package: 1.8×1.45×0.75mm L×W×H d=mm
