Sale!

2pcs 980nm 30mW Infrared IR Laser Diode Dot Module wIth TTL 0-15KHz 5V DC 8x13mm IR Light

$13.13

Clear
SKU: 10000060616869 Category:

Description

  • Brand Name: Jolooyo
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: 980MD-30-0813-TTL-BL 2pcs

Parameter:

Wavelength(nm):980

Output Power(mw):30

Working Current:<100mA Working Voltage: 5.0VDC Duty Cycle: 5 minutes on, 1 minute off TTL frequency:0-15KHz TTL modulation Voltage:0-5V Off low, high open, normal status open Dimensions:8mmx13mm

Detail:

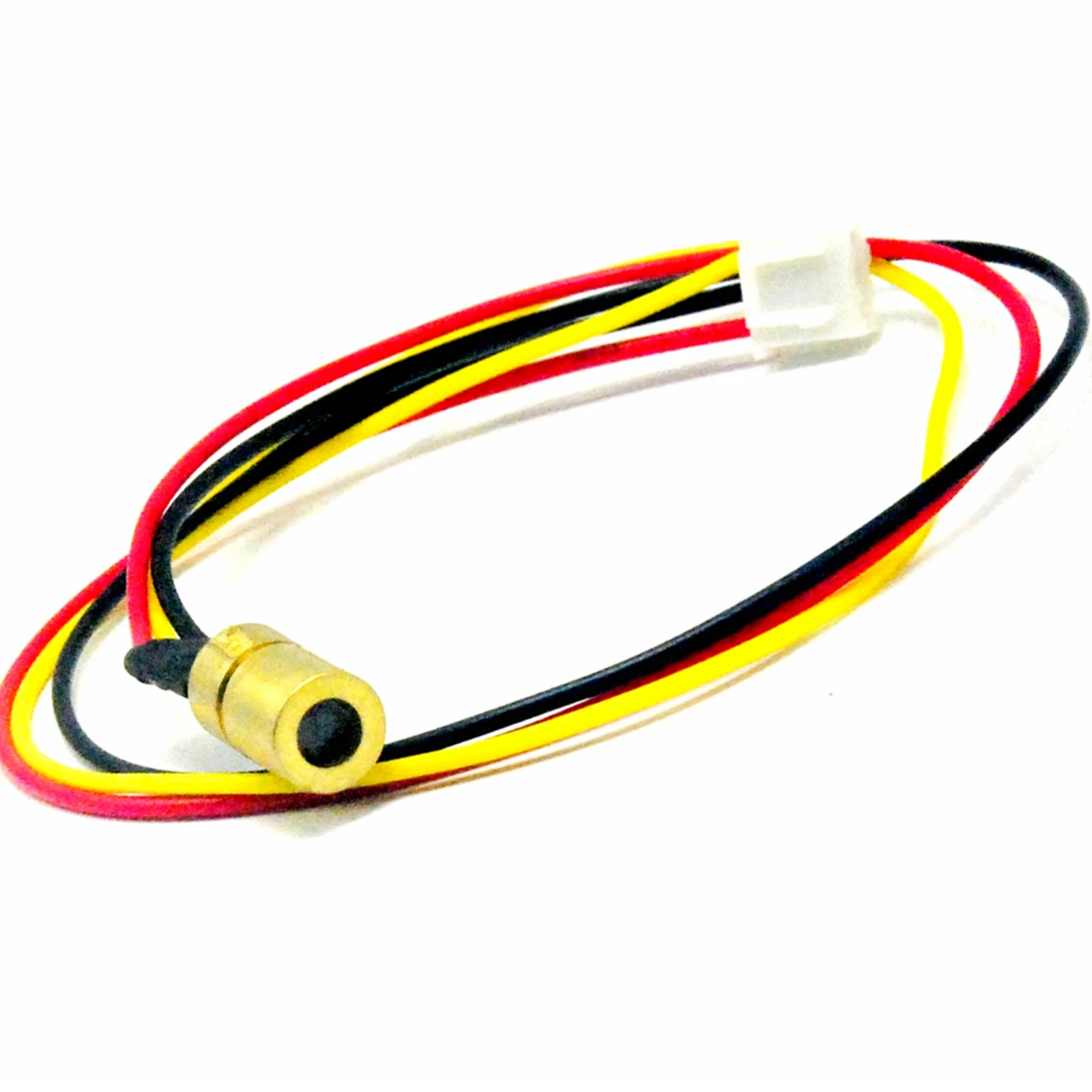

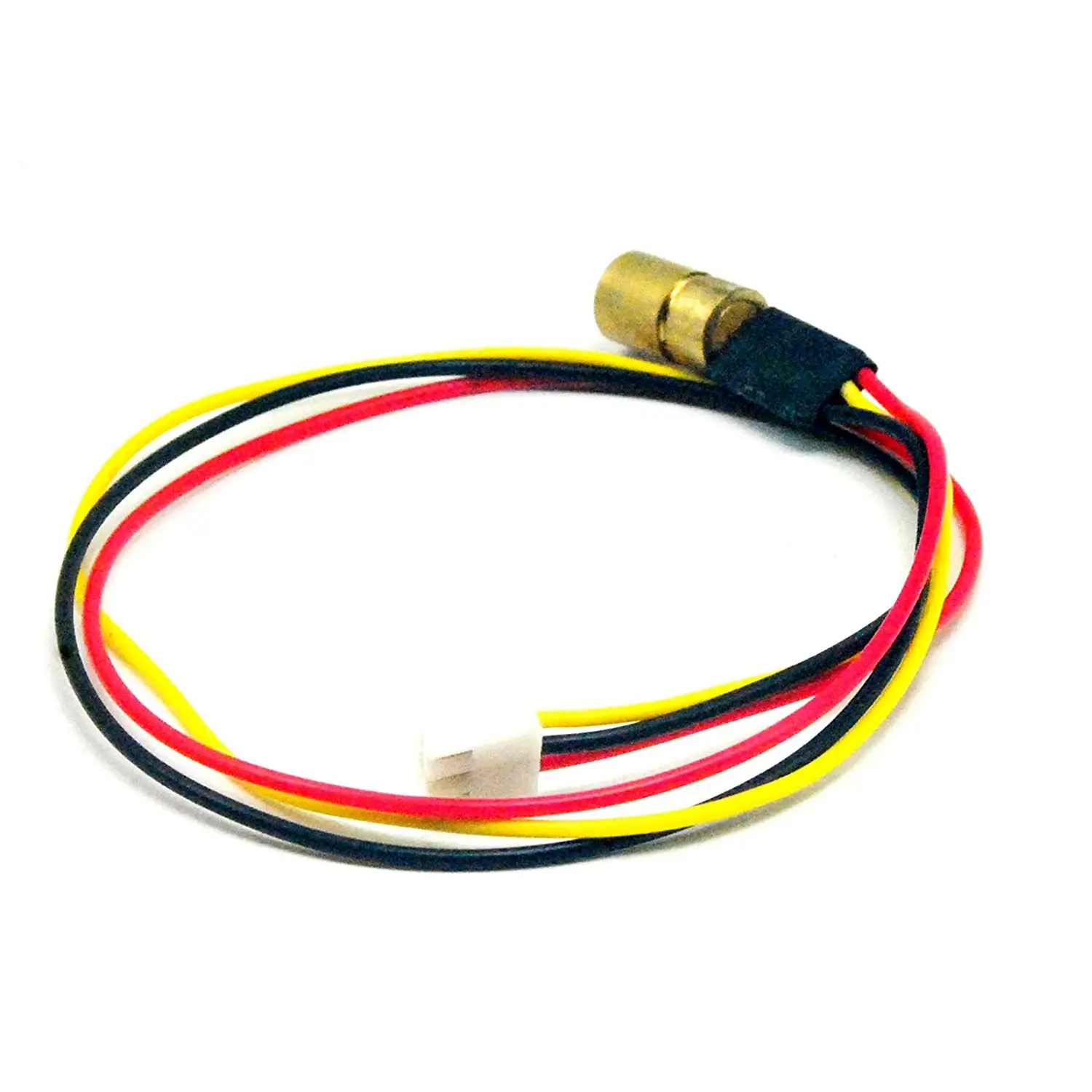

Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive,If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.

This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.

Package:

2pcs x 980nm 30mW Infrared IR Laser Dot Diode Module w/ TTL 0-15KHz 5V DC 8x13mm
