4-Pin Photodiode Module Light Brightness Detection Photoelectric Brightness Module


SKU: 4000078142081 Category:


  • Brand Name: UMProb
  • Origin: CN(Origin)
  • Usage: Consumption Sensor
  • Material: Mixture
  • Type: Optical-Electronics Sensor
  • Output: Analog Sensor
  • Theory: Inductance Sensor
  • Model Number: 4-pin Module
  • is_customized: Yes

Dear buyer:
If you choose the"economic"mode of transportation, then in the peak season of logistics, some countries will delay receiving packages for a while. If you cannot accept the delay, then please choose airmail, faster transportation and protection.
We provide customized services and a greater number of priority services. You can contact me when you need more quantity and customized solutions.You will get a discount“exclusive” VIPprice. Look forward to working with you! I will be your best supplier: S+S+S+
Collect my store, become my fans, in my store discount activities, fans will get a higher VIP discount!
Buying Tip:When you receive the product, the product appears”subtle scratches, broken, bent pins”, in the case of no effect on the use, I will not accept your controversy, if you do not agree,  please do not in my The purchase of the store, of course, if you accept this subtle product situation, in a reasonable case, when we avoid the dispute, I will be able to offer you some discounts on your new order.

Light brightness detection, light brightness sensor, directional, only inductive light source directly in front of the sensor, for better light-seeking effect.
1. It can detect the brightness and light intensity of the surrounding environment (compared with the photoresistor, the directionality is better, and the light source in the fixed direction can be perceived)

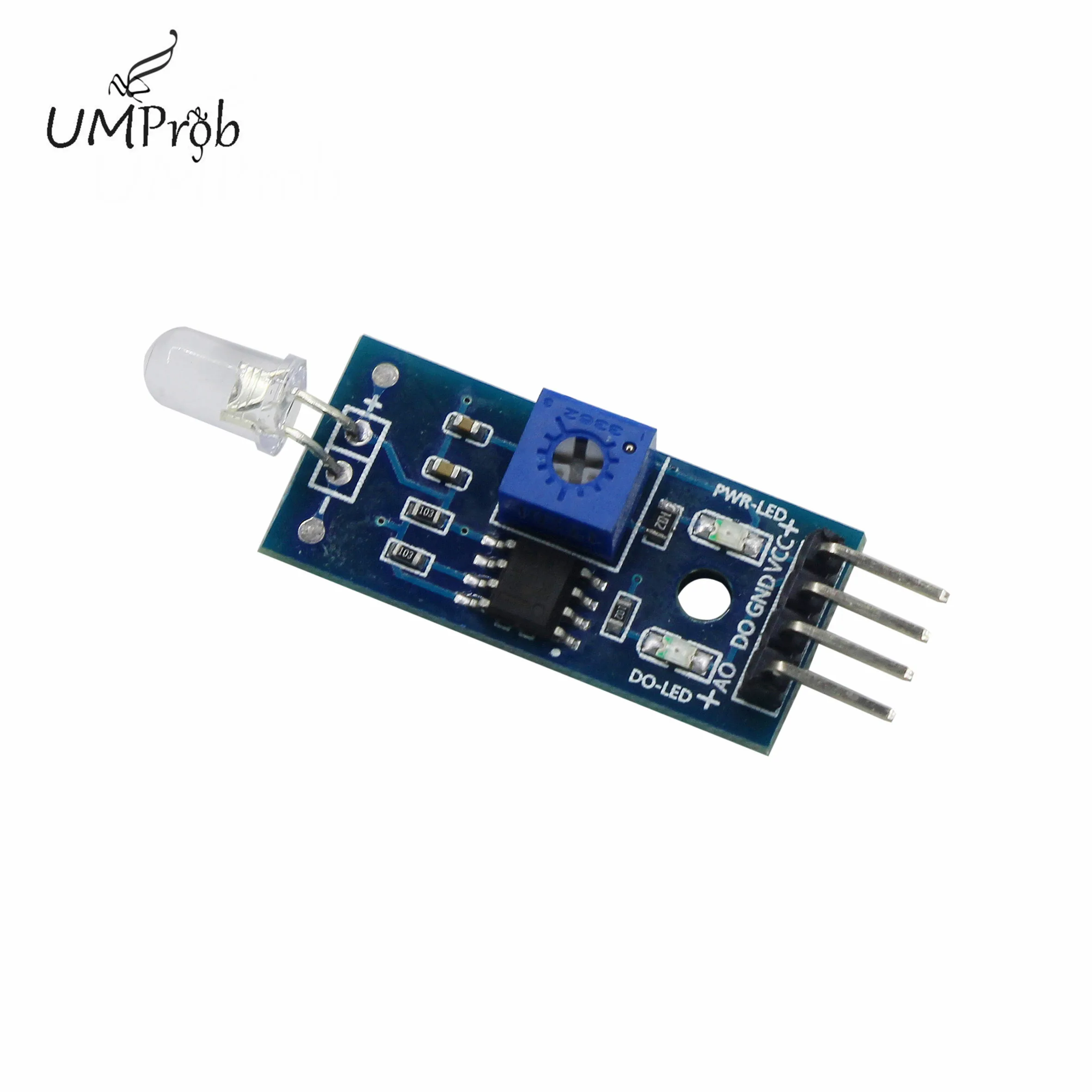

2. Sensitivity is adjustable (blue digital potentiometer adjustment in the figure)
3. Working voltage: 3.3V-5V
4. Output form: DO digital switch output (0 and 1) and AO analog voltage output
5. With fixing bolt holes for easy installation
Instructions for use
1. Photodiode module is most sensitive to ambient light intensity. It is generally used to detect the brightness and light intensity of the surrounding environment. In most cases, it can be used with the photoresistor sensor module. The difference between the two is that the photodiode module has good directionality. A light source that senses a fixed direction.
2. When the module is in no light condition or the light intensity does not reach the set threshold, the DO port outputs a high level. When the ambient light intensity exceeds the set threshold, the module D0 outputs a low level.
3. The small-plate digital output D0 can be directly connected to the single-chip microcomputer, and the high-low level is detected by the single-chip microcomputer, thereby detecting the change of the light intensity of the environment.

Please don't open dispute and leave any bad feedback, if you have any question, feel free to contact us,we will give you satisfactory answer. Hope you understand us, thank you in advance.
Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our be
st to solve any problems and provide you with the best customer service.
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 5 days once your payment is completed.
We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
All order will ship out in 1-5 buiness after payment verify .Pls wait in patient.
China Post mail is not fast , Usally need 15-60days arriived.If in urgent .Pls choose DHL/ Fedex/EMS.We can write low value for cutomer if in need!
China Post Ordinary Small Packet Plus just can track to the domestic of our country,but it not effect your receiving.
China Post Ordinary Small Packet Plus and China Post Registered Air Mail all can track in
