4 – pin photodiode module light brightness detection photoelectric switch intelligent car board

$0.84

99810 in stock

SKU: 1005004399951246 Category:

Description

  • Origin: CN(Origin)
  • Condition: New
  • Type: Voltage Regulator
  • Model Number: 4 – pin photodiode module
  • Model Number: 4 – pin photodiode module

Product parameters:

product name:PhotosensitivediodeModule(Digital switch DO output 0/1)

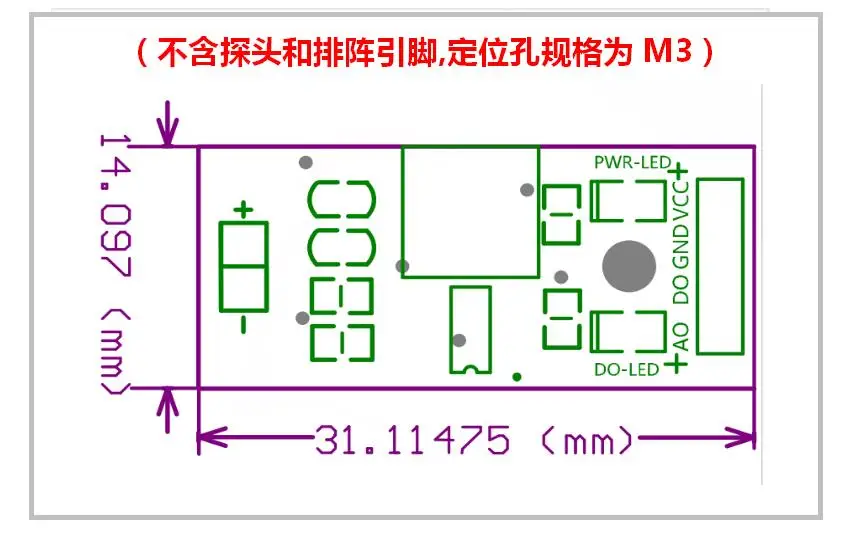

Product Size:45.50Mm * 14.10mm * 8.50mm(Length x width x height)

color: blue         Product weight: 3.40G (with packaging)

Packing: single module static bag Packaging material: FR4 + electronic components



Product Dimension:

12
product description :



  Photodiode moduleThe most sensitive to ambient light intensity, generally used to detect the surrounding environment, brightness and light intensity, in most cases canAnd photosensitive sensor module common, The difference between the two,Photodiode module direction is better, you can sense the fixed direction of the light sourceThe

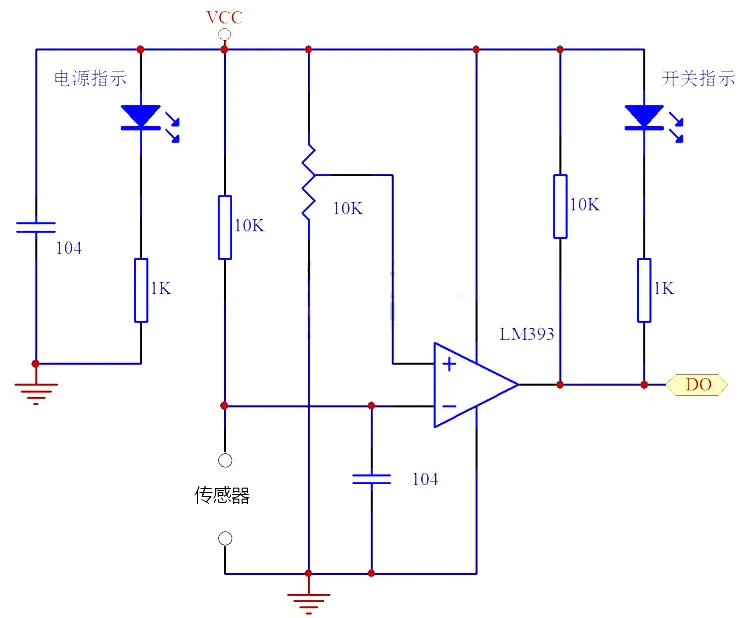

The sensor module to adapt to the ambient light, the use of photodiode sensor for ambient light detection, the module in the ambient lightNo light orbrightThe threshold can not be set, DO outputHigh level, When the external environmentThe light brightness exceeds the set threshold, DO outputLow level, The operating voltage is 3.3V-5V. The brightness of the sensor can be adjusted by the potentiometer. Photoresistor module is the most sensitive to ambient light, generally used to detect the ambient light intensity, trigger single-chip or relay modules. DO output can directly drive the shop relay module, which can form a light control switch.



Product performance:



1.whenAmbient lightNo light orThe brightness does not reach the set thresholdWhen DO is lost

OutHigh level, When the external environmentThe light brightness exceeds the set thresholdWhen DO

End outputLow levelTheDetectionbrightnessCan be adjusted by potentiometer,On time

needleAdjust the potentiometer, detectbrightnessincrease;CounterclockwiseAdjust the potentiometer, detectbrightness

cut backThe

2TheComparator output, signal clean, good waveform, drive ability, more than

15mA.

3TheSensor module output port OUT can be directly connected with the microcontroller IO port that is

Yes, you can also drive a 5V relay directly; Connection: VCC-

VCC; GND-GND; OUT-IO

4, can be used 3.3 V-5V DC power supply to the module. When the power supplyTurn on

Time,redThe power light is on;



Instructions for use:



1TheVCC external 3.3V-5V voltage (can be directly with the 5v microcontrolleror3.3v single-chip connected)

2TheGND External GND

3TheDODigital output interface (0 and 1)



4 TheAODigital output interfaceAnalog quantity)
