Description
- Brand Name: Jessinie
- Origin: CN(Origin)
- Condition: New
- Type: Voltage Regulator
- Model Number: OPT101 Light Sensor Module
- Operating Temperature: 0~70
- Supply Voltage: 2.7~36V
- Dissipation Power: CJMCU-101
- is_customized: Yes
- Application: Other
- Package: TQFP

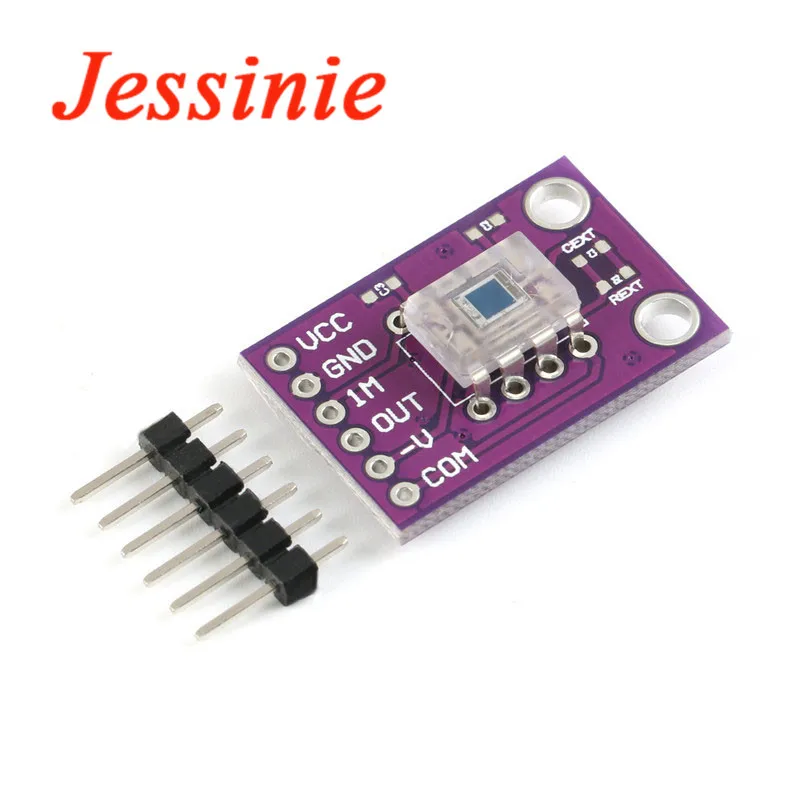

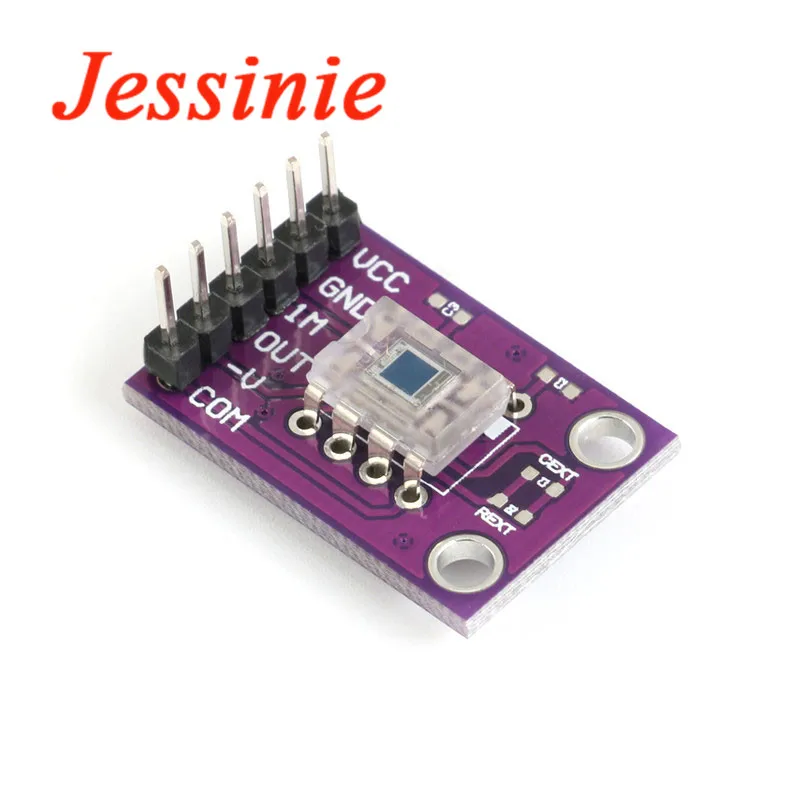

OPT101 Light Analog Light Intensity Sensor Module Single Chip Photoelectric Diode 14KHz CJMCU-101

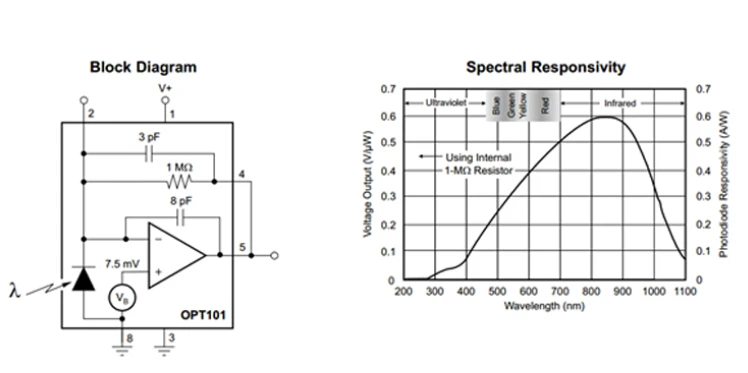

![](https://ae01.alicdn.com/kf/H9c9f0b0140df4d5fa8709f0b7ed19b7aM.jpg?width=748&height=373&hash=1121)
-
Working voltage: 2.7 ~ 36V
-
Working temperature: 0°C~70°C
-
Photodiode light irradiation area: 5.2mm2
-
Photocurrent: 0.45A/W (λ = 650nm)
-
Output voltage ratio: 0.45V/uW
-
Analog voltage output range: Vs-1.15
-
Bandwidth: 14KHz
-
Static power consumption: 120uA

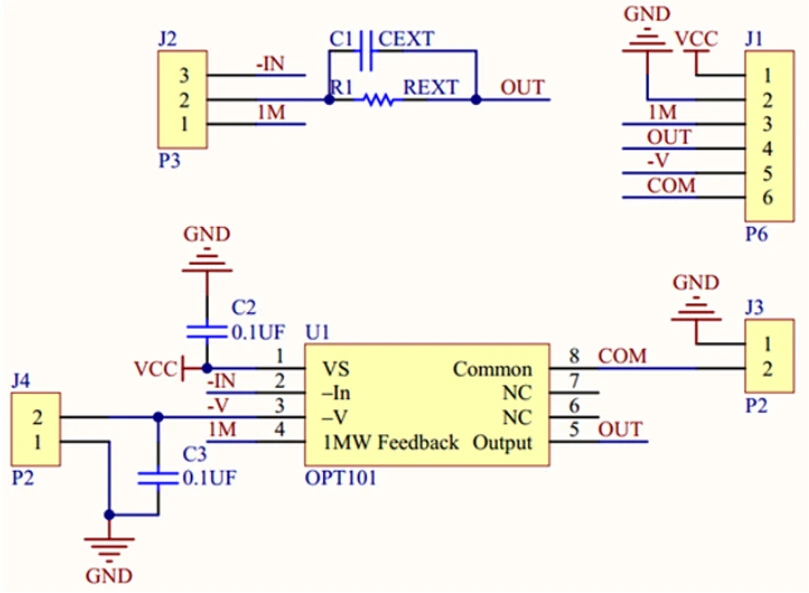

![](https://ae01.alicdn.com/kf/H88a5e267f5eb418abc56cd0f71c92da0K.jpg?width=809&height=593&hash=1402)
-

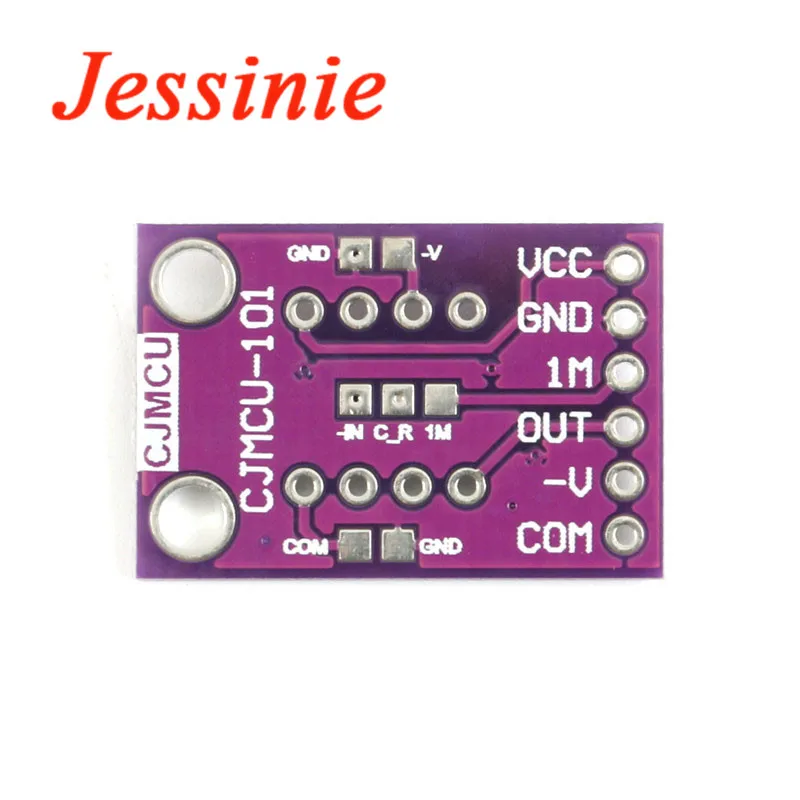

VCC: power supply positive pin
-
-V: negative supply
-
-IN: the inverting input of the internal op amp and the negative of the internal photodiode,
-
Do not connect or apply feedback that is abandoned in the operation
-
1M: Internal 1MΩ feedback resistor input
-
OUT: Amplifier output
-
COM: Internal photodiode positive, generally connected to GND
-

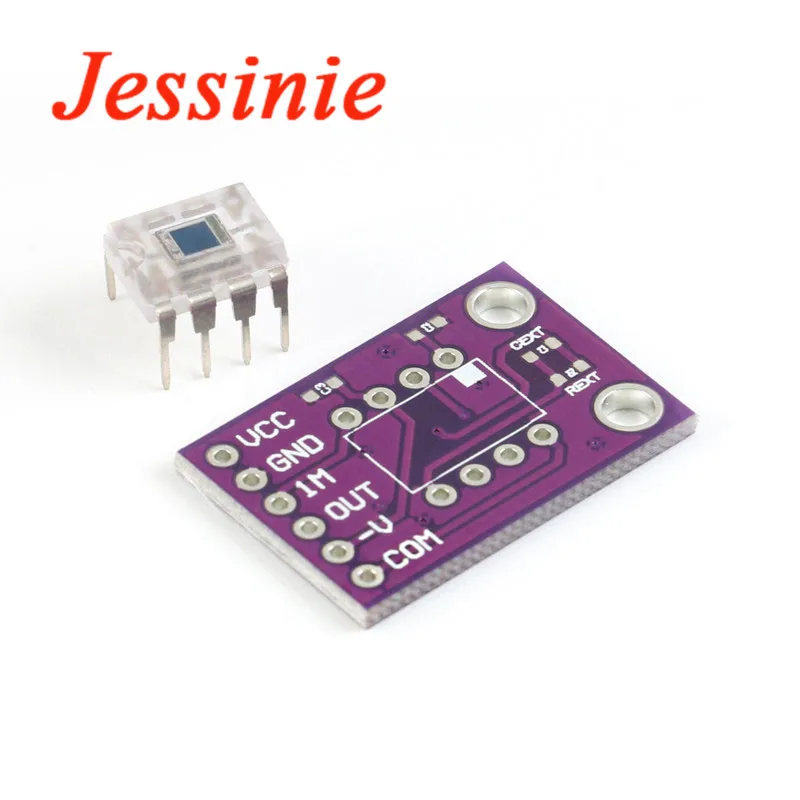

Note: The module does not solder the CEXT external capacitor and the REXT external resistor, leaving the pad for easy extension.
![](https://ae01.alicdn.com/kf/Hfa8089ffa41a4b6288ef6d9d343697afl.jpg)
![](https://ae01.alicdn.com/kf/Hc9cb45e1e66543c88050feed270d2271u.jpg)
![](https://ae01.alicdn.com/kf/Hf182de535b7c43489b3dbd6af563a8d14.jpg)
![](https://ae01.alicdn.com/kf/Hbca50c13dea1442aa2db7fa4f3d6f3326.jpg)
