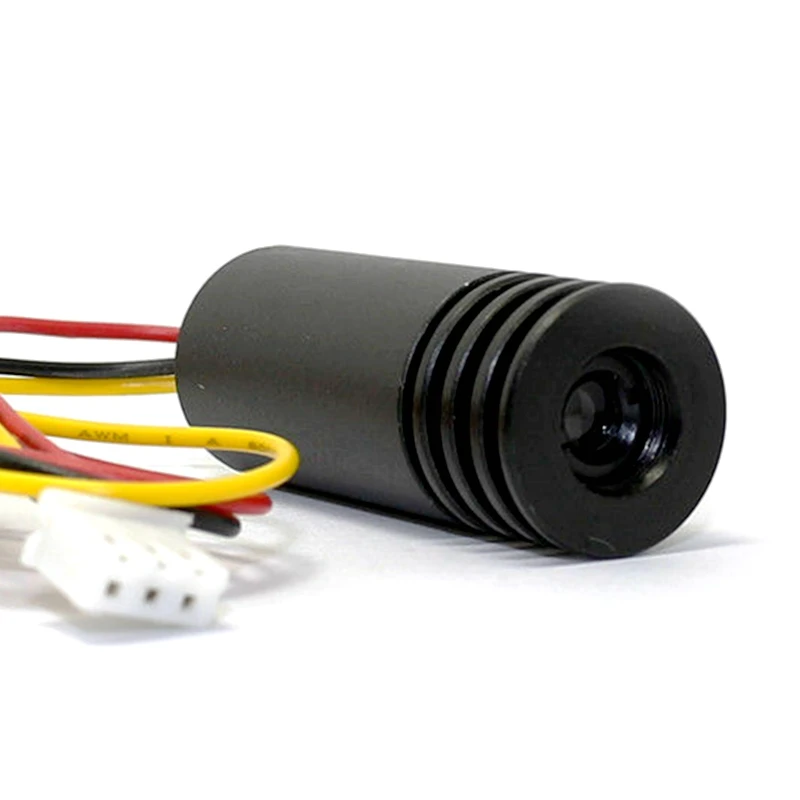

Focusable 980nm 120mw Infrared IR Laser Diode Dot Module 5V DC with TTL 0-15KHz 18x45mm


SKU: 1005002176359857 Category:


  • Brand Name: Jolooyo
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: 980MD-120-1845-TTL-BL



Output Power:120mW

Current : <350mA

Working Voltage:5V DC

Working Temperature:+15 ℃~+35 ℃

Laser Shape:Dot(rectangular to oval)


TTL frequency:0-15KHz

TTL modulation Voltage:0-5V Off low, high open, normal status open


Focusable: The Lens focus is adjustable, not fixed, can adjust to an appropriate spot size, and then fix it.

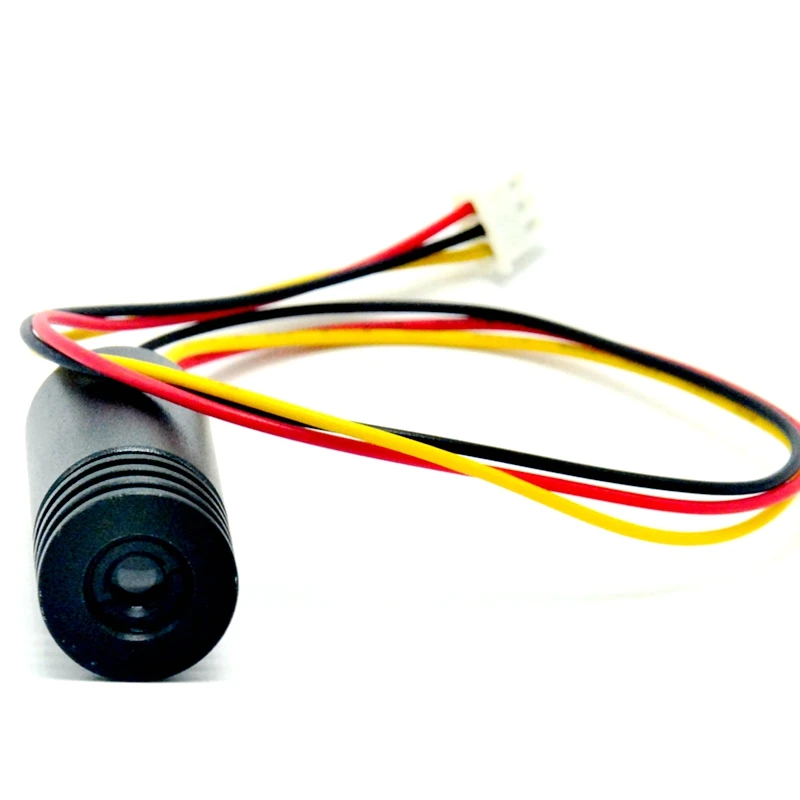

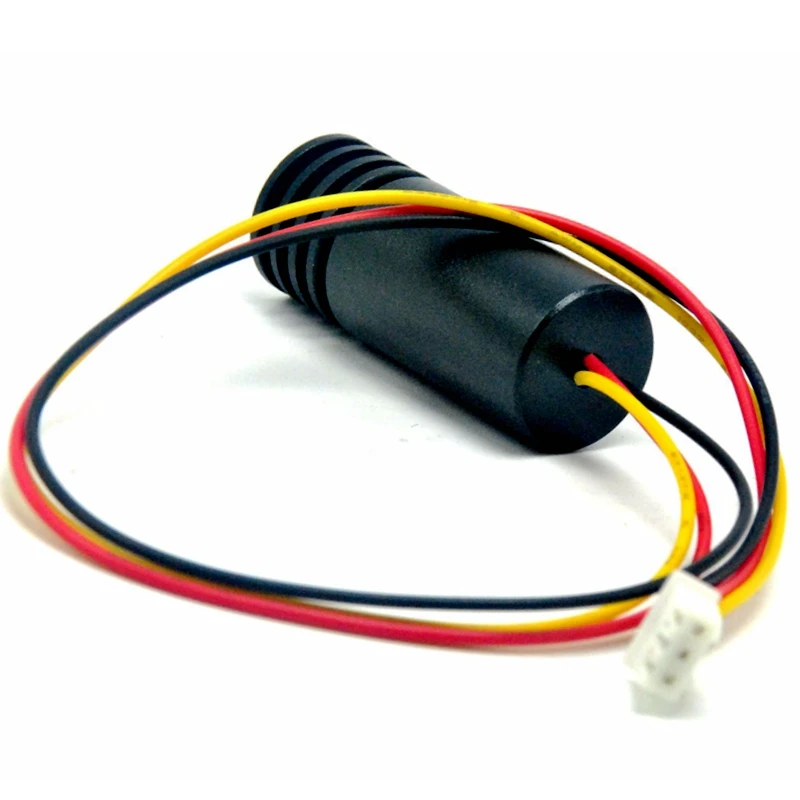

Three-wire input, the red wire is positive, black wire is negative, TTL signal yellow wire is positive.


1.This 980nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.

2.Working Voltage 5.0V, red wire for 5V+, black wire commonly for 5V- and also for TTL -, Yellow wire for TTL +. If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+) to 5v+.

3.It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.Buyers who buy IR lasers please make sure you know it.

The 980nm Laser is invisible, but can be seen by 980nm display board(, it will be displayed as a green dot on the board.


1x Focusable 80nm 120mw Infrared IR Laser Dot Module w/TTL 0-15KHz 18x45mm 5V DC
