Description

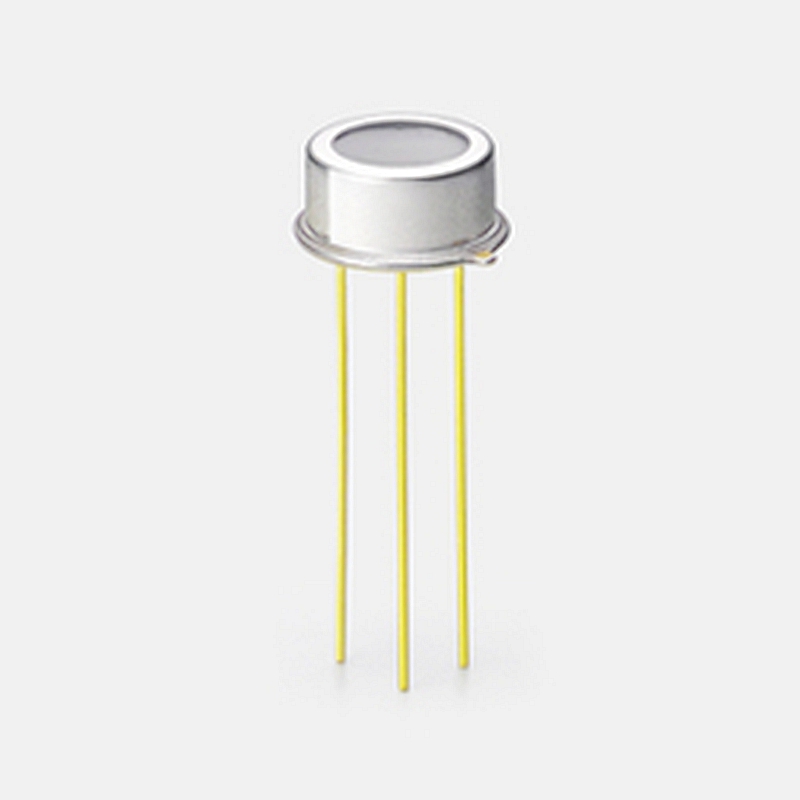

Hamamatsu G10899-005K Wide spectral response range (0.5 to 1.7 μm), Active area: 0.5 mm dia
The G10899-005K is an InGaAs PIN photodiode that covers a wide spectral response range from 0.5 μm to 1.7 μm. While standard InGaAs PIN photodiodes have spectral response ranging from 0.9 μm to 1.7 μm, the G10899-005K has sensitivity extending to 0.5 μm on the shorter wavelength side. A wide range of spectrum can be detected with a single detector. The G10899-005K also features low noise and low dark current.
Features
– Wide spectral response range
– Low noise, low dark current
– Large active area available
Specifications
| Photosensitive area | φ0.5 mm |
|---|---|
| Number of elements | 1 |
| Package | Metal |
| Package Category | TO-18 |
| Cooling | Non-cooled |
| Spectral response range | 0.5 to 1.7 μm |
| Peak sensitivity wavelength (typ.) | 1.55 μm |
| Photosensitivity (typ.) | 1 A/W |
| Dark current (max.) | 2.5 nA |
| Cutoff frequency (typ.) | 150 MHz |
| Terminal capacitance (typ.) | 20 pF |
| Noise equivalent power (typ.) | 9×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=1 V, Cutoff frequency: VR=1 V, RL=50 Ω, Terminal capacitance: VR=1 V, f=1 MHz |
