Description

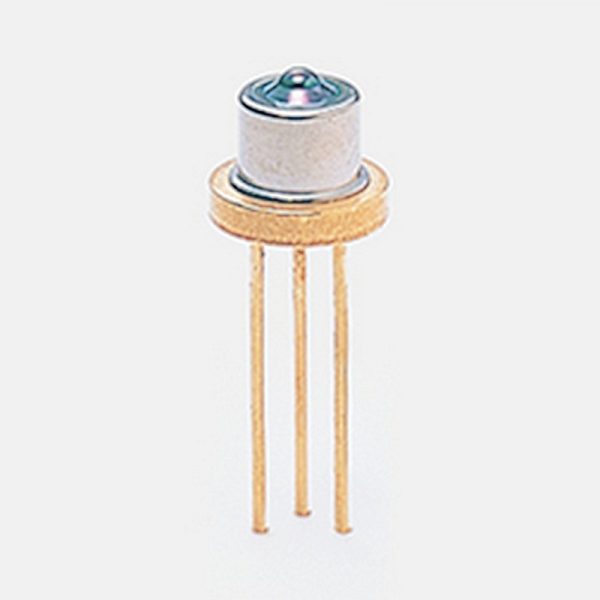

Hamamatsu G6854-01 Spherical lens window package for efficient fiber coupling
Features
– Easy optical axis alignment
– High fiber coupling efficiency
– CD package
– Package weldable by YAG laser
– Spherical lens window with AR coating minimizes return light input
Specifications
| Photosensitive area | φ0.08 mm |
|---|---|
| Number of elements | 1 |
| Package | Metal |
| Package Category | TO-18 (with lens) |
| Cooling | Non-cooled |
| Spectral response range | 0.9 to 1.7 μm |
| Peak sensitivity wavelength (typ.) | 1.55 μm |
| Photosensitivity (typ.) | 0.95 A/W |
| Dark current (max.) | 0.4 nA |
| Cutoff frequency (typ.) | 2000 MHz |
| Terminal capacitance (typ.) | 1 pF |
| Noise equivalent power (typ.) | 2×10-15 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR=5 V, Cutoff frequency: VR=5 V, RL=50 Ω, λ=1.3 μm -3 dB, Terminal capacitance: VR=5 V, f=1 MHz |
