Description

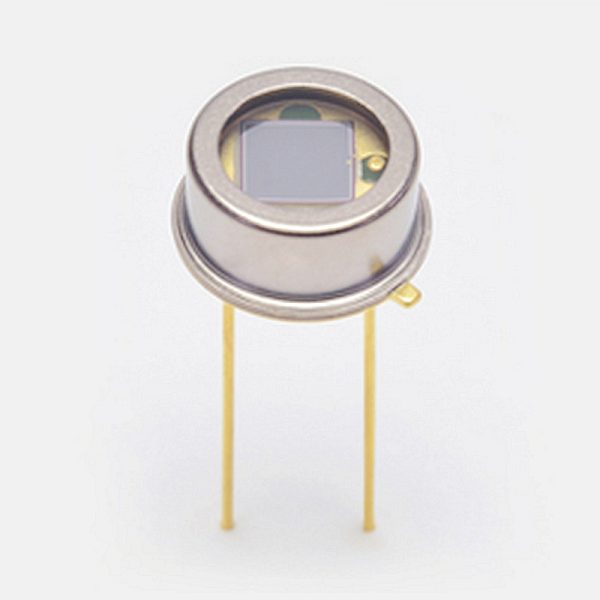

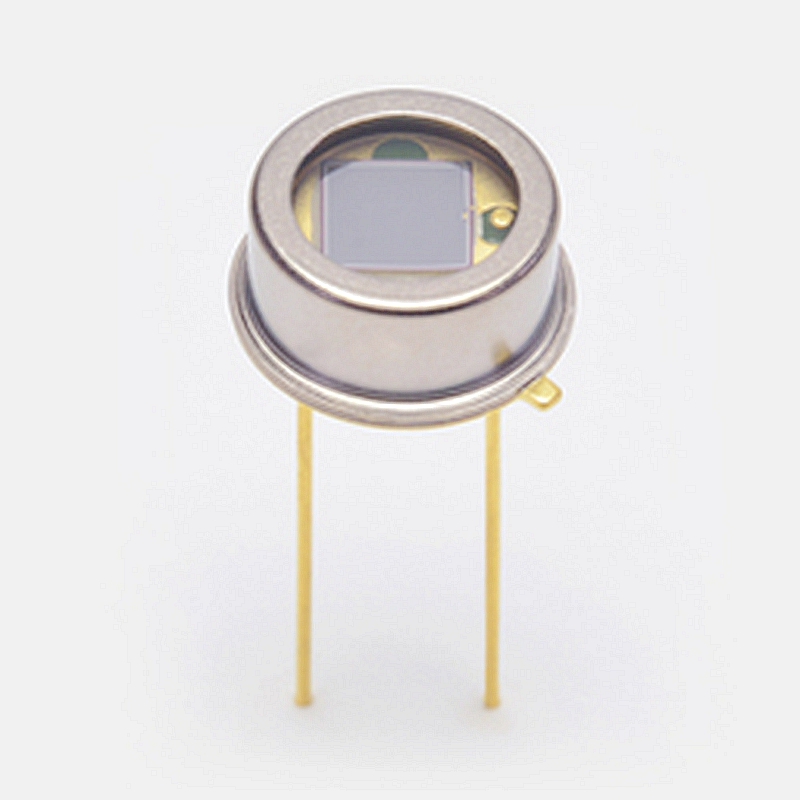

Hamamatsu S1223-01 For visible to near IR, precision photometry
Features
– High sensitivity in visible to near infrared range
– High reliability
– High-speed response: fc=20 MHz
– Low capacitance
Specifications
| Photosensitive area | 3.6 × 3.6 mm |
|---|---|
| Package | Metal |
| Package category | TO-5 |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 30 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.52 A/W |
| Dark current (max.) | 10000 pA |
| Cutoff frequency (typ.) | 20 MHz |
| Terminal capacitance (typ.) | 20 pF |
| Noise equivalent power (typ.) | 1.3×10-14 W/Hz1/2 |
| Measurement condition | Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=20 V, Cutoff frequency: VR=20 V, Terminal capacitance: VR=20 V, f=1 MHz, Noise equivalent power: VR=20 V, λ=λp, unless otherwise noted |
