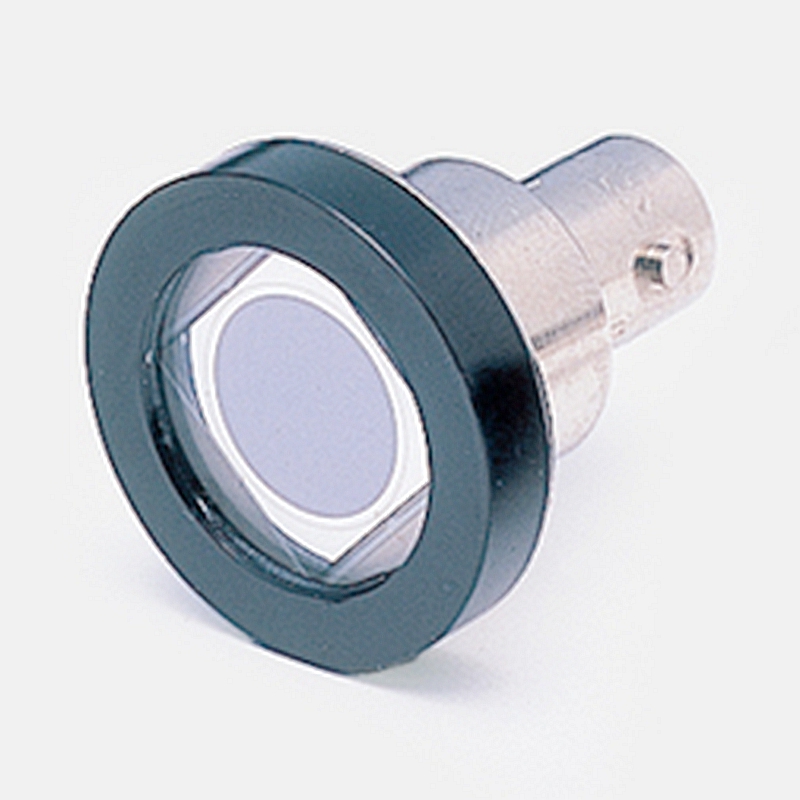

Hamamatsu S2281 Si photodiode with BNC connector
The S2281 is a Si photodiode sealed in a metal package with a BNC connector. This configuration allows easy connection to Hamamatsu C9329-01 photosensor amplifier. The large photosensitive area makes the S2281 well suited for optical power meters. Hamamatsu also provides E2573 BNC-BNC coaxial cable (length: 1 m) as an option.
Features
– Metal package with BNC connector
– High sensitivity
– High reliability
Specifications
| Photosensitive area | φ11.3 mm |
|---|---|
| Package | Metal |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 5 V |
| Spectral response range | 190 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.5 A/W |
| Dark current (max.) | 500 pA |
| Rise time (typ.) | 3 μs |
| Terminal capacitance (typ.) | 1300 pF |
| Noise equivalent power (typ.) | 1.8×10-14 W/Hz1/2 |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, Noise equivalent power: VR=0 V, λ=λp, unless otherwise noted |
