Description

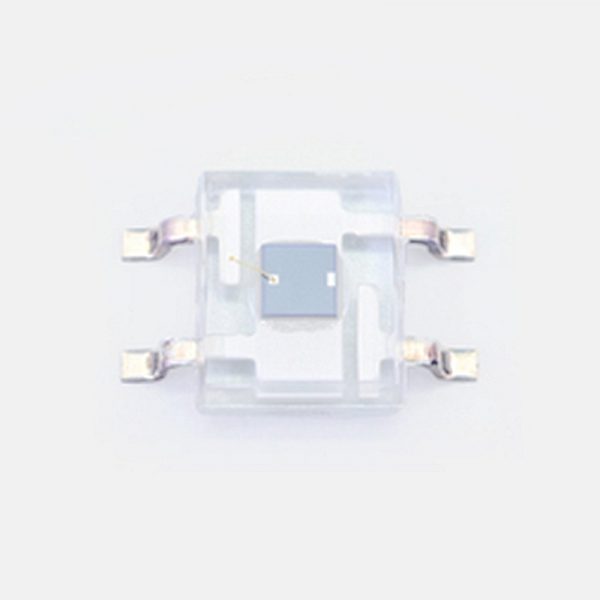

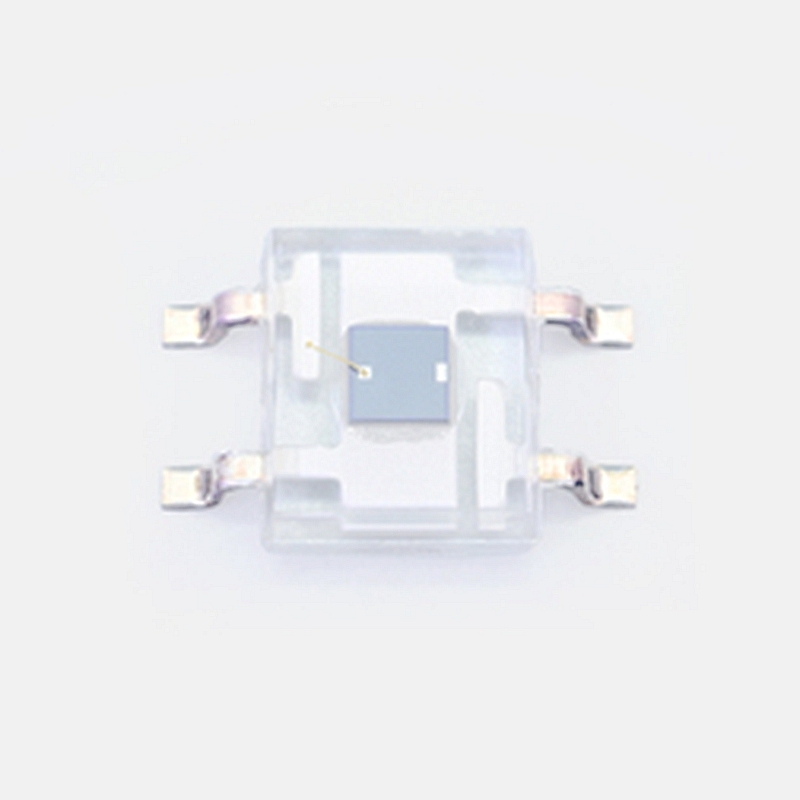

Hamamatsu S4011-06DS Photodiode molded into clear plastic package
Features
– Visible to near IR range
Specifications
| Photosensitive area | 1.3 × 1.3 mm |
|---|---|
| Package | Plastic |
| Package category | — |
| Cooling | Non-cooled |
| Reverse voltage (max.) | 10 V |
| Spectral response range | 320 to 1100 nm |
| Peak sensitivity wavelength (typ.) | 960 nm |
| Photosensitivity (typ.) | 0.58 A/W |
| Dark current (max.) | 10 pA |
| Rise time (typ.) | 0.5 μs |
| Terminal capacitance (typ.) | 200 pF |
| Measurement condition | Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted |
