Sale!

IR quartz cuvette(20mm)

$39.00

100 in stock

SKU: 33039171703 Category:

Description



  • Brand Name: purshee
  • Origin: CN(Origin)
  • Classification: Test Tube
Brand:purshee
Name:IR quartz cuvette
Volume:7ml
Path length:20mm
Technology:Solder frit bolding
Material:Japanese quartz glass
Transmittance:>80%(Paired testing)
Wavelength:300nm-3500nm

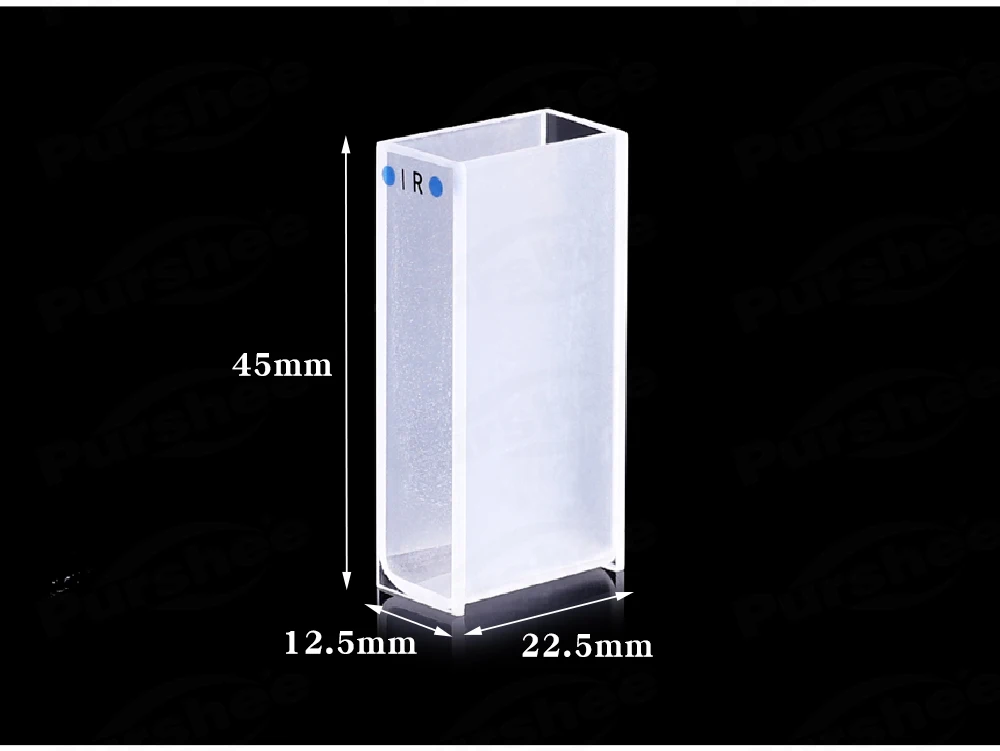

Outline dimension:12.5×22.5×45 mm
MATERIAL INTRODUCTION

Three types of quartz glass with different transmittance.

1、Ultraviolet quartz glass (JGS1), transmittance range 185nm-2500nm.

2、Visible light quartz glass (JGS2),transmittance range 300nm-800nm .

3、Infrared light quartz glass (JGS3),transmittance range 300nm-3500nm.

This product is made of(JGS3)It has good transmittance of visible light and infrared light.

It can be used in various specs of visible infrared spectrophotometer.



ATTENTION To The Use Of Cuvette

Cuvette, generally rectangular,

is made of frosted glass at the bottom and on two sides

(except fluorescence cuvette that light can penetrate four sides)

while the other two sides are light.

When taking cuvette, you can only use your fingers to contact both sides of the frosted glass or edge to avoid contact with the optical surface.

At the same time, be careful not to take too much power to prevent the breakage of cuvette.

Any solution containing corrosiveglass should not be placed in cuvette for a long time.

The light translucent surface of a cuvette shall not be contacted with the hard or the dirty. When the solution is filled, the height is at the 2/3 of the cuvette.

The optical surface, if there is a residual liquid, can be sored gently with a filter paper and then wiped with a lens paper or silk.
