Description

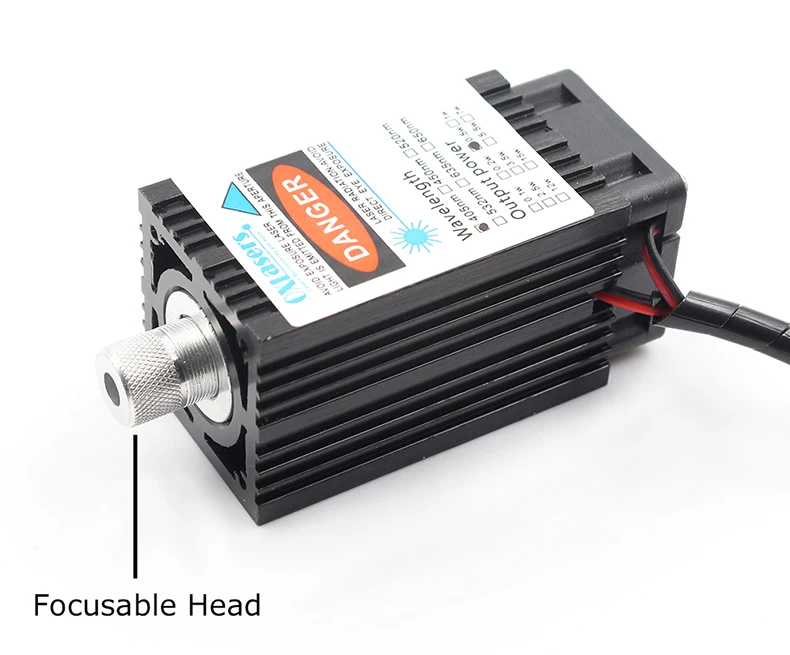

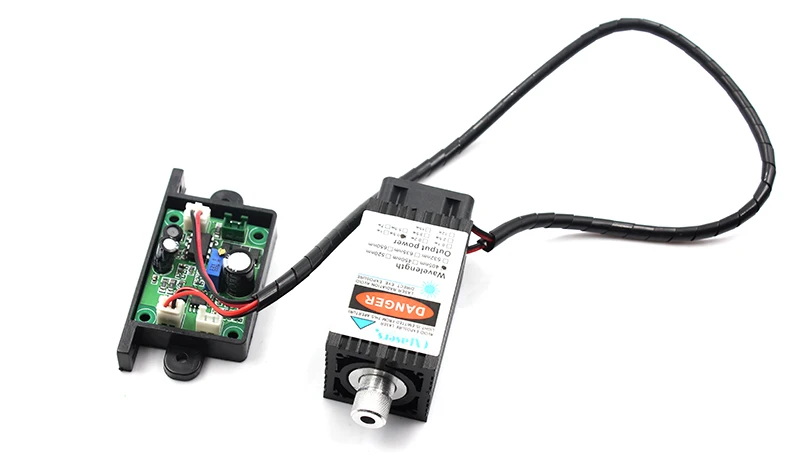

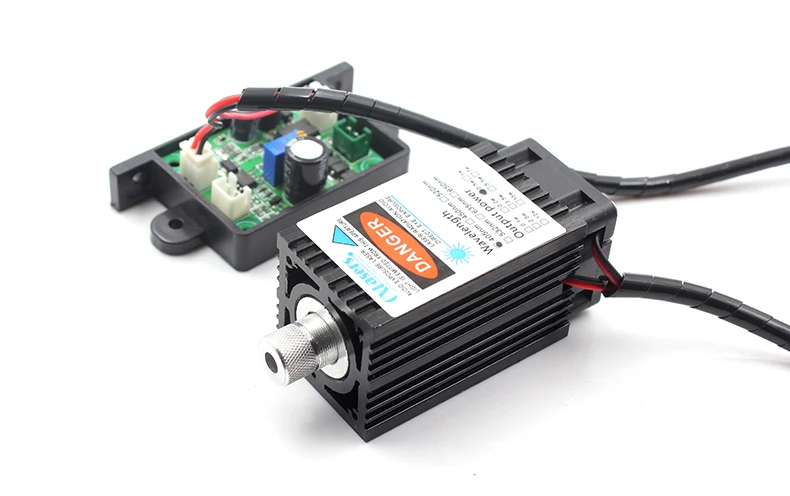

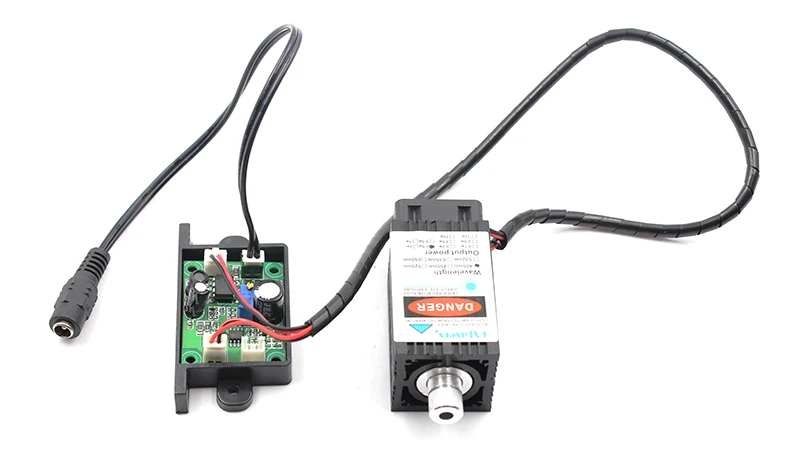

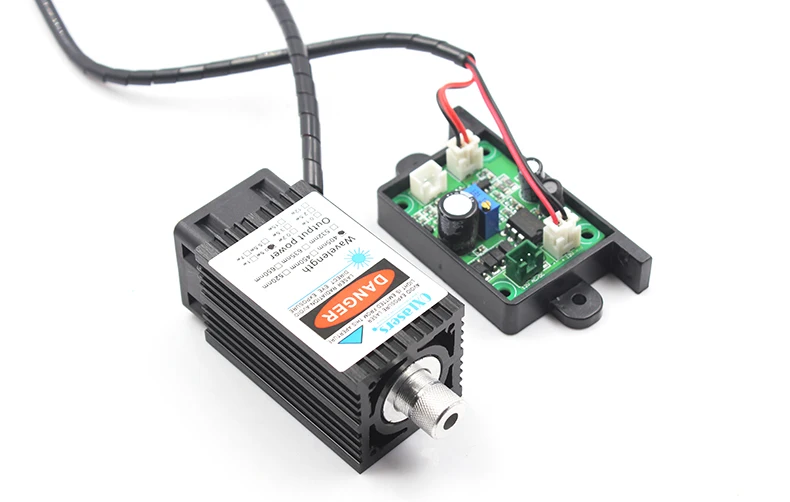

- Model Number: OX-4055X
Laser wavelength: 405nm UV laser
Spot type: retangular spot/dot (adjustable)
Output power: 500mW

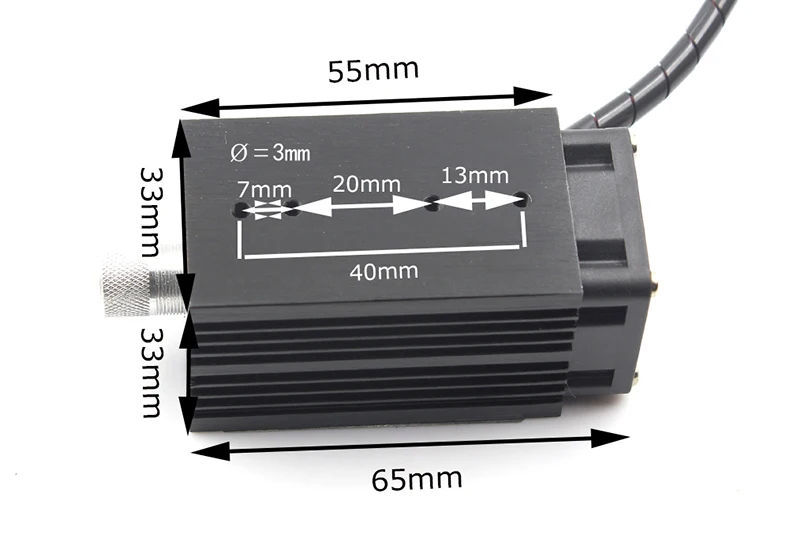

Size: 33*33*65mm(including Fan Size)
Cooling method: forced air cooling
Operating voltage: 12V DC

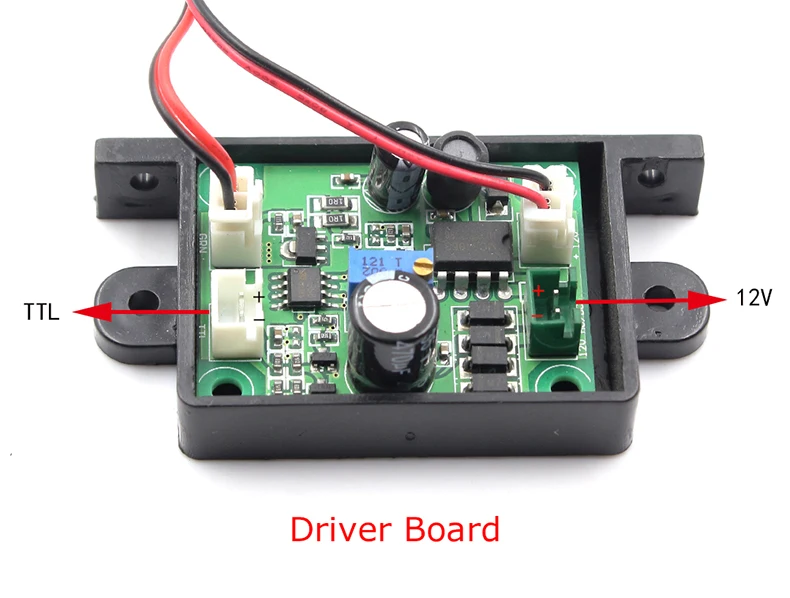

TTL/PWM:0-5V
We suggest you to add an extra fan on driver board !!!

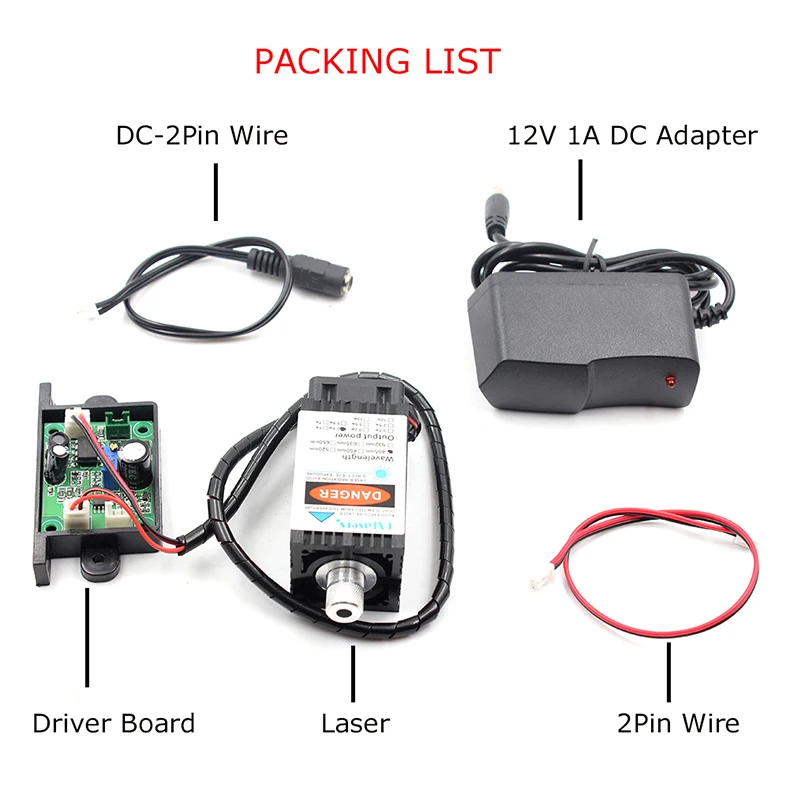

Packing List:
Laser*1
12V 1A Power Adapter*1
DC-2PIN Wire*1
2PIN Wire*1
Safety Glasses*1
Please add a fan when you engraving or cutting, in case smoke blur the lens damage the lens . Please pay attention to the + and – poles when you connecting wires!
