Sharp GH0521DE2G 520nm 130mW Green Laser Diode


SKU: 1005002938277710 Category: Tags: , , ,


Sharp Brand GH0521DE2G 520nm 130mW-135mW Green Laser Diode

  • Type: Laser Diode
  • Condition: New
  • is_customized: Yes
  • Max. Forward Current: 320mA
  • Max. Reverse Voltage: 2V
  • Package Type: TO-18, 5.6mm
  • Max Optical Output Power: 135mW
  • Wavelength: 515~530nm
  • Max Threshold Current: 95mA
  • Max Operating Voltage: 8V
  • Operating Temperature: -40~85℃

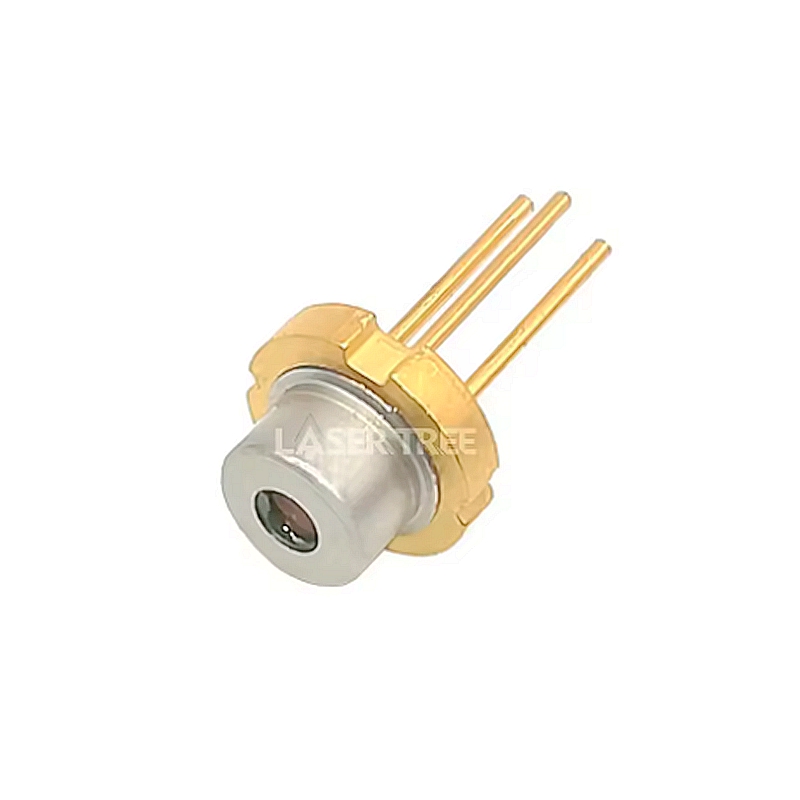

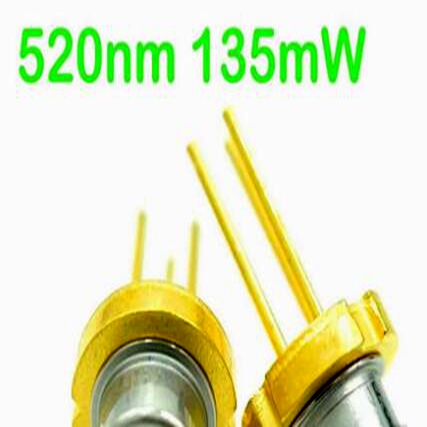

Brand new SHARP GH0521DE2G laser diode in 5.6mm housing with 130mW green @ 520nm.


Optical output power: 130mW @ Tcase 25°C
Typ. current: 270mA
Max. current: 320mA
Operating voltage> ca. 7V
Operating temp: -10° – 60°C
Wavelength: 520nm, +/- 5nm
Polarization ratio: 20:1
